Vacon OPTE6 User Manual page 39

OPTE6 layout and connections
A = CAN connector pin 3 (shield) connected to the drive chassis with a high-impedance RC circuit.
Recommended option when equipotential bonding is poor.
B = CAN connector pin 3 (shield) connected directly into the drive chassis. Recommended option
when equipotential bonding is good. (Factory default setting)
C = CAN connector pin 3 is not connected.
24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
1
2
3
A
2
1 3
B
2
1 3
C
9342.emf

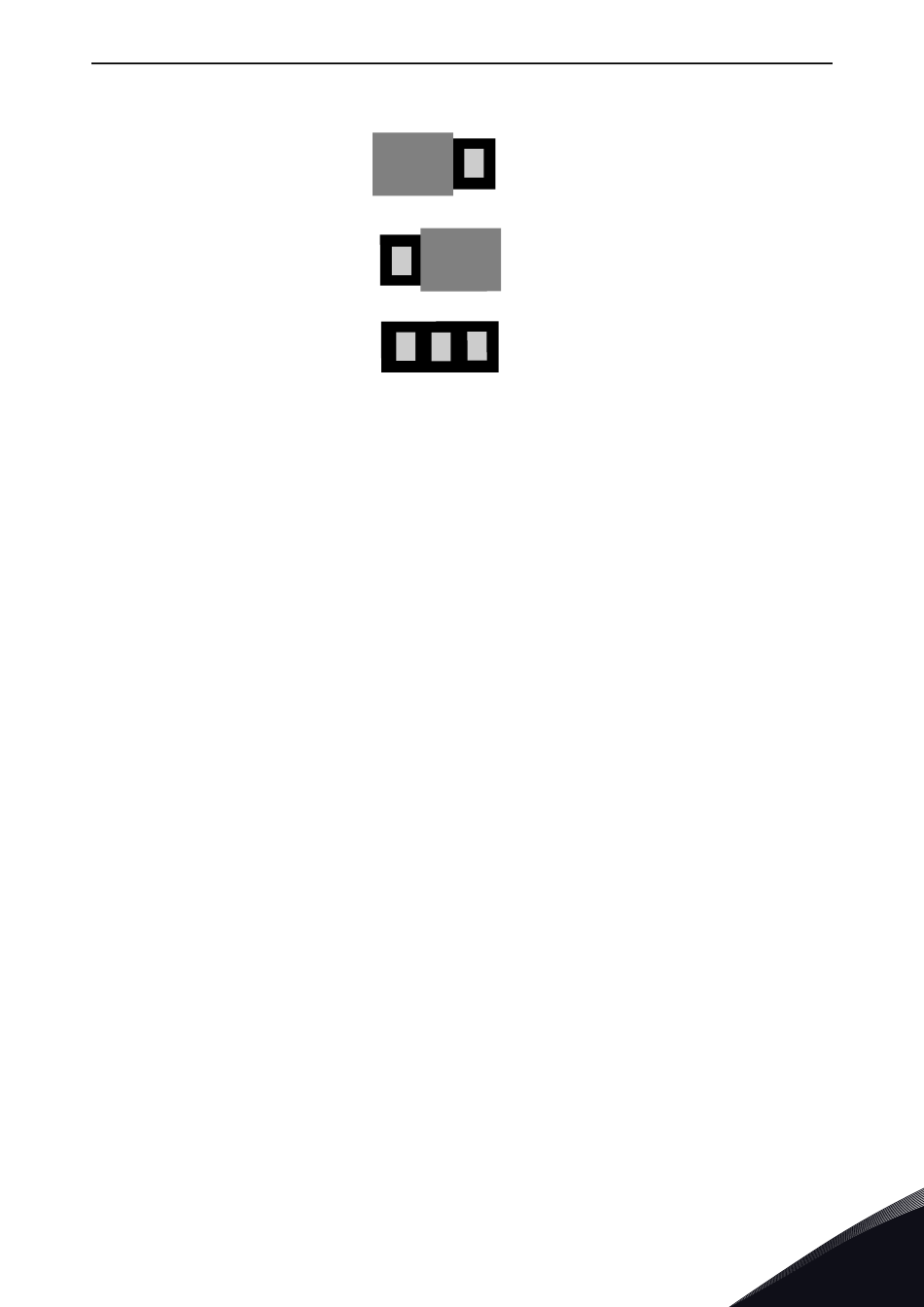

Figure 11. CAN shield grounding option
vacon • 37
