Installation

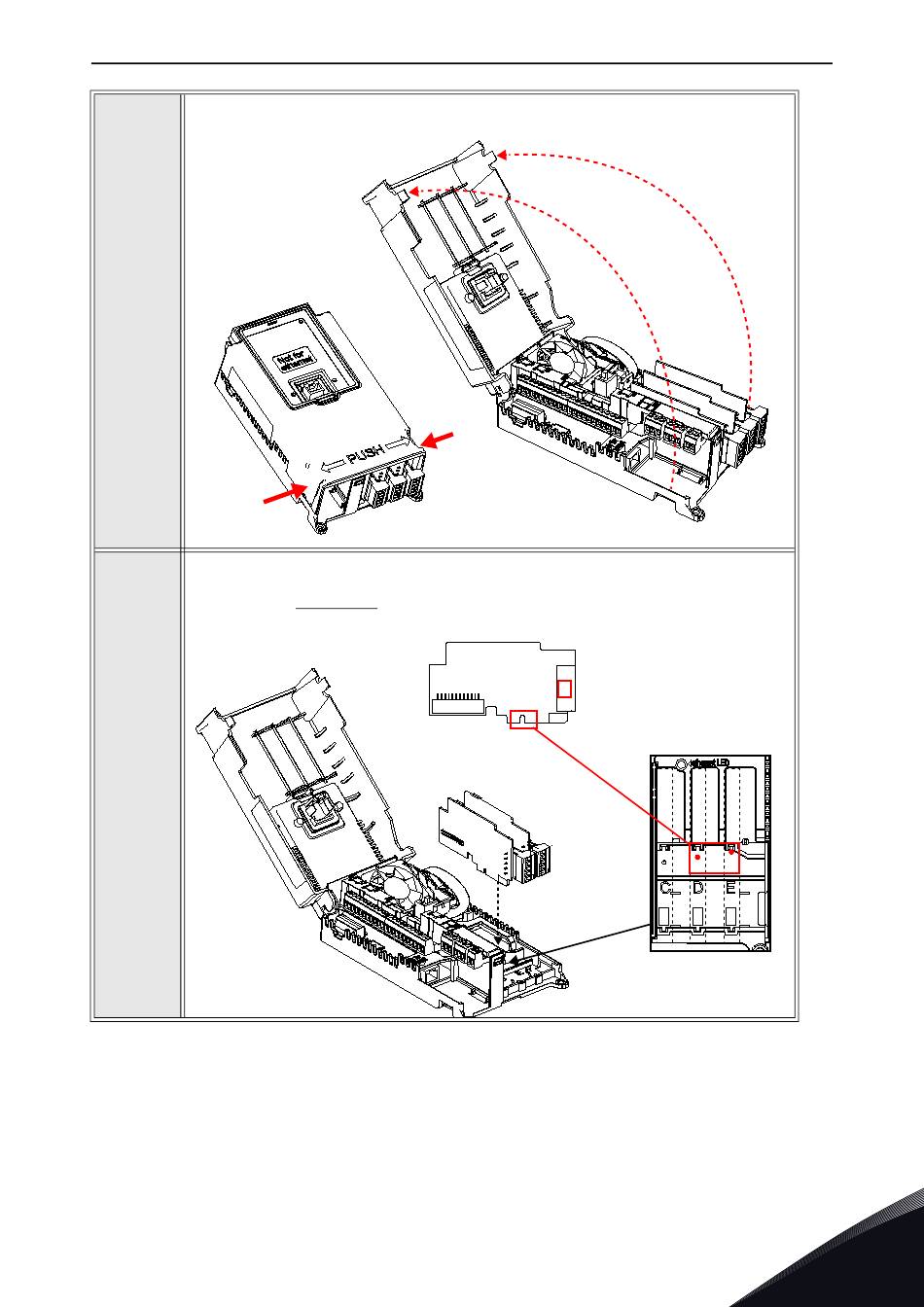

Open the inner cover to reveal the option board slots (C,D,E). See Figure below.
2
Install the fieldbus board into slot D or E. See figure below.
NOTE: Incompatible boards cannot be installed on the AC drive. Compatible
boards have a slot coding that enable the placing of the board.
3
24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
vacon • 39
3023.emf
D
E
3024.emf
6
