Exterior and Terminal Dimen...
VLT® AutomationDrive FC 302
1
2
8
8
M10
M10
15 (0.6)
15 (0.6)
19 (0.8)
18 (0.7)
35 (1.4)
38 (1.5)
1
Mains terminals
2
Motor terminals

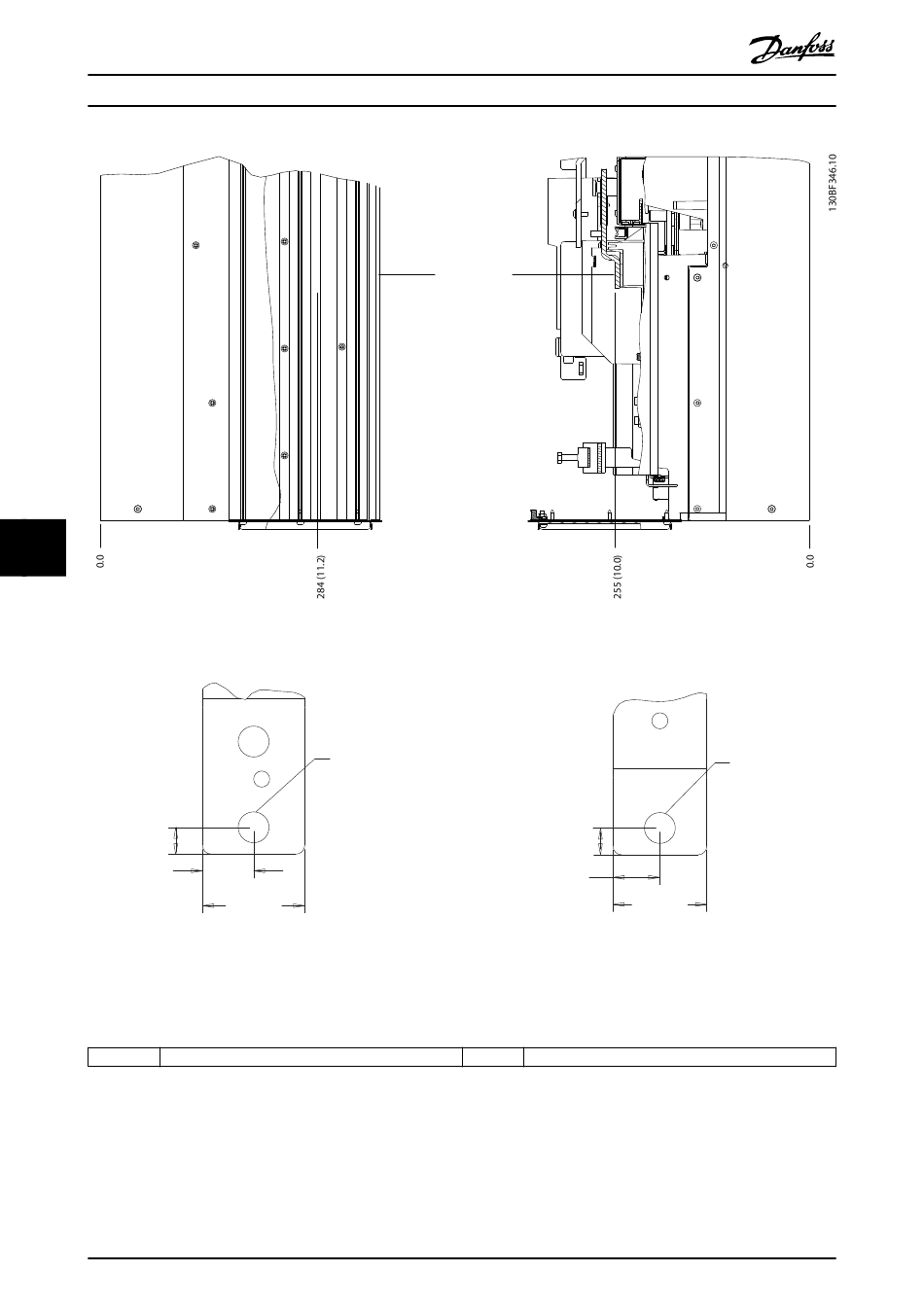

Illustration 8.14 D2h Terminal Dimensions (Side Views)
60
Danfoss A/S © 01/2018 All rights reserved.
MG38C202
