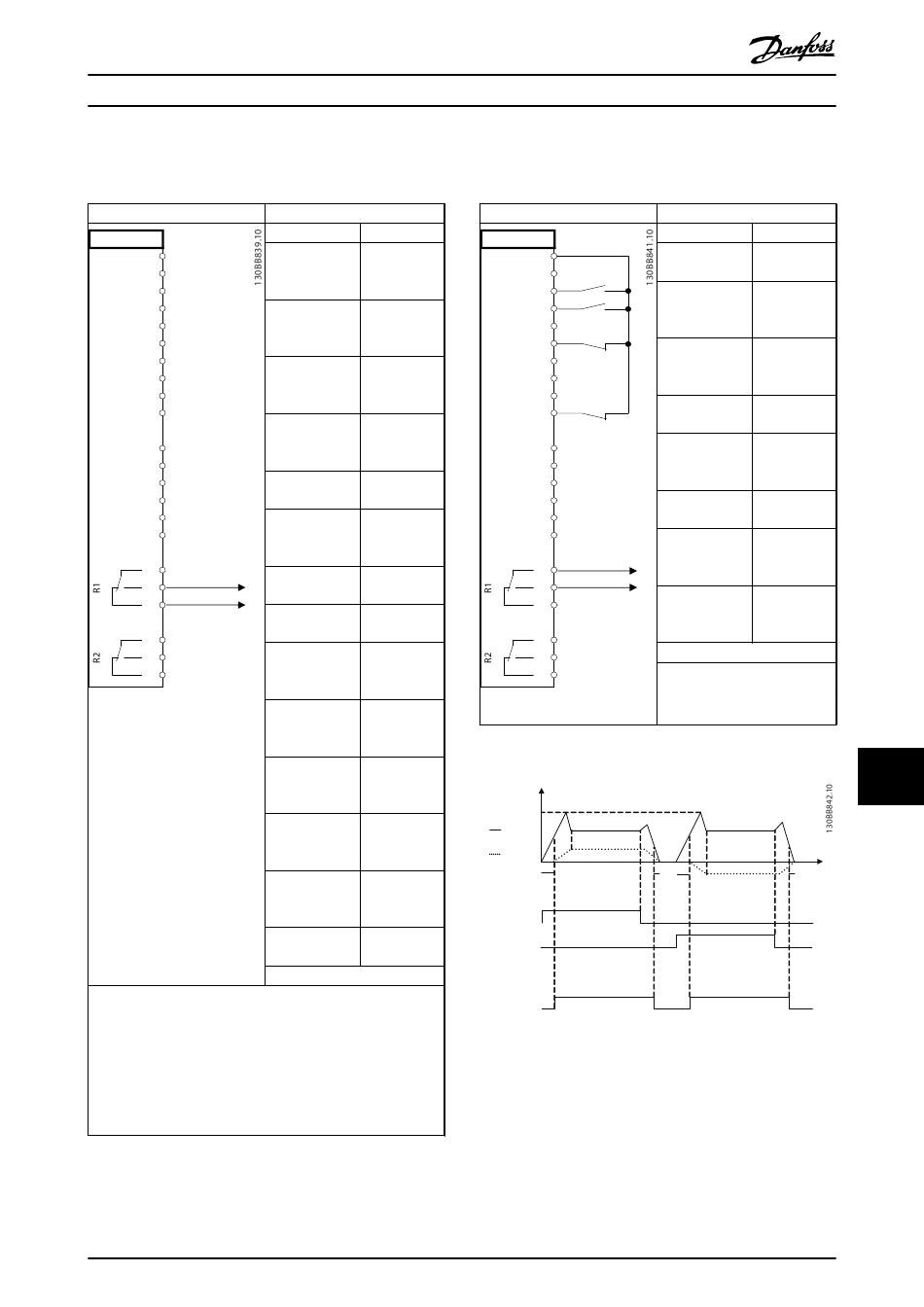

12.10 Wiring Configuration for a Relay Set-
up with Smart Logic Control
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
29
D IN
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
06
Notes/comments:
If the limit in the feedback monitor is exceeded, warning 90,
Feedback Mon. is issued. The SLC monitors warning 90, Feedback
Mon. and if the warning becomes true, relay 1 is triggered.
External equipment may require service. If the feedback error
goes below the limit again within 5 s, the drive continues and
the warning disappears. Reset relay 1 by pressing [Reset] on the
LCP.
Table 12.13 Wiring Configuration for a Relay Set-up with
Smart Logic Control
MG38C202
Design Guide
Parameters
Function Setting
Parameter 4-30 [1] Warning
Motor Feedback
Loss Function
Parameter 4-31 100 RPM
Motor Feedback
Speed Error
Parameter 4-32 5 s
Motor Feedback
Loss Timeout
Parameter 7-00 S [2] MCB 102
peed PID
Feedback Source
Parameter 17-11 1024*
Resolution (PPR)
Parameter 13-00 [1] On
SL Controller
Mode
Parameter 13-01 [19] Warning
Start Event
Parameter 13-02 [44] Reset key
Stop Event
Parameter 13-10 [21] Warning
Comparator no.
Operand
Parameter 13-11 [1] ≈ (equal)*
Comparator
Operator
Parameter 13-12 90
Comparator
Value
Parameter 13-51 [22]
SL Controller Comparator 0
Event
Parameter 13-52 [32] Set digital
SL Controller out A low
Action
Parameter 5-40 F [80] SL digital
unction Relay output A
*=Default value
Danfoss A/S © 01/2018 All rights reserved.
12.11 Wiring Configuration for Mechanical
Brake Control
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
29
D IN
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
06
Table 12.14 Wiring Configuration for Mechanical Brake Control
1-76
Current
Speed
1-71
Start (18)
Start
reversing (19)
Relay output
Open
Closed
Illustration 12.5 Mechanical Brake Control
Parameters
Function Setting
Parameter 5-40 F [32] Mech.
unction Relay brake ctrl.
Parameter 5-10 T [8] Start*
erminal 18
Digital Input
Parameter 5-11 T [11] Start
erminal 19 reversing
Digital Input
Parameter 1-71 S 0.2
tart Delay
Parameter 1-72 S [5] VVC+/
tart Function FLUX
Clockwise
Parameter 1-76 S
Im,n
tart Current
Parameter 2-20 Application
Release Brake dependent
Current
Parameter 2-21 Half of
Activate Brake nominal slip
Speed [RPM] of the motor
*=Default value
Notes/comments:
Time
2-21 1-71
2-21
189
