8.9.2 E1h Terminal Dimensions
6X
613 (24.1)
1
515 (20.3)
485 (19.1)
8
8
200 (7.9)
1
Mains terminals
2
Brake or regen terminals

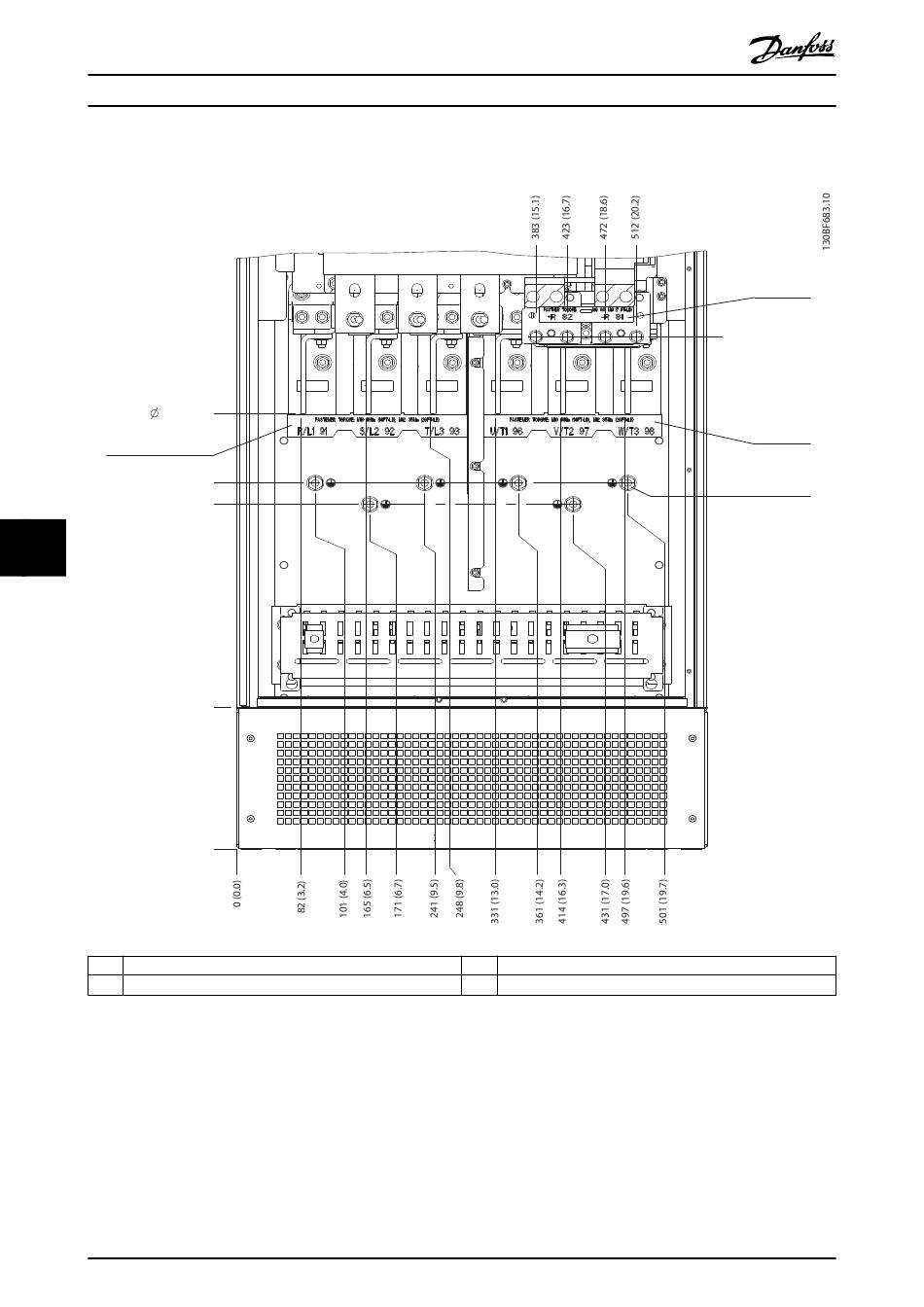

Illustration 8.74 E1h Terminal Dimensions (Front View)
116
0 (0.0)
Danfoss A/S © 01/2018 All rights reserved.
VLT® AutomationDrive FC 302
3
Motor terminals
4
Ground terminals, M10 nut
2
721 (28.4)
3
4
MG38C202
