Application Examples
(Parameter 5-12 Terminal 27 Digital Input [2]
Coasting Stop, Inverse).
•
Terminal 29 output
(Parameter 5-02 Terminal 29 Mode [1] Terminal 29
Mode Output and parameter 5-31 Terminal 29
Digital Output [27] Torque limit & stop).
•
Relay output [0] (Relay 1)
(Parameter 5-40 Function Relay [32] Mechanical
Brake Control).
12 13 18 19 27 29 32
Start
-
External
24 V DC
+
Mechanical brake
connection

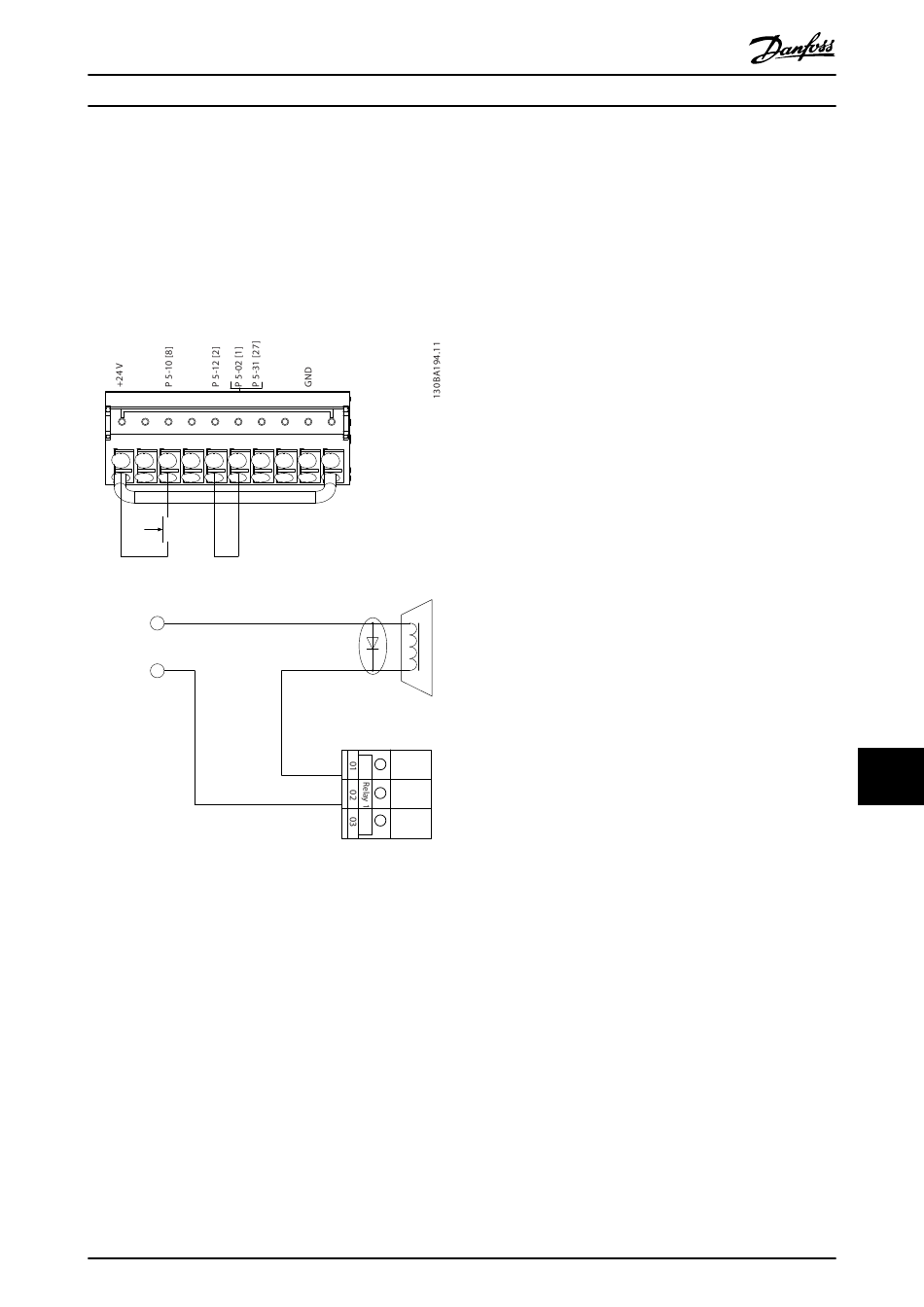

Illustration 12.8 Wire Configuration for Torque and Stop Limit
MG38C202
Design Guide
33 20 37
I 0.1 Amp
max
P 5-40 [0] [32]
