Danfoss VLT AutomationDrive FC 302 Design Manual page 32
90–710 kw, enclosure sizes d and e
Hide thumbs
Also See for VLT AutomationDrive FC 302:
- Installation manual ,
- Programming manual (347 pages) ,
- Instruction manual (174 pages)
Table of Contents
Advertisement
Product Features
5.7.2 Airflow for E1h–E4h Enclosures
5
5

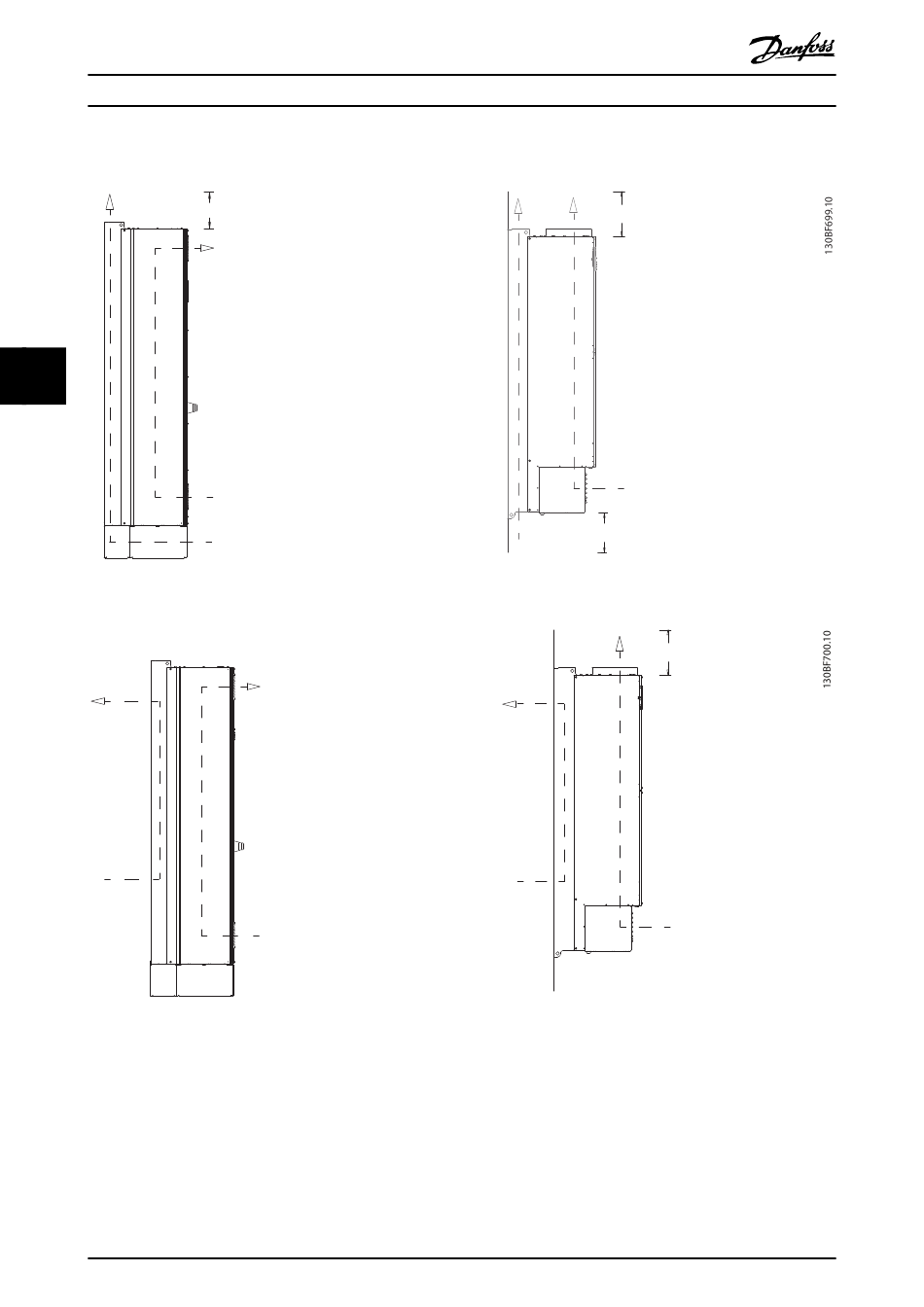

Illustration 5.12 Standard Airflow Configuration for E1h/E2h (Left) and E3h/E4h (Right)
Illustration 5.13 Optional Airflow Configuration Through the Back Wall for E1h/E2h (Left) and E3h/E4h (Right)
30
VLT® AutomationDrive FC 302
225 mm (8.9 in)
Danfoss A/S © 01/2018 All rights reserved.
225 mm (8.9 in)
225 mm (8.9 in)
225 mm (8.9 in)
MG38C202
