Allen-Bradley PowerFlex 20-COMM-P FRN 1 Series User Manual page 47

Station 1 is configured as follows:
Module
Ctrl/Stat & Ref Fdbk
Datalink A
Datalink B
Datalink C
Datalink D
Parameter Access
Note that Station 1 occupies 14 words (0-13).
30. The same steps for configuring Station 1 will be used for configuring
Station 2. Refer to previous steps (starting at step #9,
Configuring the SST-PFB-SLC Profibus Scanner-Station 2. (See
Figure 4.31.)

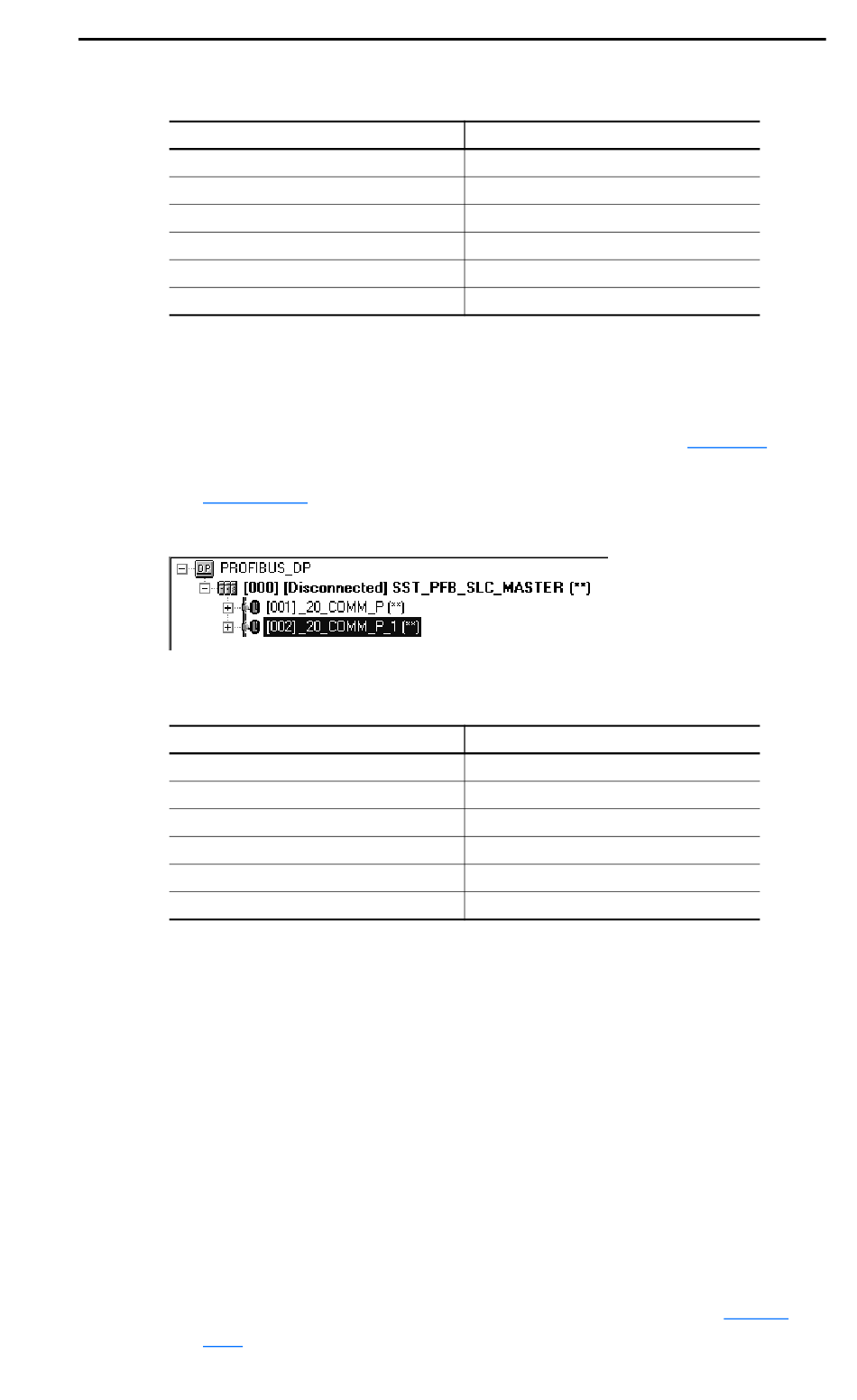

Figure 4.31 Station 2 Network window
Station 2 is configured as follows:
Module
Ctrl/Stat & Ref Fdbk
Datalink A
Datalink B
Datalink C
Datalink D
Parameter Access
Note that Station 2 occupies 14 words (14-27).
31. Use the null modem cable that came with the scanner to connect
COM1 on the PC and the CONFIG RS232 port on the scanner.
Note: The processor needs to be in program mode before
proceeding.
32. Right-click on the scanner in the network window and select
"Connect". Then right-click again on the scanner in the network
window and select "Load Configuration". If a minimum cycle time
attention window pops up, click OK to continue. After the
configuration has been loaded into the scanner, "Configured
Program" will be displayed in the message window. (See
4.32.)
Configuring the Profibus Scanner
M1/M0 Word
0
2
4
6
8
10
M1/M0 Offset
14
16
18
20
22
24
4-17
Page 4-7) for
Figure
