4-6 Configuring the Profibus Scanner
1. Click on the (+) sign of the Masters folder in the Library window to
open the SST sub-folder. Available DP masters are displayed in this
sub-folder.
2. Click on the (+) sign of the Slaves folder in the Library window and
the Allen-Bradley sub-folder to display the available DP slaves or
the 20-COMM-P slave. Refer to
3. Double-click the SST-PFB-SLC MASTER in the Masters folder in
the Library window to add the scanner to the network.
4. A user-defined Name and Description can be given to the scanner.
In our example, the scanner will be Station 0 on the network, as
shown in

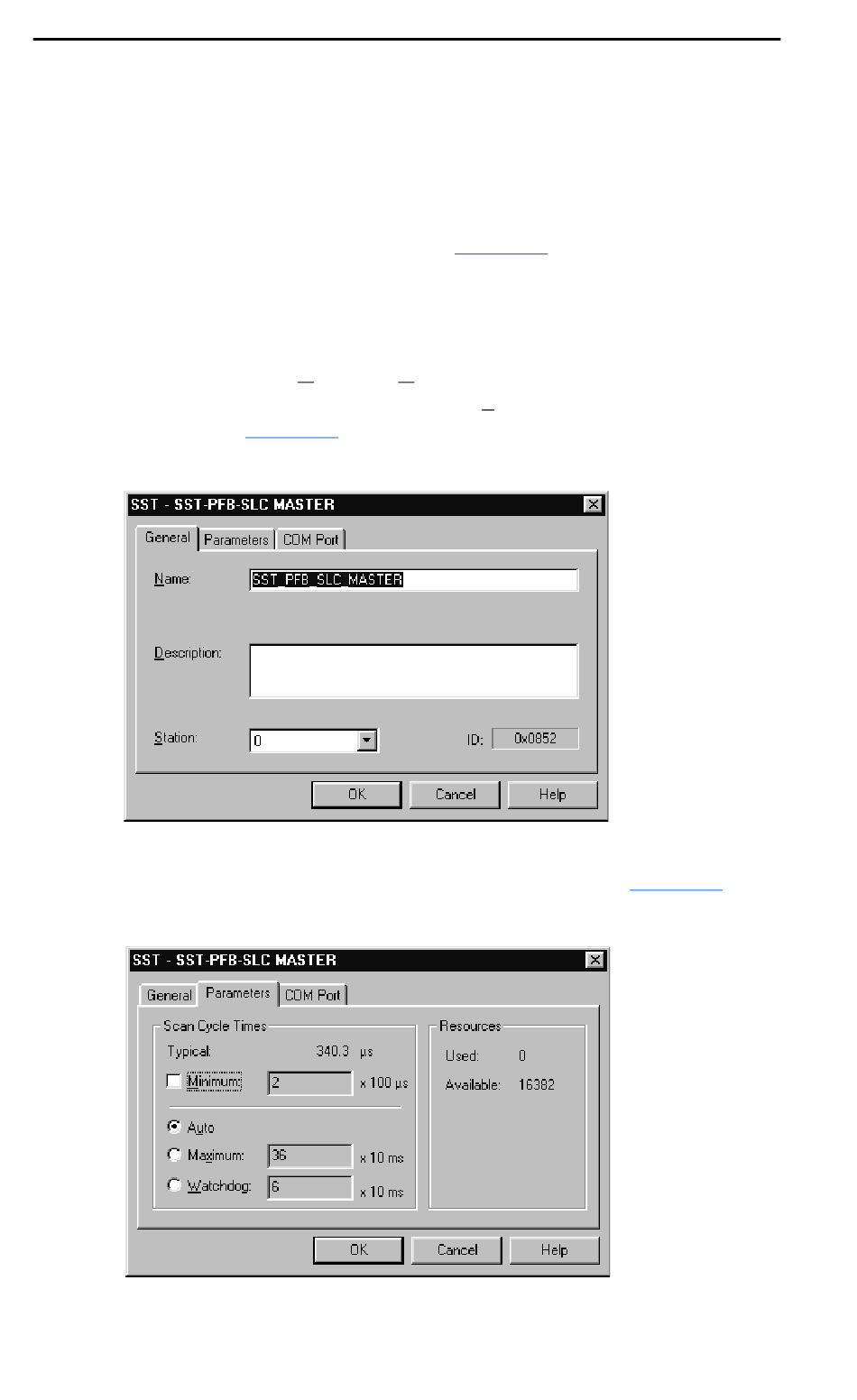

Figure 4.7 SST-SST-PFB-SLC Master (General) Dialogue Box.
5. Click on the Parameters tab to view the Scan Cycle Times.
In our example, use the default settings as shown in
Figure 4.8 Scan Cycle Times Dialogue Box
Connection and Baud Rate settings configure how the software tool will
communicate with the CONFIG RS232 port on the scanner.
Figure 4.7.
Figure 4.6.
Figure 4.8.
