6. Click on the (+) sign of the Slaves folder as shown in

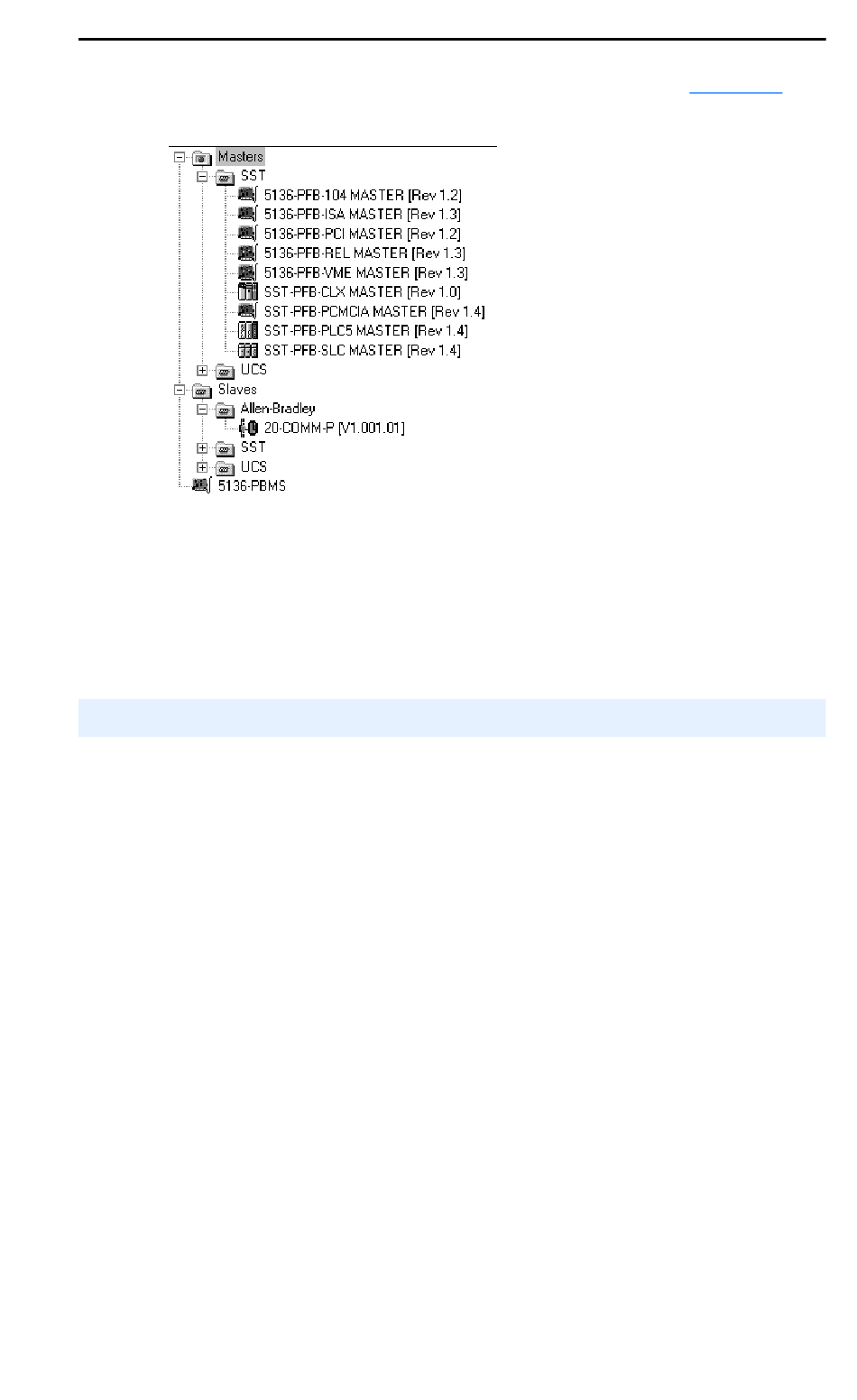

Figure 4.6 Masters/Slaves Library window
The software tool will automatically create an Allen-Bradley sub-folder
(in the Slaves folder) if it does not already exist. The 20-COMM-P is
now shown in the library and the software tool is now ready to configure
a 20-COMM-P on a PROFIBUS network.
Configuring the SST-PFB-SLC Profibus Scanner
The following steps are performed to configure the SST-PFB-SLC
scanner using the SST PROFIBUS Configuration Software Tool. In our
example, the PROFIBUS network will consist of a SLC
master and two PowerFlex 70 drives. The ladder examples in the manual
will utilize the following configuration:
•
Logic Command / Status and Reference / Feedback enabled
•
Datalink A enabled
•
Datalink B enabled
•
Datalink C enabled
•
Datalink D enabled
•
Parameter Access enabled (used to perform explicit messaging)
The SLC processor must be in Program mode to configure the scanner.
