Installation Instructions
Original Instructions
Compact 5000 I/O EtherNet/IP Adapters
Catalog Numbers 5069-AENTR, 5069-AENTRK, 5069-AEN2TR
Topic
The Compact 5000™ I/O EtherNet/IP adapters perform the following functions:
• Facilitate high-speed data transfer across an EtherNet/IP network between Compact 5000 I/O modules and a Logix 5000™ controller.
• Provide system-side and field-side power to Compact 5000 I/O modules.
• Support as many as 31 Compact 5000 I/O modules
The adapters are configured with the Studio 5000 Logix Designer® application. For more information on how to use Compact 5000 I/O
EtherNet/IP adapters, including the compatible Logix 5000 controllers and Logix Designer application versions, see the publications that are listed
in
Additional Resources on page
Summary of Changes
The publication has been changed as follows:
• Add Waste Electrical and Electronic Equipment (WEEE) information on
• Add information about how to install an end cap on
• Update the SA power and SA power Passthrough specification for the 5069-AENTR, and 5069-AENTRK adapters on
20.
page
Page
5
6
9
10
10
13
17
17
18
18
19
20
page
3.
17.
page
19.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5069-AENTR and is the answer not in the manual?

Questions and answers

Related Manuals for Allen-Bradley 5069-AENTR

Summary of Contents for Allen-Bradley 5069-AENTR

  • Page 1: Table Of Contents

    • Add Waste Electrical and Electronic Equipment (WEEE) information on page • Add information about how to install an end cap on page • Update the SA power and SA power Passthrough specification for the 5069-AENTR, and 5069-AENTRK adapters on page...
  • Page 2 Compact 5000 I/O EtherNet/IP Adapters ATTENTION: Read this document and the documents listed in the Additional Resources section about installation, configuration and operation of this equipment before you install, configure, operate or maintain this product. Users are required to familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards. Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be carried out by suitably trained personnel in accordance with applicable code of practice.
  • Page 3 • The 5069-AEN2TR EtherNet/IP adapter complies to standards: EN 60079-0:2012+A11:2013, EN 60079-15:2010 when used at or below 125V AC, reference certificate number DEMKO 15 ATEX 1455X. • The 5069-AENTR and 5069-AENTRK EtherNet/IP adapter complies to standards: EN 60079-0:2012+A11:2013, EN 60079-15:2010, reference certificate number DEMKO 16 ATEX 1758X.
  • Page 4 • The 5069-AEN2TR EtherNet/IP adapter complies to standards IEC 60079-0:6th Edition, IEC-60079-15:4th Edition when used at or below 125V AC, reference IECEx certificate number IECEx UL 15.0007X. • The 5069-AENTR and 5069-AENTRK EtherNet/IP adapter complies to standards IEC 60079-0:6th Edition, IEC-60079-15:4th Edition, reference IECEx certificate number IECEx UL 16.0124X.

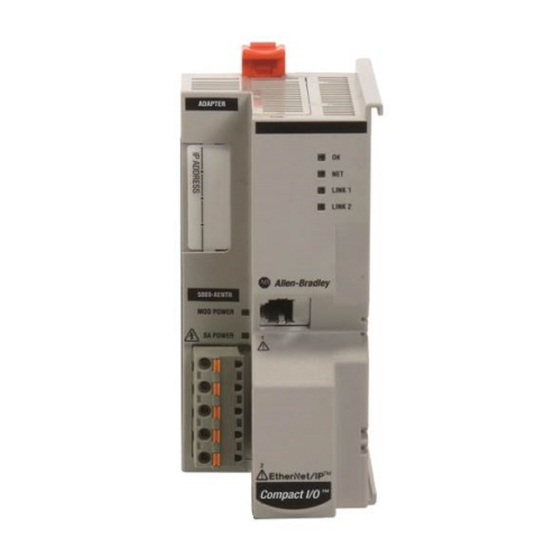

  • Page 5: About The Adapters

    Rockwell Automation does not assume responsibility or liability for actual use based upon the examples shown in this publication. About the Adapters 5069-AENTR (5069-AENTRK) Adapter 5069-AEN2TR Adapter DIN Rail Latch Status Indicators...

  • Page 6: Install A Compact 5000 I/O System

    Compatible zinc-plated, chromate-passivated steel DIN rail. You can use the following DIN rails: DIN rail • EN50022 - 35 x 7.5 mm (1.38 x 0.30 in.) • EN50022-35 x 15 mm (1.38 x 0.59 in.) - 5069-AENTR and 5069-AENTRK only EtherNet/IP network You must install the network and all required components.
  • Page 7 (5.43 in.) for adequate ventilation. Compact 5000™ I/O Adapter Side Side Vertical Mounting 136.81 mm Compact 5000 I/O Only the 5069-AENTR and (5.39 in.) 5069-AENTRK adapters Compact 5000 I/O support vertical mounting. Bottom End cap 130.31 mm (5.13 in.) Rockwell Automation Publication 5069-IN003E-EN-P - October 2018...
  • Page 8 You can use the following DIN rails with the adapters: (4.84 in.) (5.21 in.) • EN50022 - 35 x 7.5 mm (1.38 x 0.30 in.) • EN50022 - 35 x 15 mm (1.38 x 0.59 in.) - 5069-AENTR and 5069-AENTRK only Compact 5000™ I/O System Power Considerations 105.30 mm...

  • Page 9: Set The Network Internet Protocol (Ip) Address

    • RSLinx Classic software • 5069-AENTR and 5069-AENTRK - The left-most switch For more information on how to use software to set the IP address, see represents the first digit in the octet, the middle switch...

  • Page 10: Install The Adapter Onto The Din Rail

    The MOD power RTB is used only on the 5069-AEN2TR adapter. 1. Hook the bottom of the MOD power RTB on the adapter. 5069-AENTR and 5069-AENTRK Adapters 2. Push the RTB against the adapter until the RTB clicks into place.
  • Page 11 Compact 5000 I/O EtherNet/IP Adapters 4. Connect the 24V DC(—) wire from the external power supply Connect MOD Power to the 5069-AEN2TR Adapter to the first — terminal. Before you connect an external power source to the MOD power RTB, make sure that the MOD power source is properly sized.
  • Page 12 Compact 5000 I/O EtherNet/IP Adapters 5. Connect a wire from an earth ground location to the Connect SA DC Power to the 5069-AEN2TR Adapter first terminal on the RTB. The earth ground location can Before you connect an external DC power source to the SA power RTB, make sure that the SA power source is adequately sized.

  • Page 13: Connect Power To The 5069-Aentr Or 5069-Aentrk Adapter

    5069-RTB6-SCREW RTB 5069-RTB6-SPRING RTB Connect Power to the 5069-AENTR or 5069-AENTRK Adapter Before you connect MOD power or SA power to a 5069-AENTR or 5069-AENTRK adapter, complete the following tasks: • Read System Power Considerations on page • Confirm that the external power supplies that supply MOD power and SA power are adequately sized for your Compact 5000 I/O system.
  • Page 14 If you install the power control device at the VDC-terminal, the adapter can fail to power up or power down properly. IMPORTANT The Power RTB is used only on the 5069-AENTR or 5069-AENTRK adapter. WARNING: If you connect or disconnect wiring while the field- 1.
  • Page 15 5069-RTB5-SCREW RTB 5069-RTB5-SPRING RTB 5069-RTB5-SCREW RTB 5069-RTB5-SPRING RTB 5. Connect a wire from an earth ground location to Connect SA DC Power to the 5069-AENTR or 5069-AENTRK terminal on the RTB. Adapter RTB Type Action Before you connect an external power source to the Power RTB terminals that are used for SA power, make sure that the power source 1.
  • Page 16 Compact 5000 I/O EtherNet/IP Adapters Connect SA AC Power to the 5069-AENTR or 5069-AENTRK 5. Connect a wire from an earth ground location to the Adapter terminal on the RTB. Before you connect an external power source to the Power RTB...

  • Page 17: Connect The Adapter To An Ethernet/Ip Network

    Interlocking 2. Connect the RJ45 cable to an Ethernet port on the bottom of Pieces the adapter. You can connect two RJ45 cables to the adapter. 5069-AENTR and Install Compact 5000 I/O Modules End Cap 5069-AENTRK Install Compact 5000 I/O modules on the right side of the adapter.

  • Page 18: Power The System

    MOD power RTB and the SA power RTB on the unit while power is applied. Interruption of the 5069-AEN2TR adapter or the Power RTB on the 5069-AENTR or backplane can result in unintentional operation or 5069-AENTRK adapter.

  • Page 19: Specifications

    This table includes a subset of specifications for the adapter. For full specifications, see the Compact 5000 I/O Modules and EtherNet/IP Adapters Technical Data, publication 5069-TD001. Attribute 5069-AEN2TR 5069-AENTR, 5069-AENTRK Temperature, operating 0 °C < Ta < +60 °C • IEC 60068-2-1 (Test Ad, Operating Cold) •...

  • Page 20: Additional Resources

    Rockwell Automation maintains current product environmental information on its website at http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page. Allen-Bradley, Compact 5000, Logix 5000, Rockwell Automation, Rockwell Software, RSLinx, and Studio 5000 Logix Designer are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies.
