Installation Instructions

Motor Feedback Breakout Board
Catalog Number 2071-TBMF

Breakout Board Features

7
2
Item
Description
1
Mounting screw (x2)
2
Tie wrap
3
13 mm (0.5 in.) exposed cable shield
4
Feedback cable
(1)
Battery connections are required for TL-Series motors/actuators with multi-turn absolute feedback.
Tie wrap, battery, and feedback cable are supplied by customer.

Breakout Board Specifications

Attribute
Screw-terminal wire range
Strip length
Screw-terminal torque value
Optional battery
Mounting-screws torque value
6
Value
1.5...0.2 mm
5...6 mm (0.20...0.24 in.)
28.2 N•cm (2.5 lb•in)
3.6V, ½ AA, nonrechargeable, lithium battery
28.2 N•cm (2.5 lb•in)
1
2
Item
Description
5
Ground pad
6
Terminal block
7
Battery
2
(16...24 AWG)
3
4
5
(1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2071-TBMF and is the answer not in the manual?

Questions and answers

Summary of Contents for Allen-Bradley 2071-TBMF

  • Page 1: Installation Instructions

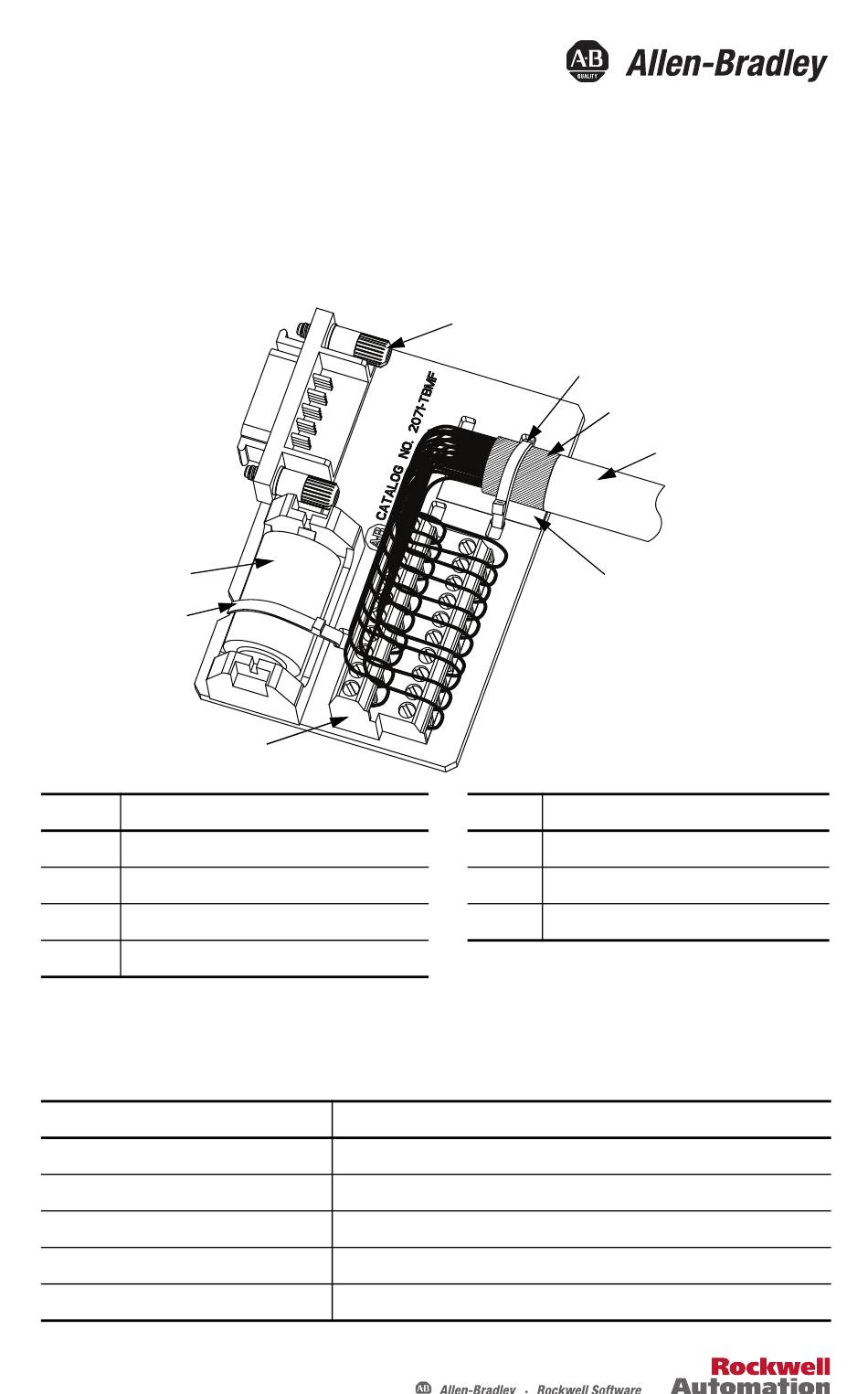

    Installation Instructions Motor Feedback Breakout Board Catalog Number 2071-TBMF Breakout Board Features Item Description Item Description Mounting screw (x2) Ground pad Tie wrap Terminal block 13 mm (0.5 in.) exposed cable shield Battery Feedback cable Battery connections are required for TL-Series motors/actuators with multi-turn absolute feedback.
