Configuring the Profibus Scanner

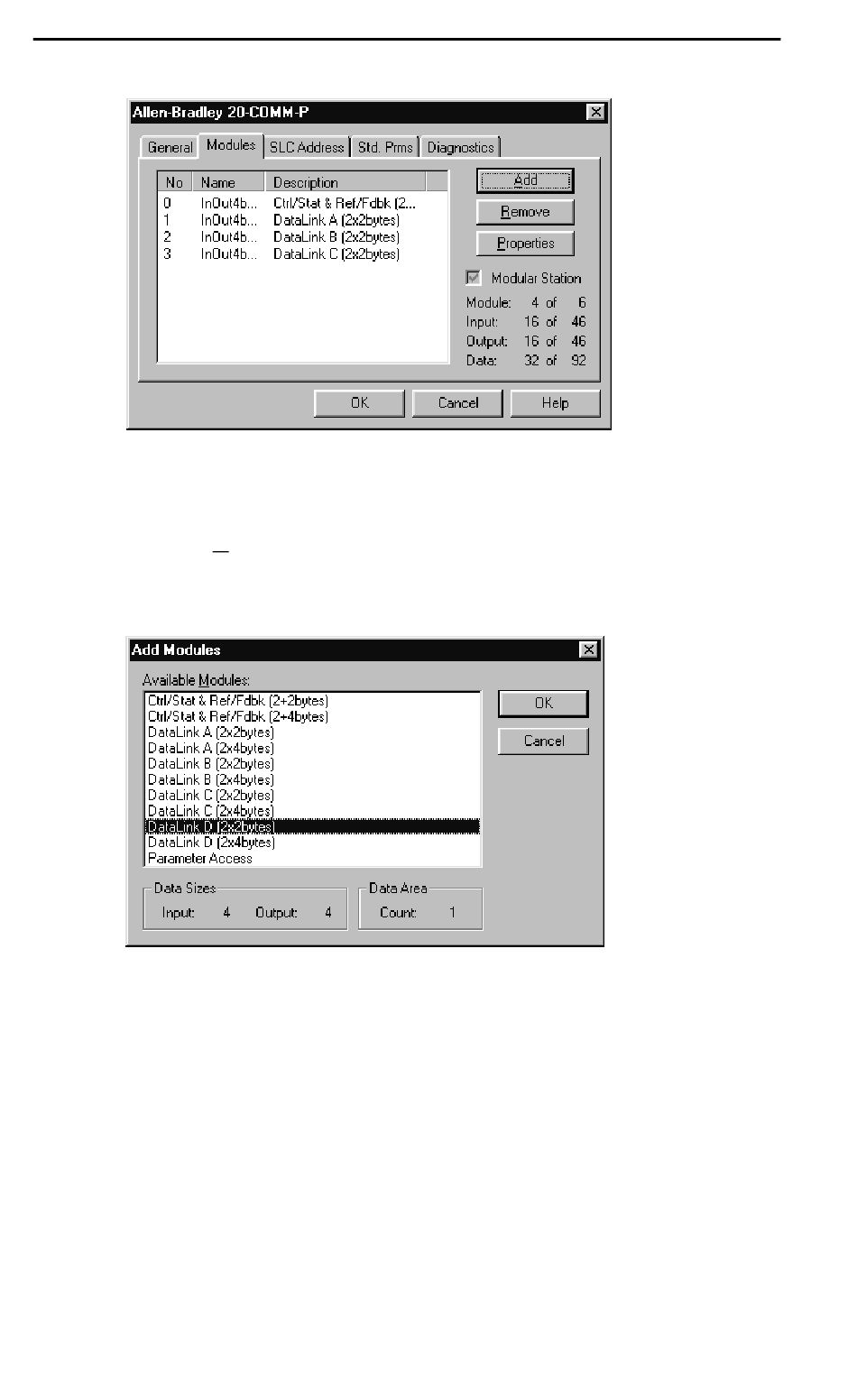

Figure 4.20 Modules: Datalink C Viewing Window

Station 1 will also be configured to use Datalinks D1 and D2.

The PowerFlex 70 utilizes 16-bit Datalinks.

19. Click Add to continue adding modules. Select "Datalink D (2x2

bytes)" and click OK.

Figure 4.21 Add Modules: Datalink D Selection Window

20. The "Datalink D" module has now been added.

Station 1 will also be configured to use Parameter Access for explicit

messaging.
