SLC Ladder Logic Example - Station 2 Program

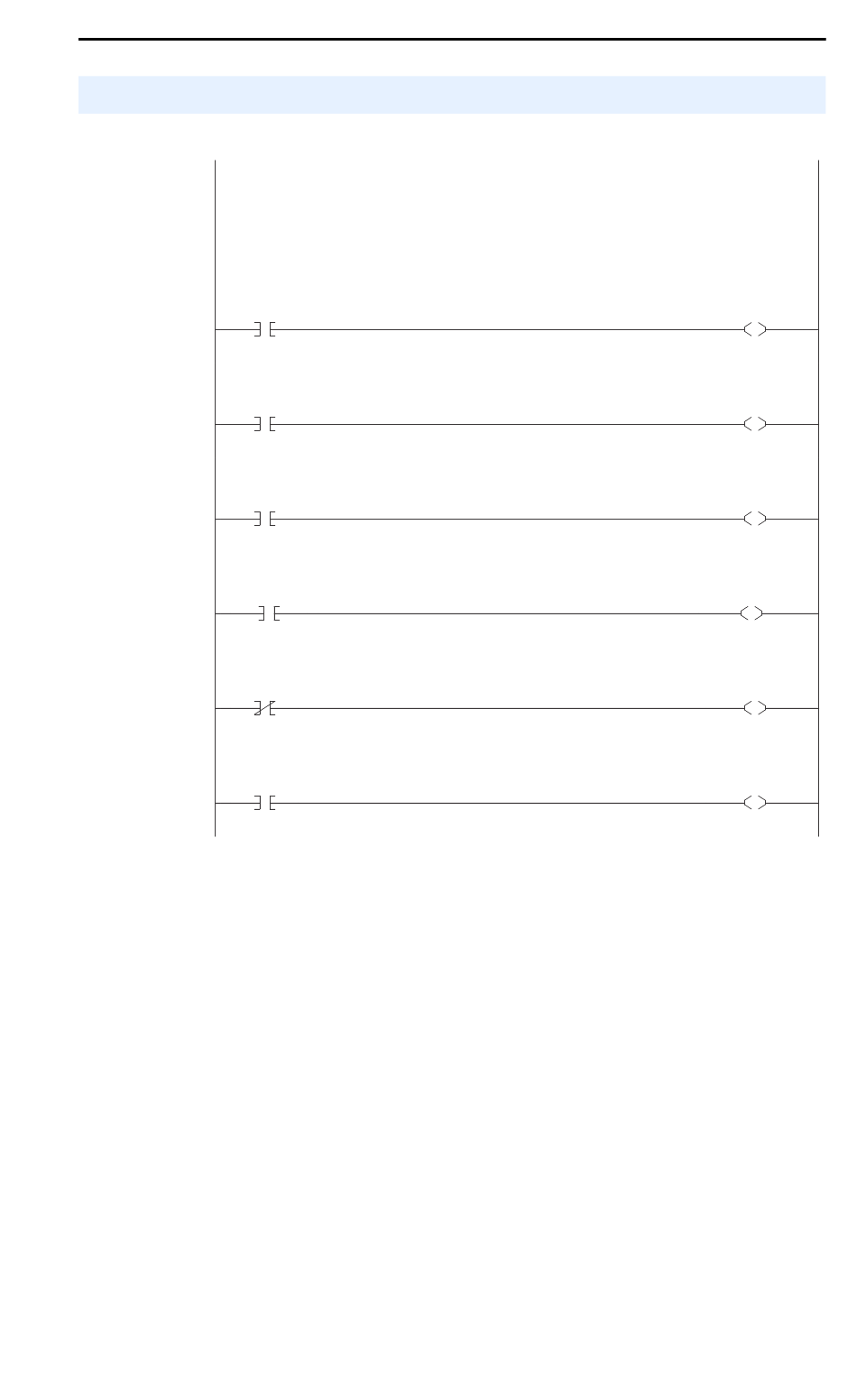

Figure 5.7 Example SLC Ladder Logic - Station 2 Program
Controlling the Logic Command word in the drive. B3:21 /* bits are controlled elsewhere in the user program.
Station 2
Start
Command
B3:21
0000
1
Station 2
Stop
Command
B3:21
0001
0
Station 2
Jog
Command
B3:21
0002
2
Station 2
Clear Faults
Command
B3:21
0003
3
Station 2
Reverse
Command
B3:21
0004
4
Station 2
Reverse
Command
B3:21
0005
4
Using I/O Messaging
Station 2
Logic Command
START
Station 2
Logic Command
STOP
Station 2
Logic Command
JOG
Station 2
Logic Command
CLEAR FAULTS
Station 2
Logic Command
FORWARD
Station 2
Logic Command
REVERSE
5-17
N20:14
1
N20:14
0
N20:14
2
N20:14
3
N20:14
4
N20:14
5
