6. Click on the COM Port tab.
7. Accept the settings in our example (COM1 on the PC @ 115200 bps
baud rate), as shown in

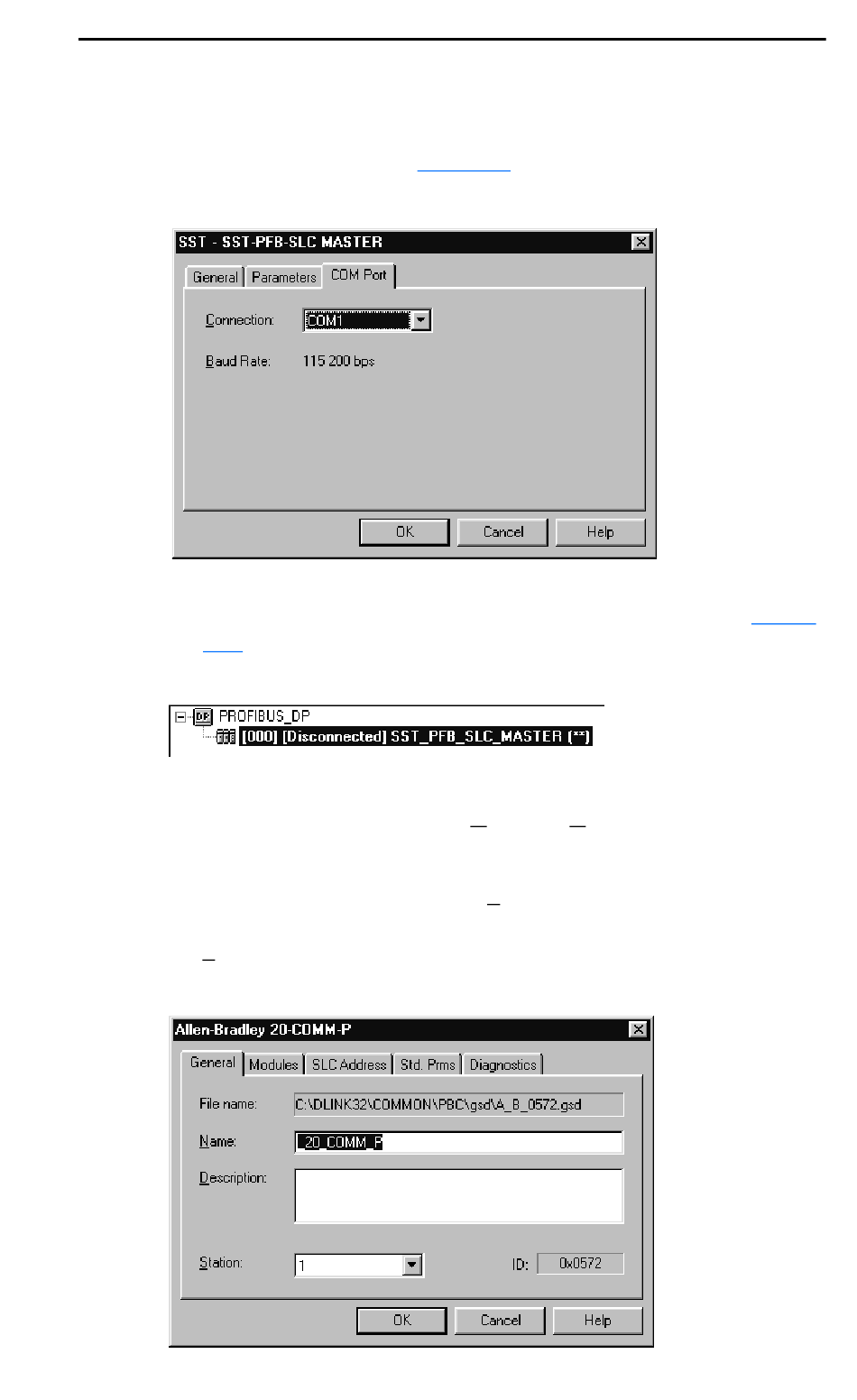

Figure 4.9 COM Port Default Settings
8. The scanner will appear in the network window as shown in
4.10. Double-click on the scanner in the network window.
Figure 4.10 Scanner Network window
9. Double-click on the 20_COMM_P listed in the Allen-Bradley
library folder. A user-defined Name and Description can be given to
this 20-COMM-P.
In our example, this device will be Station 1 on the network. Other
stations may be chosen by using the arrow to display a drop-down list in
the Station window.
Figure 4.11 Allen-Bradley Library Dialogue window
Configuring the Profibus Scanner
Figure 4.9.
4-7
