Configuring the Profibus Scanner

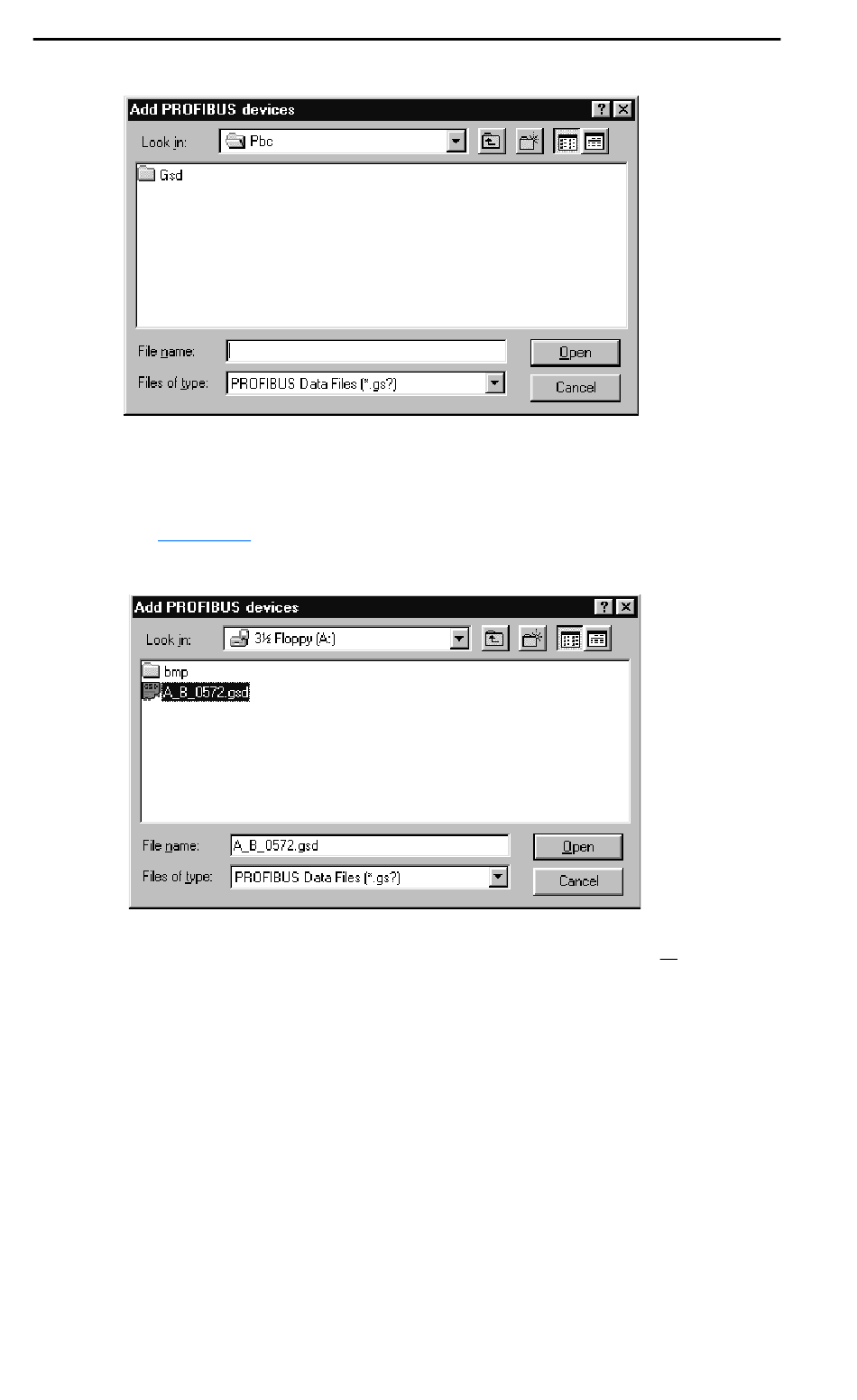

Figure 4.4 Add Profibus devices Applet window.

4. Find the directory location of the data file(s) you wish to add

(typically, the source location is a floppy disk in drive A:).

"A_B_0572.gsd" is the GSD file for the 20-COMM-P as shown in

Figure

Figure 4.5 Adding the GSD file for the 20-COMM-P

5. Select "A_B_0572.gsd" for the 20-COMM-P and click Open.

4.5.
