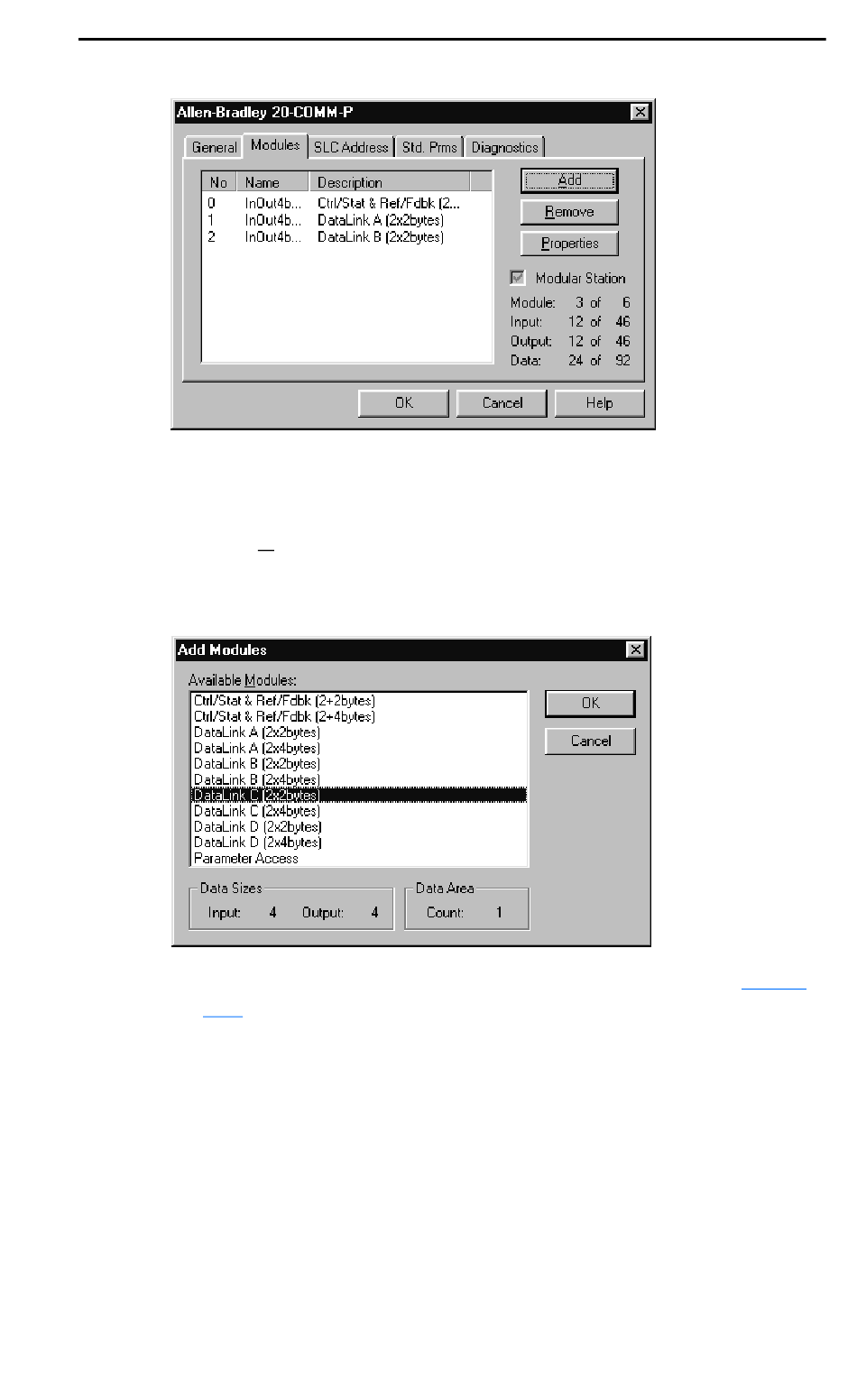

Figure 4.18 Modules: Datalink B Viewing Window
Station 1 will also be configured to use Datalinks C1 and C2. The
PowerFlex 70 utilizes 16-bit Datalinks.
17. Click Add to continue adding modules. Select "Datalink C (2x2
bytes)" and click OK.
Figure 4.19 Add Modules: Datalink C Selection Window
18. The "Datalink C" module has now been added as shown in
4.20.
Configuring the Profibus Scanner
4-11
Figure
