2-6
Installing the Adapter
4. Fold the Internal Interface cable behind the adapter and mount the
adapter on the drive using the four captive screws to secure and
ground it to the drive.
Important: On a PowerFlex 70 drive, the screw in the lower right hole

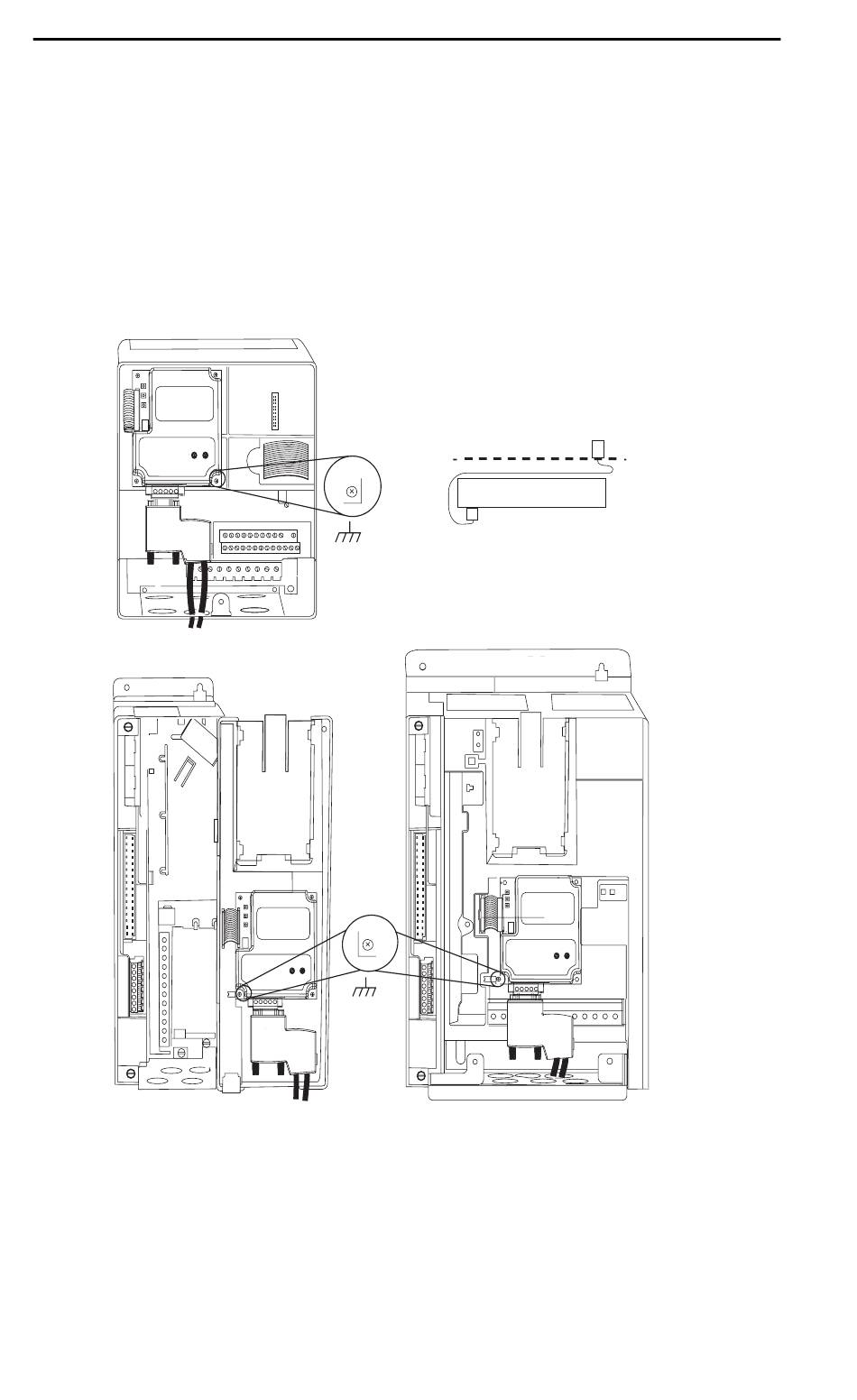

Figure 2.7 Mounting the Adapter
PowerFlex 70 Drive
Adapter mounts in drive.
PowerFlex 700 Drive (0 - 1 Frames)
Adapter mounts on door.
grounds the adapter.
On a PowerFlex 700 drive, the screw in the lower left hole
grounds the adapter.
Drive
Adapter
PowerFlex 700 Drive (2 Frame & Larger)
Adapter mounts in drive.
