4-16 Configuring the Profibus Scanner

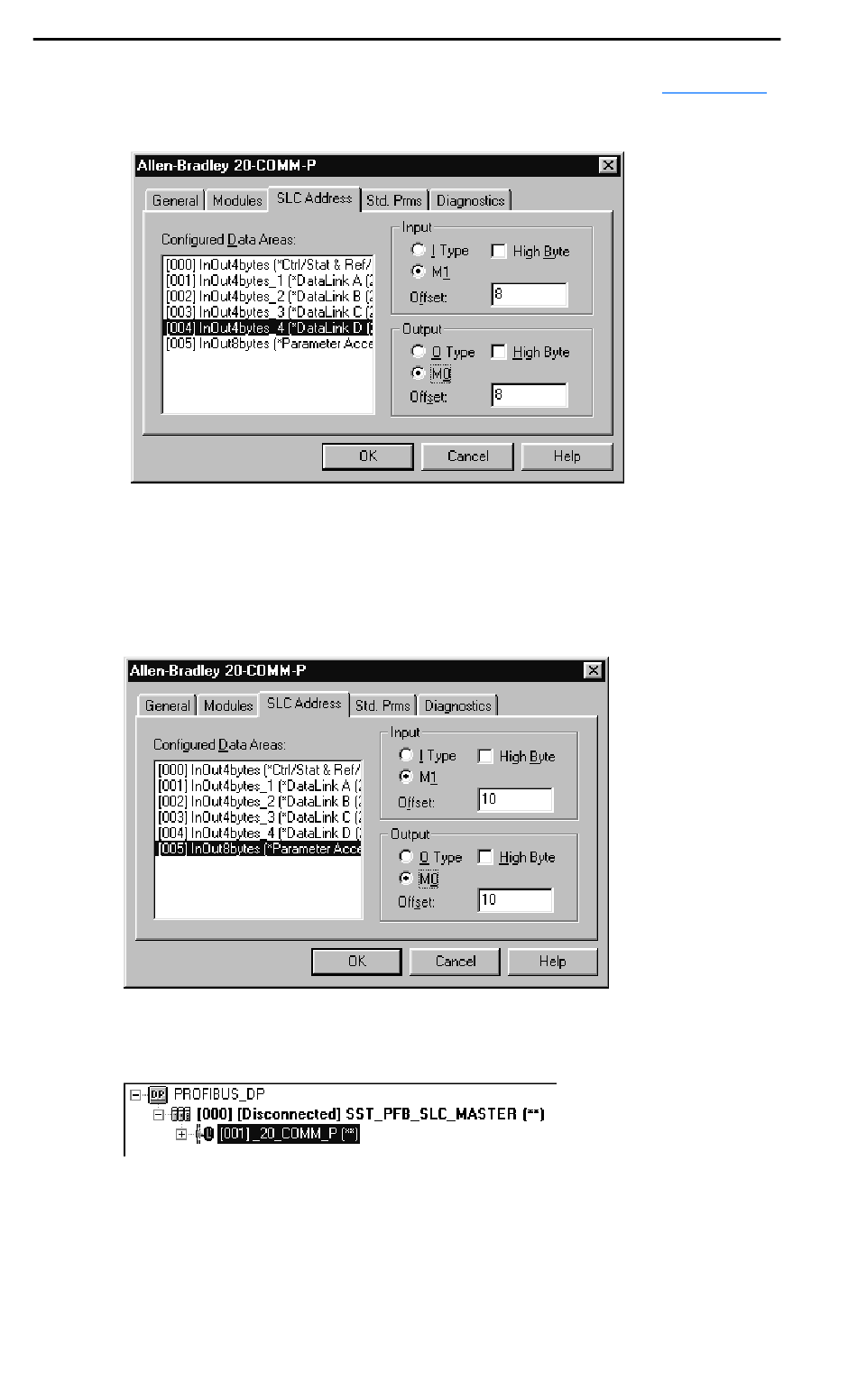

27. Datalink D is at word 8 in the M1/M0 files as shown in
Figure 4.28 SLC Address: M1/M0 (Datalink D)
28. Parameter Access starts at word 10 in the M1/M0 files.
Note that Parameter Access utilizes 4 words (10-13).
Click OK when finished.
Figure 4.29 SLC Address: M1/M0 (Parameter Access)
29. Station 1 is now displayed in the network window.
Figure 4.30 Station 1 Network window
