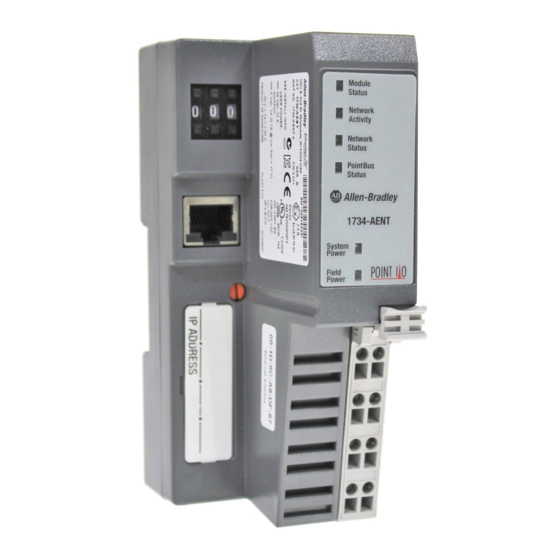

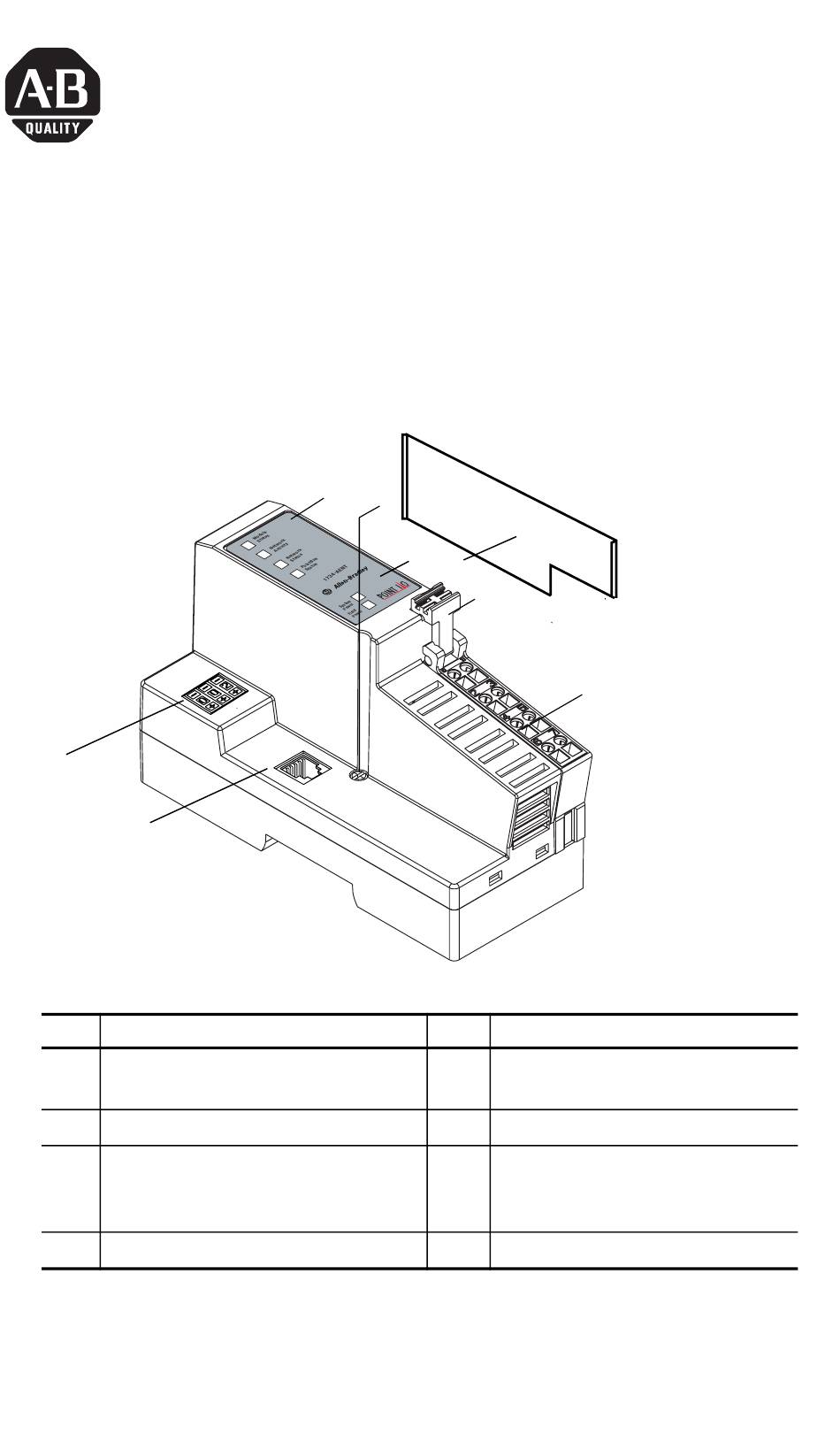

POINT I/O EtherNet/IP Adapter
(Cat. No. 1734-AENT)
2
1
Description
1
EtherNet Network RJ45
Connector
2
Network Address Thumbwheel
3
Indicators - Adapter Status,
PointBus Status, Network
Activity, and Network Status
4
DIN Rail Locking Screw (orange)
EtherNet is a trademark of Digital Equipment Corporation, Intel, and Xerox Corp.
POINT I/O is a trademark of Rockwell Automation

Installation Instructions

3
4
5
8
6
5
6
7
8
Publication 1734-IN590A-EN-P - March 2003
7
Description
System Power and Field Power
Indicators
RTB Removal Handle
Removable Terminal Block
(RTB)
Safety Endcap

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POINT I/O EtherNet/IP 1734-AENT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Allen-Bradley POINT I/O EtherNet/IP 1734-AENT

Summary of Contents for Allen-Bradley POINT I/O EtherNet/IP 1734-AENT

  • Page 1: Installation Instructions

    Installation Instructions POINT I/O EtherNet/IP Adapter (Cat. No. 1734-AENT) Description Description EtherNet Network RJ45 System Power and Field Power Connector Indicators Network Address Thumbwheel RTB Removal Handle Indicators - Adapter Status, Removable Terminal Block PointBus Status, Network (RTB) Activity, and Network Status DIN Rail Locking Screw (orange) Safety Endcap EtherNet is a trademark of Digital Equipment Corporation, Intel, and Xerox Corp.

  • Page 2: Important User Information

    Allen-Bradley publication SGI-1.1, Safety Guidelines for the Application, Installation and Maintenance of Solid-State Control (available from your local Rockwell Automation office), describes some important differences between...
  • Page 3 POINT I/O EtherNet/IP Adapter Identifies information about practices or circumstances WARNING that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss. Identifies information about practices or circumstances ATTENTION that can lead to personal injury or death, property damage, or economic loss.
  • Page 4 60529, as applicable, for explanations of the degrees of protection provided by different types of enclosure. Also, see the appropriate sections in this publication, as well as the Allen-Bradley publication 1770-4.1 ("Industrial Automation Wiring and Grounding Guidelines"), for additional installation requirements pertaining to this equipment.
  • Page 5 POINT I/O EtherNet/IP Adapter Preventing Electrostatic Discharge ATTENTION This equipment is sensitive to electrostatic discharge, which can cause internal damage and affect normal operation. Follow these guidelines when you handle this equipment: • Touch a grounded object to discharge potential static.

  • Page 6: Installing The Ethernet/Ip Adapter

    POINT I/O EtherNet/IP Adapter Installing the EtherNet/IP Adapter To install the adapter on the DIN rail prior to installing other base units, proceed as follows. 1. Position the adapter vertically above the DIN rail. 2. Press down firmly to install the adapter on the DIN rail. The locking mechanism will lock the adapter to the DIN rail.

  • Page 7: Setting The Network Address

    POINT I/O EtherNet/IP Adapter Setting the Network Address You can set the network Internet Protocol (IP) address 3 different ways: 1. using the thumbwheel switches located on the module 2. using a Dynamic Host Configuration Protocol (DHCP) server, such as Rockwell Automation BootP/DHCP 3.

  • Page 8: Installing A Replacement Ethernet/Ip Adapter To An Existing System

    POINT I/O EtherNet/IP Adapter Installing a Replacement EtherNet/IP Adapter to an Existing System You must use Series C POINT I/O modules with the ATTENTION 1734-AENT adapter. Series A or B POINT I/O modules will not work with this adapter. 1. Remove the existing adapter from the DIN rail as follows: a.

  • Page 9: Wiring The Ethernet/Ip Adapter

    POINT I/O EtherNet/IP Adapter Wiring the EtherNet/IP Adapter Module Status Module Node Address Status Thumbwheels Network Activity Network Activity Status Network Status Network Status PointBus PointBus Status Status 1734-AENT EtherNet RJ-45 Connector System Power System Power Field Power Field Power CHAS GND CHAS GND NC = No Connection...

  • Page 10: Troubleshooting With The Indicators

    POINT I/O EtherNet/IP Adapter Troubleshooting with the Indicators Module Status Module Status Network Activity Network Activity Network Status Network Status PointBus Status PointBus Status 1734-AENT System Power System Power Field Power Field Power 43248aent Indication Probable Cause System Power Not active; field power is off or dc-dc converter problem Green System power on;...
  • Page 11 POINT I/O EtherNet/IP Adapter Indication Probable Cause Network Status Device not initialized. The module does not have an IP address. Flashing Green No CIP connections. Device has an IP address, but no CIP connections are established. Green CIP connections. Device on-line and has an IP address, and CIP connections are established.

  • Page 12: Safety Approvals

    POINT I/O EtherNet/IP Adapter Safety Approvals The following information applies when Informations sur l’utilisation de cet équipement operating this equipment in hazardous en environnements dangereux: locations: Products marked “CL I, DIV 2, GP A, B, C, D” are Les produits marqués “CL I, DIV 2, GP A, B, C, D” ne suitable for use in Class I Division 2 Groups A, B, conviennent qu’à...

  • Page 13: Specifications

    POINT I/O EtherNet/IP Adapter Specifications Specifications - 1734-AENT EtherNet/IP Adapter Expansion I/O Capacity Maximum of 63 modules Maximum of 5 Rack Optimized connections (for digital modules only) Maximum of 25 direct connections 1734-AENT backplane current output = 1.0A. The actual number of modules can vary. Add up the current requirements of the modules you want to use to make sure they do not exceed the amperage limit of 1.0A for the 1734-AENT.
  • Page 14 POINT I/O EtherNet/IP Adapter Power Supply Specifications Input Voltage Rating 24V dc nominal 10-28.8V dc range Field Side Power 24V dc (+20% = 28.8V dc maximum) @ 400mA Requirements maximum Inrush Current 6A maximum for 10ms Interruption Output voltage will stay within specifications when input drops out for 10ms at 10V with maximum load.
  • Page 15 POINT I/O EtherNet/IP Adapter Environmental Conditions Operational IEC 60068-2-1 (Test Ad, Operating Cold), Temperature IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): -20 to 55°C (-4 to 131°F) Storage Temperature IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat),...
  • Page 16 14- 22 AWG (2.5-0.25mm ) solid or stranded wire rated Conductors Wire Size at 75 C or higher 3/64 inch (1.2mm) insulation maximum Category EtherNet Connector RJ-45, Category 5 Terminal Base Screw 7 pound-inches (0.8Nm) Torque Mass 9.0 oz/255 grams Certifications UL Listed Industrial Control Equipment, (when product is...
