C H A P T E R 6 – S A F E T Y
The infrared safety system is housed in three separate modules:
1 A vertical column of transmitters, which form the left-hand edge of the
light curtain.
2 A vertical column of receivers, which form the right-hand edge of the
light curtain.
3 A control box, containing the power supply circuits, the switching
electronics and the interface to the tester.
The interconnection between each of the modules is via simple multi-way cables, which
are easy for you to install.

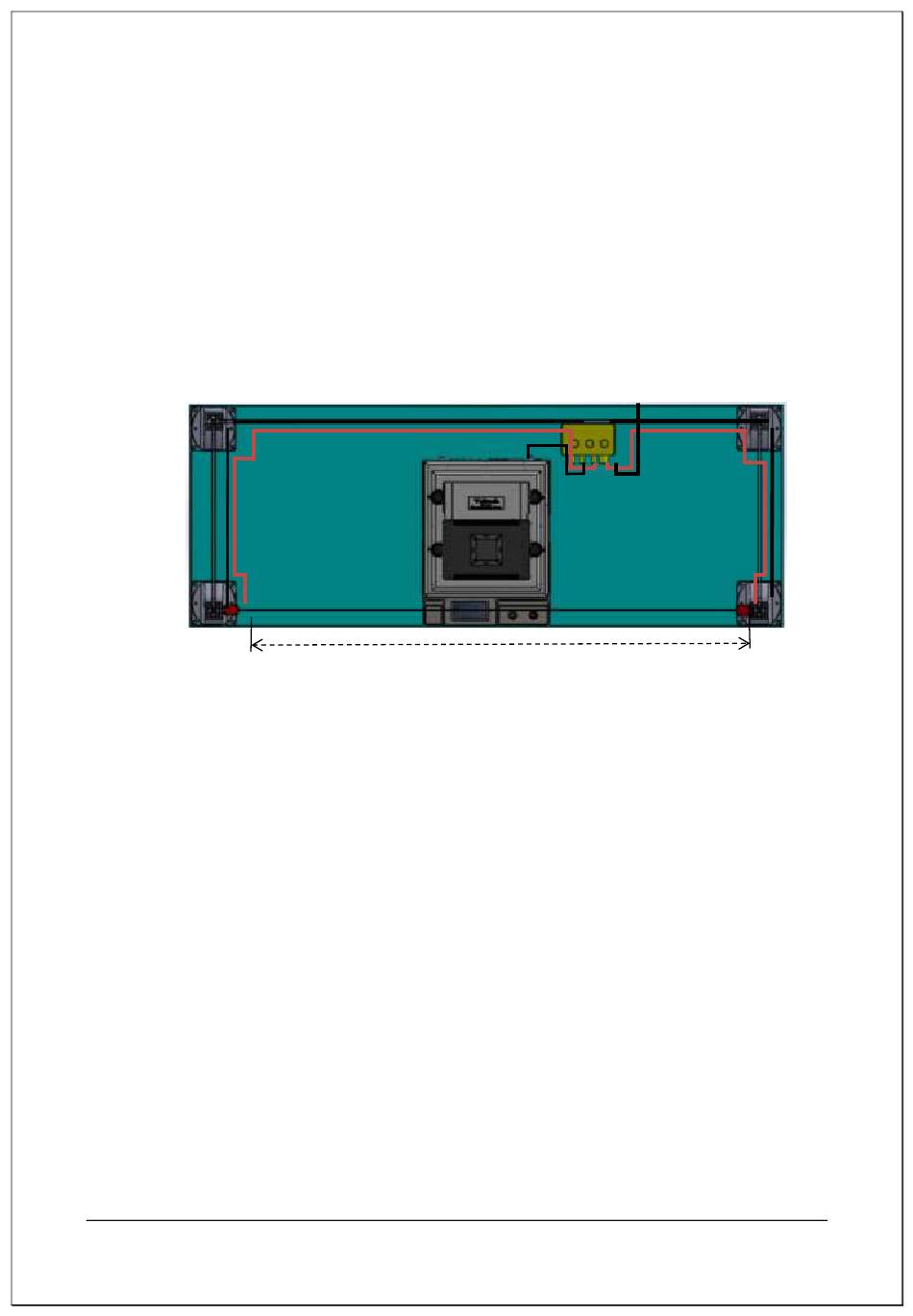

Typical installation is shown below
1
AT5600 User Manual 98-119 issue 14
S Y S T E M S
3
2
