The Voltech Fixture System

13.2.1.
The Voltech AT Series fixture system allows you freedom and flexibility when

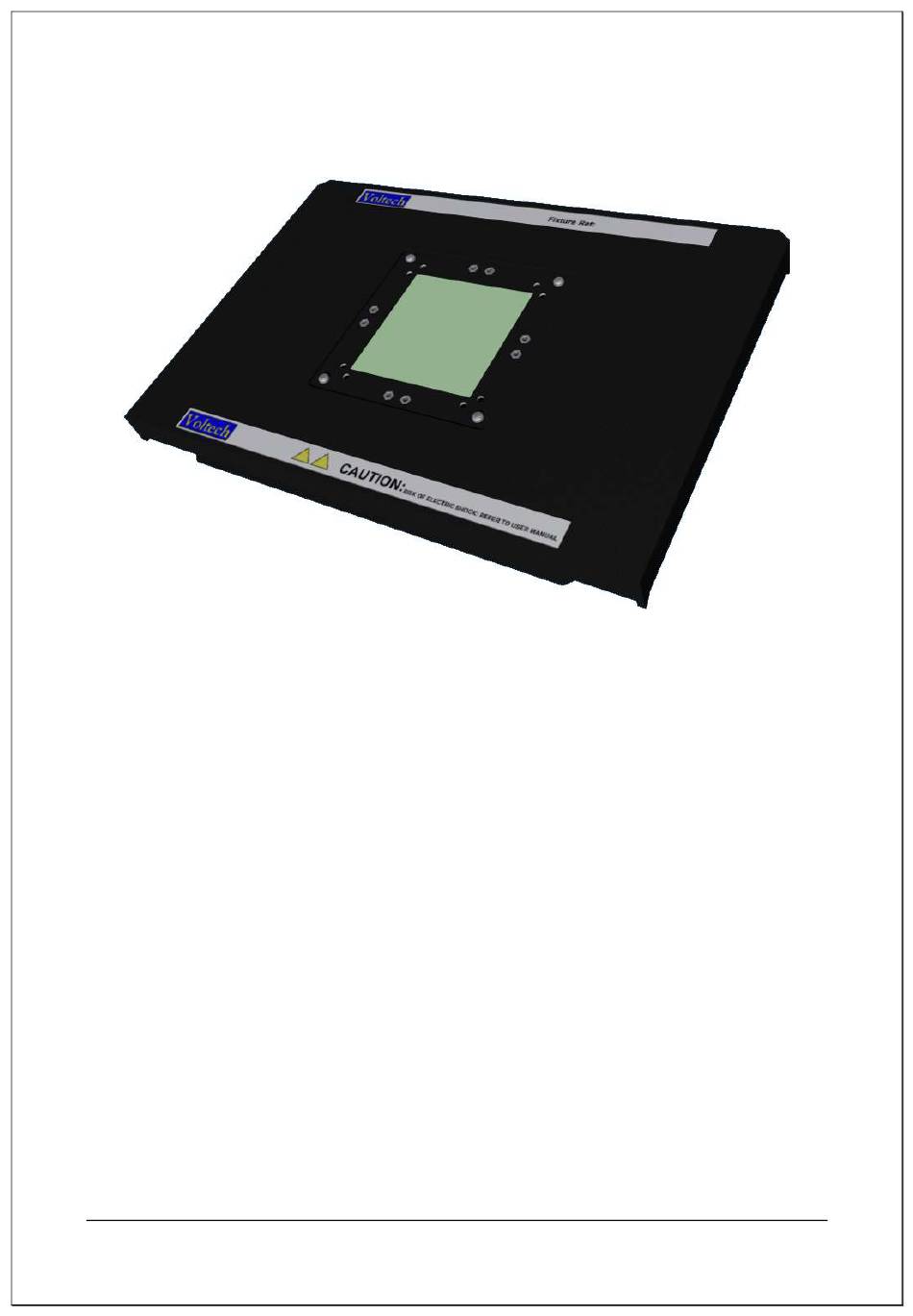

considering your fixturing needs. All fixtures are mounted on fixture boards, which
are available as a blank fixture plate and as a fixture kit which contains parts to
help you. The fixture is designed to connect to wound components with the
following characteristics:
Size:
A footprint of up to 63.5 mm square
A height of up to 63.5 mm
A connection matrix up to 60 mm square
A maximum static weight of 5.0Kg
