C H A P T E R 5 – G E T T I N G
Editor and Server on Separate PC's
In many situations, the Editor and Server would be installed on separate PC's (as
shown in the illustration on page 2.2.2). It's not common for a company to use a
Network drive to store test programs in one central location.
The *.ATP files can be easily moved using normal Windows Cut and Paste in
windows explorer from your PC to a network drive.
Editor and Server on the same PC
If the Server and Editor are installed on the same PC, the easiest way to transfer
the test program to the Server is to use the Save As menu in the Editor:

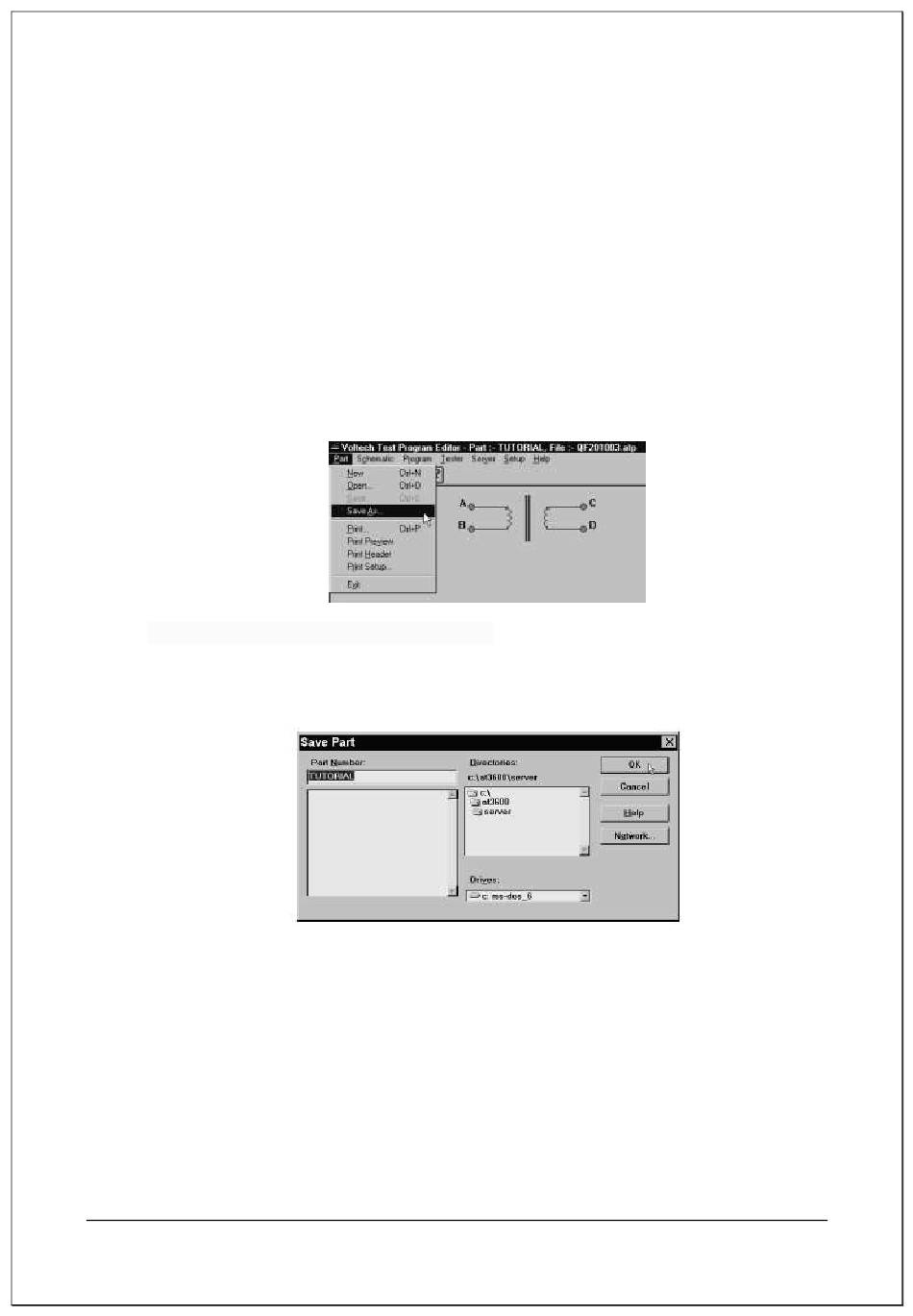

From the Top Level 'Part' menu, select 'Save As',
At the dialogue box, type in the part name TUTORIAL, as before, but change the
directory to the one selected for program storage for the Server
e.g. C:\AT3600\SERVER
Click on the OK button to close the dialogue box and save the test program in the
Server program directory. (note- the At Server allows you to change the program
store directory, so check where the AT SERVER has the programs folder
specified. This example shown is just the default directory.
AT5600 User Manual 98-119 issue 14
S T A R T E D
Page 73
