C H A P T E R 3 – U S I N G
3.4.

Utilizing Editor Test Programs

The AT Editor software (section 14) allows you to create and evaluate each
individual test program. It is not intended to manage the large numbers of test
programs that may be required daily once they are in 'production' use. Store the
program in the AT Server program directory once a program has been developed.
It shall then be made available to the AT5600 to load up and be ready to run
through the AT5600 user interface.
The Editor software can also be used to send the test program directly to the
Server store via the AT5600, or to save the file directly to the server program
directory (either over a network or on the same PC).
3.4.1.
One of the software packages supplied with the AT5600 is called the AT Server.
Usually, the Server software is installed onto a PC which is left on during
operating hours to distribute test programs to AT5600(s) as well as to log all test
results.
The AT5600 has a 'Server' port on its rear panel for connecting to the Server
using an RS232 COM port, but normally connection is made over a TCP/IP
network utilizing the Ethernet interfaces present on the computer and the AT5600.

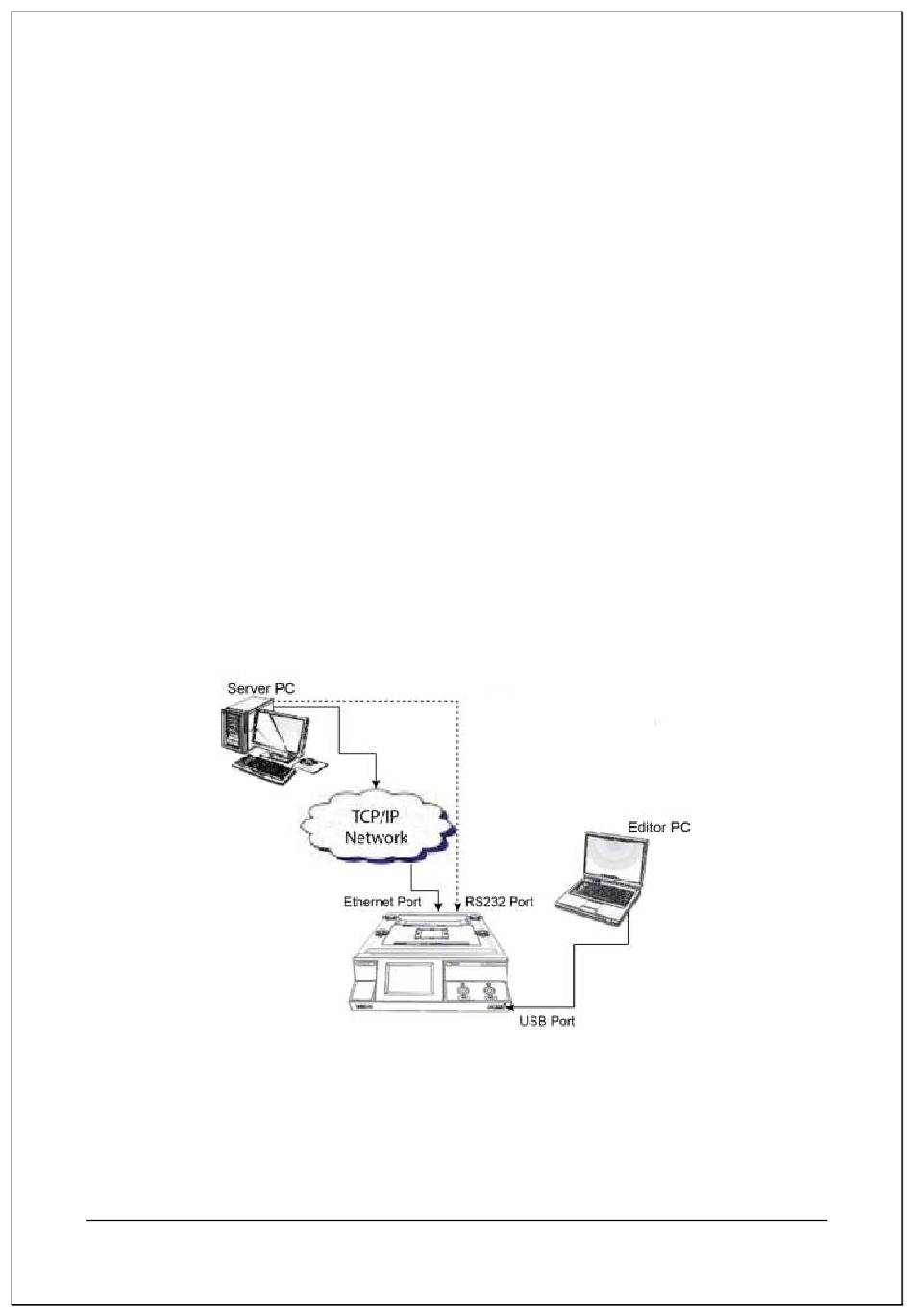

Server and Editor on separate computers
AT5600 User Manual 98-119 issue 14
T H E A T 5 6 0 0

Storing programs on the Server

Page 49
