C H A P T E R 1 0 – S P E C I F I C A T I O N S
9-pin female D-type connector
Pin
1 o/p
2 o/p
3 o/p
4
5 o/p

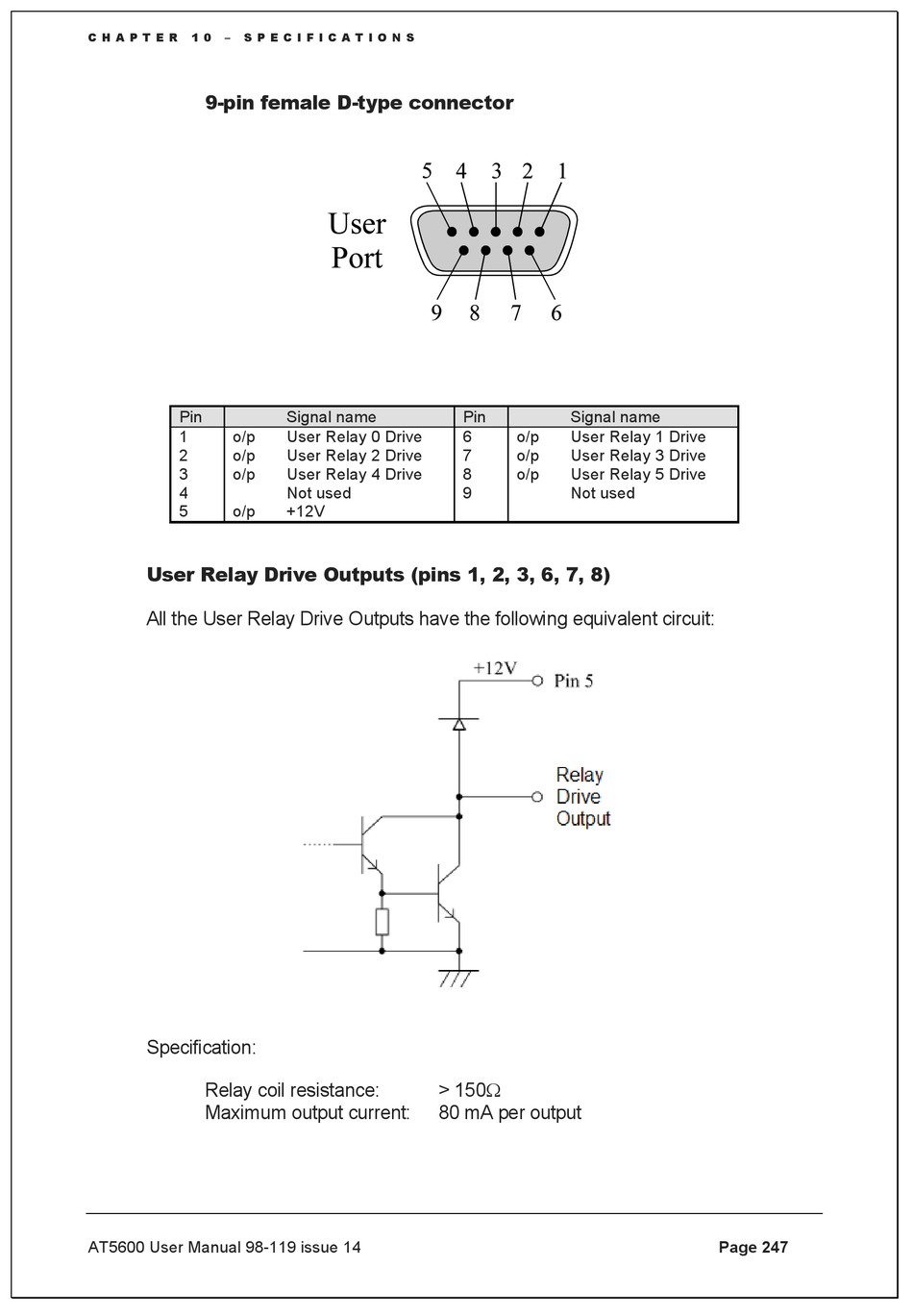

User Relay Drive Outputs (pins 1, 2, 3, 6, 7, 8)
All the User Relay Drive Outputs have the following equivalent circuit:
Specification:
Relay coil resistance:
Maximum output current:
AT5600 User Manual 98-119 issue 14
Signal name
User Relay 0 Drive
User Relay 2 Drive
User Relay 4 Drive
Not used
+12V
> 150
80 mA per output
Pin Signal name
6 o/p User Relay 1 Drive
7 o/p User Relay 3 Drive
8 o/p User Relay 5 Drive
9 Not used
