C H A P T E R 1 4 - A T
14.5.10.
Typically in production use, your program would be downloaded to AT Series
Tester from the Server, which is a PC resident software package, described in
detail in Chapter 15. However, before you transfer your program to the Server
archive, you should always verify it by running it on an actual transformer.
The Editor software will enable you to download a program directly to the tester,
and to execute it from the PC keyboard.
Before you attempt to run the program:
1. Make sure you have connected your tester's Auxiliary Port (on the rear panel)
to a suitable Comm Port on your PC.
2. Set up the Comm Port on the PC.
From the Top Level menu, select Setup > Communications
In the dialogue box, select the PC communications port which is connected to
the tester.
WARNING: If the chosen 'COM' port is reserved by another Windows
application, an error message will appear. You should select another port.
3. Fit the appropriate fixture to the tester and plug in the specimen transformer.
You are now ready to download and run your test program.

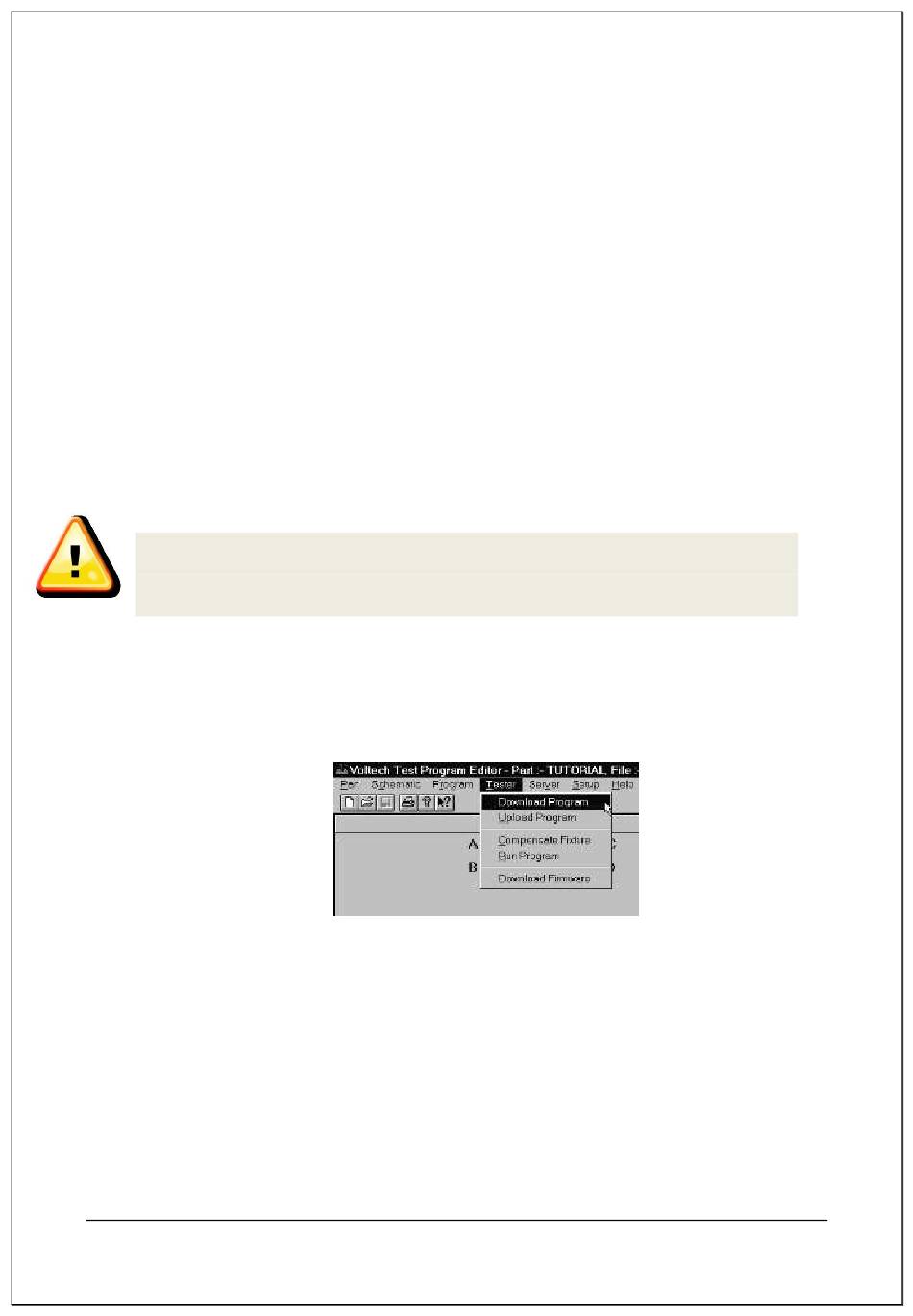

4. From the Top Level menu bar, select Tester > Download Program
The Editor will now download the test program to the tester. After a few seconds,
you should see a message to say that the Download was successful.
