C H A P T E R 1 4 - A T
>:
<:
Many of the tests available for the AT Series have all four limit types. There are
obviously some tests where it is not sensible to have four limits, IR - Insulation
Resistance - being a clear example where only a minimum limit is applicable, as
the perfect insulation between windings has no upper limit to its resistance.

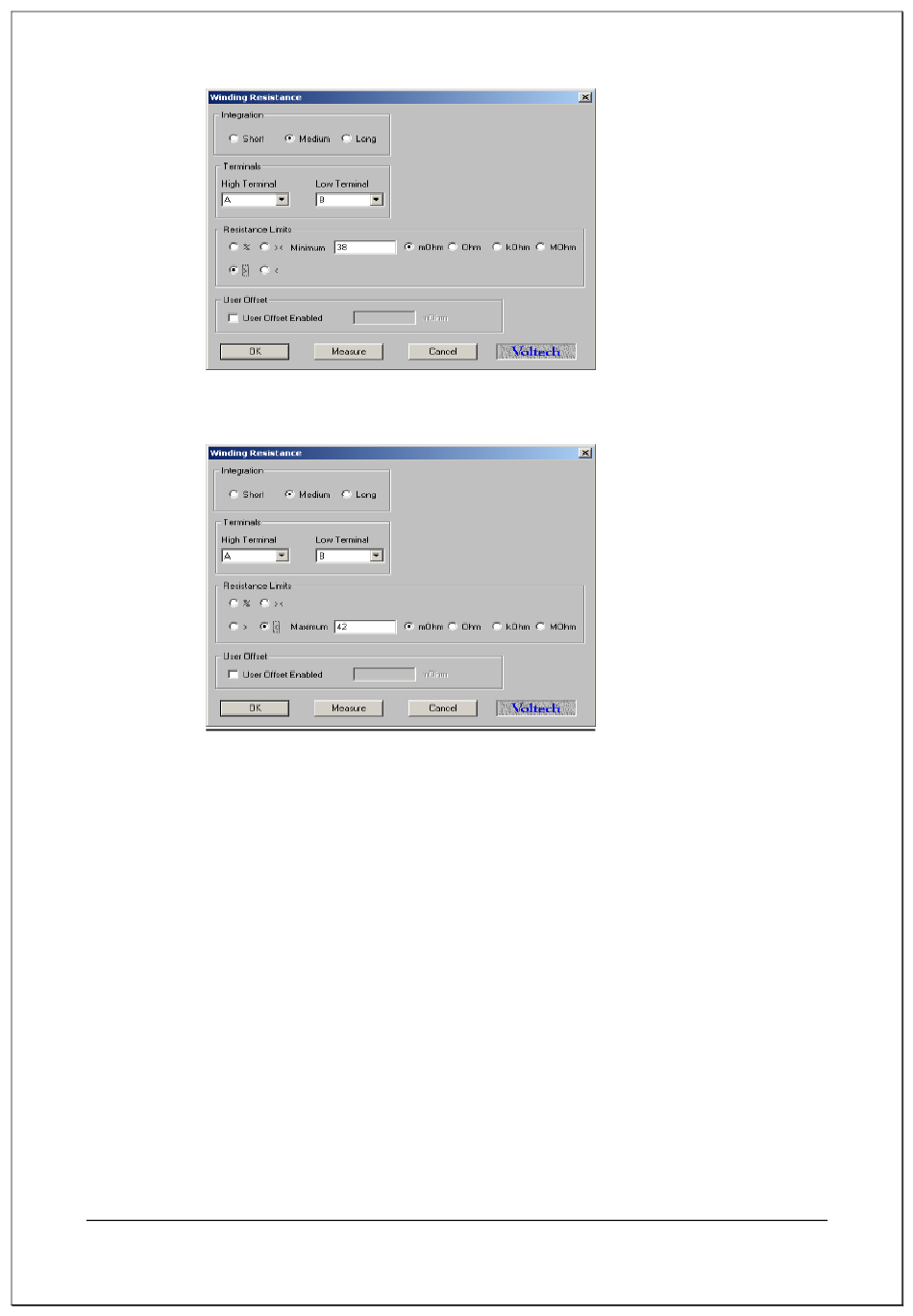

To choose which type of limit you wish to use, simply use the mouse to click on
one of the buttons %, > <, >, or <.
AT5600 User Manual 98-119 issue 14
E D I T O R
There is only a minimum limit.
There is only a maximum limit.
