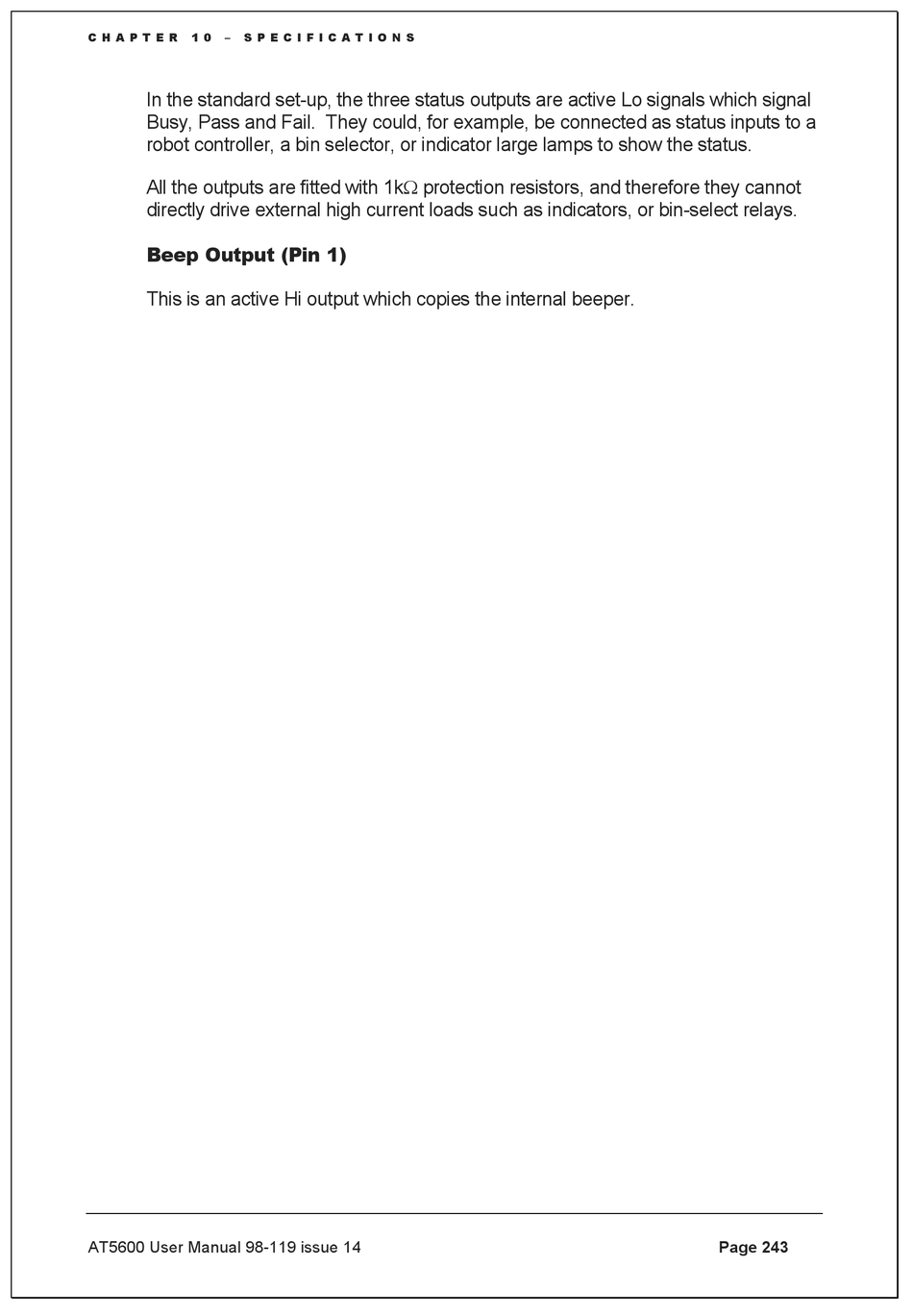

C H A P T E R 1 0 – S P E C I F I C A T I O N S
In the standard set-up, the three status outputs are active Lo signals which signal
Busy, Pass and Fail. They could, for example, be connected as status inputs to a
robot controller, a bin selector, or indicator large lamps to show the status.
All the outputs are fitted with 1k protection resistors, and therefore they cannot
directly drive external high current loads such as indicators, or bin-select relays.
Beep Output (Pin 1)
This is an active Hi output which copies the internal beeper.
