14.5.2.
After you have created the program schematic, and selected the program options,
you may then start creating the actual program of tests.
To edit the test program, you must first switch to the Program Editor.

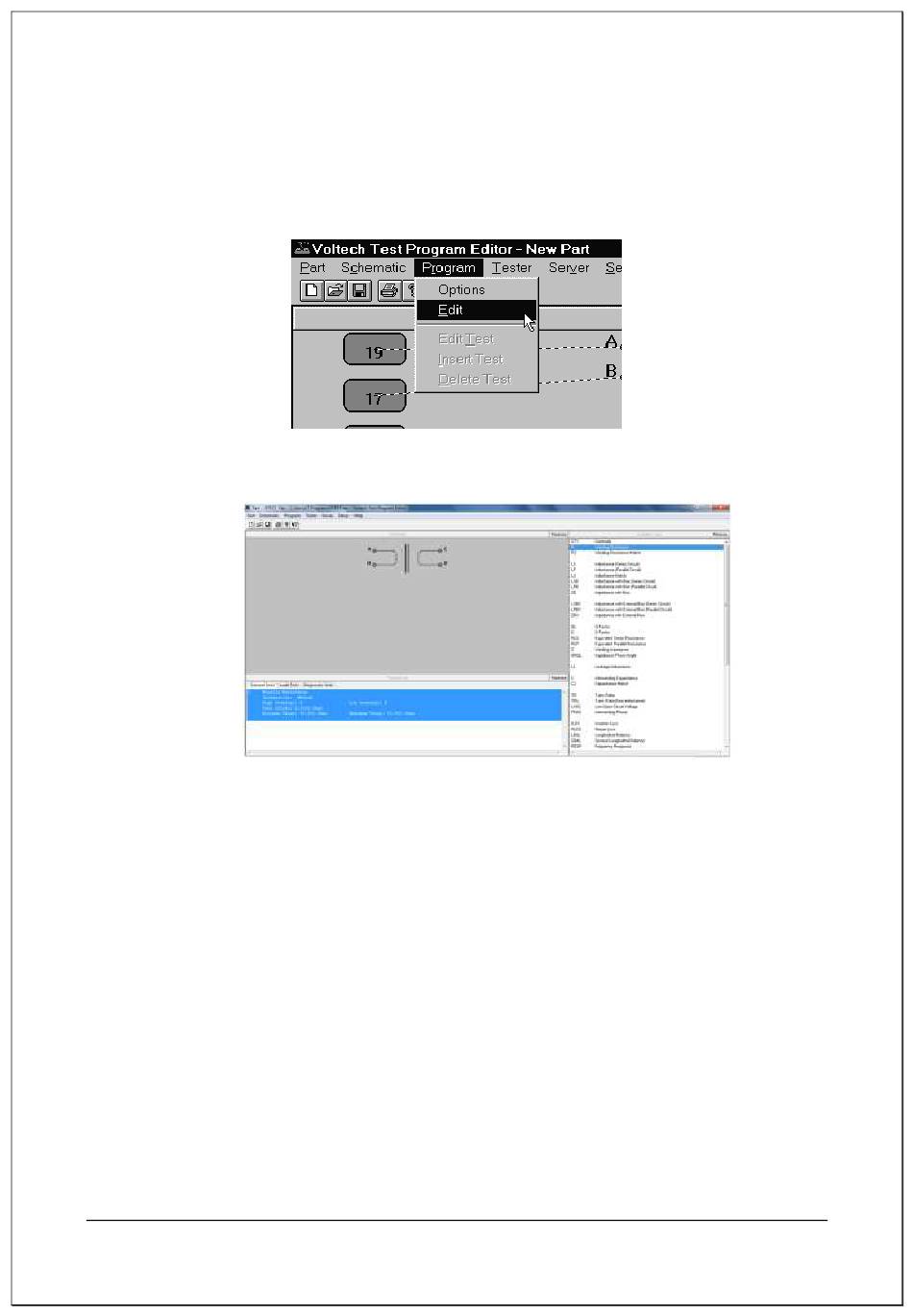

From the Top-Level menu bar, select Program > Edit;
You will now see a display with three separate windows:
Top Left: A simplified view of the transformer schematic omitting the wiring to the
nodes. This is a passive window intended to be used as a memory aid; it cannot
be used to change the schematic. (If you need to alter the schematic at any time,
simply click on 'Schematic' then 'Edit' in the Top-Level menu.)
Bottom Left: The Program Window contains three tabs. Normally, for a new
program, this window would initially be empty. The display above shows the
program of one resistance test created.
• General Tests - list of tests which currently make up the normal test
program
• Audit Tests - additional tests to be randomly performed, the frequency is
defined by program option.
• Diagnostic Tests – additional tests to be performed if a failure occurs.
Right: The Available Tests Window. This is the list of tests which are available to
be used in creating or modifying the test program. Tests which are not available
for use shall be grayed-out. Contact your Voltech sales office to purchase test that
not available. See section 14.9 Customize Tester for instruction to upgrade your
AT5600 with additional tests.
