Installation, Settings, and Wiring

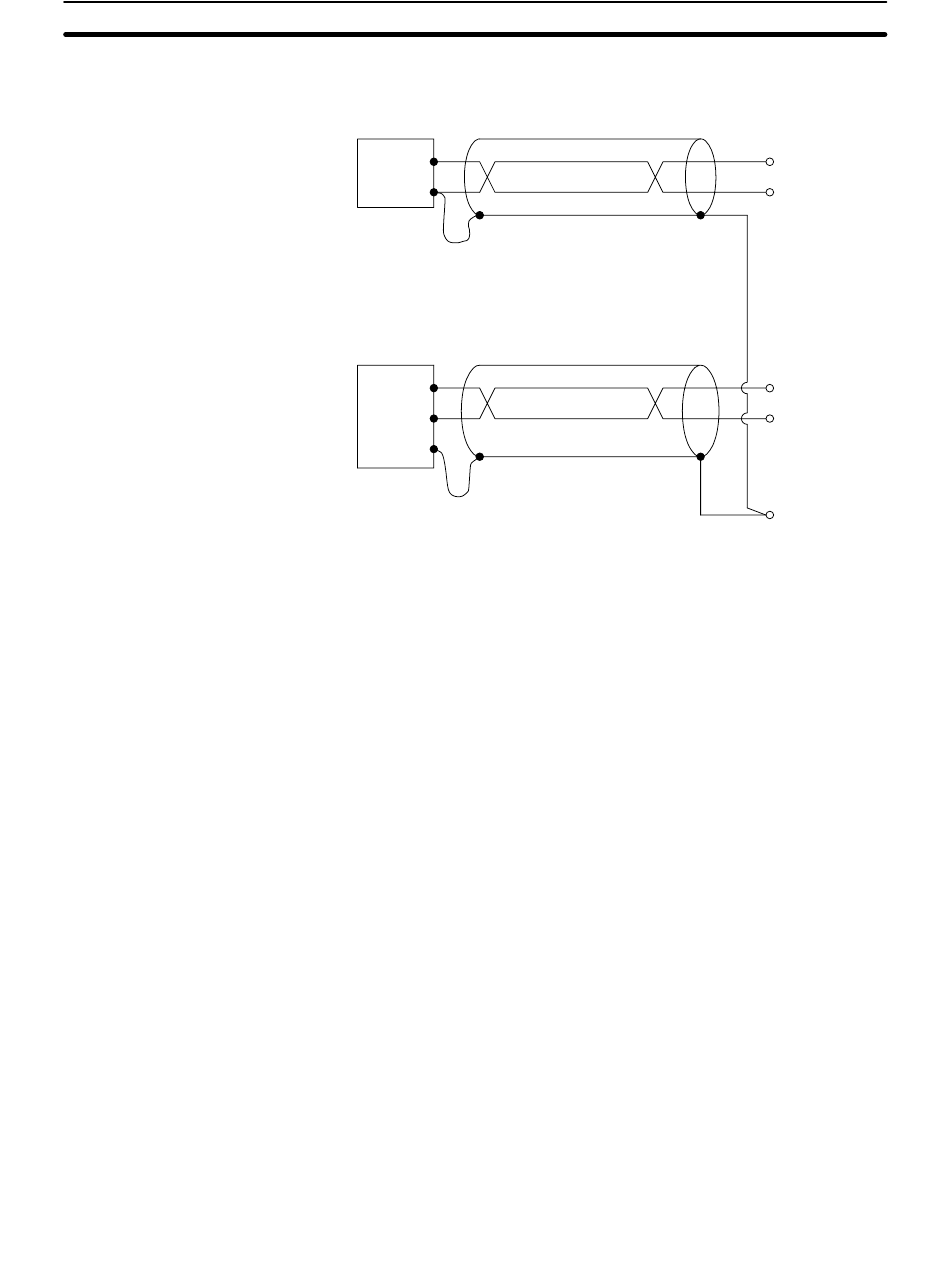

Single-ended and Differential Inputs on the Same Unit
74
Single-ended
source
+
–
Differential
source
+
–
G
Note 1. For best results, OMRON recommends using only shielded, twisted-pair
cable. Shields should be connected in a star fashion to the shield terminal.
2. Shield terminals are not directly connected to chassis ground of the Rack.
They are used as a floating reference for the isolated analog ground plane in
the Unit.
Section 5-3
A
n
B
n
A
n
B
n
Shield
