5-1-6 Indicators

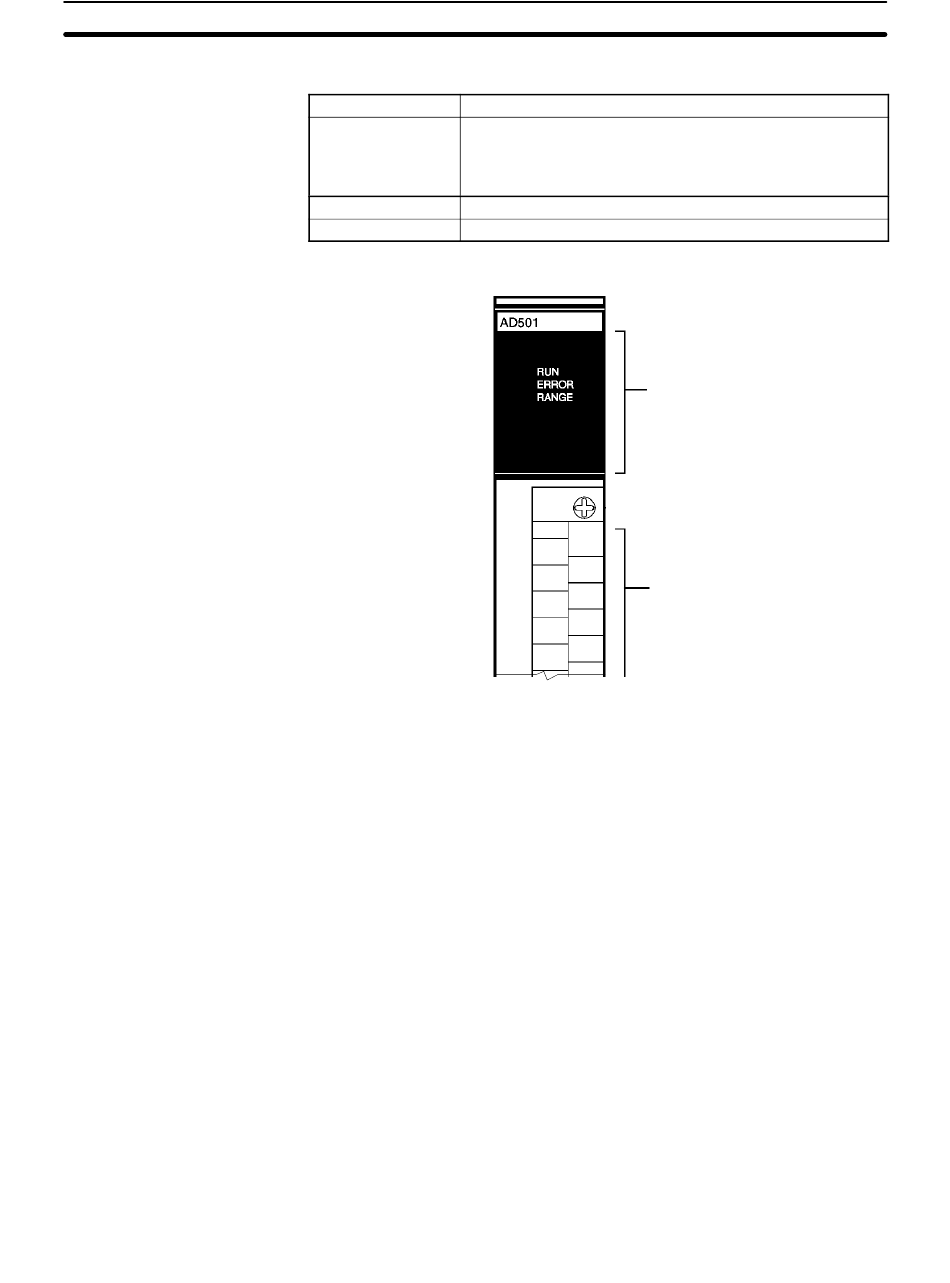

Indicators
RUN (Green)
Unit is operating correctly. If an error occurs, this indicator
turns OFF and the Unit stops operating. The indicator flashes
when the number of write operations to EEPROM exceeds
10,000. If the indicator flashes, replace the Unit.
ERROR (Red)
An internal diagnostic error or an out-of-range error occurred.
RANGE (Red)
An input signal is outside the selected range.
Section
Function
Indicator
cover
I/O
terminal
block
5-1
67
