Functions and User Programs

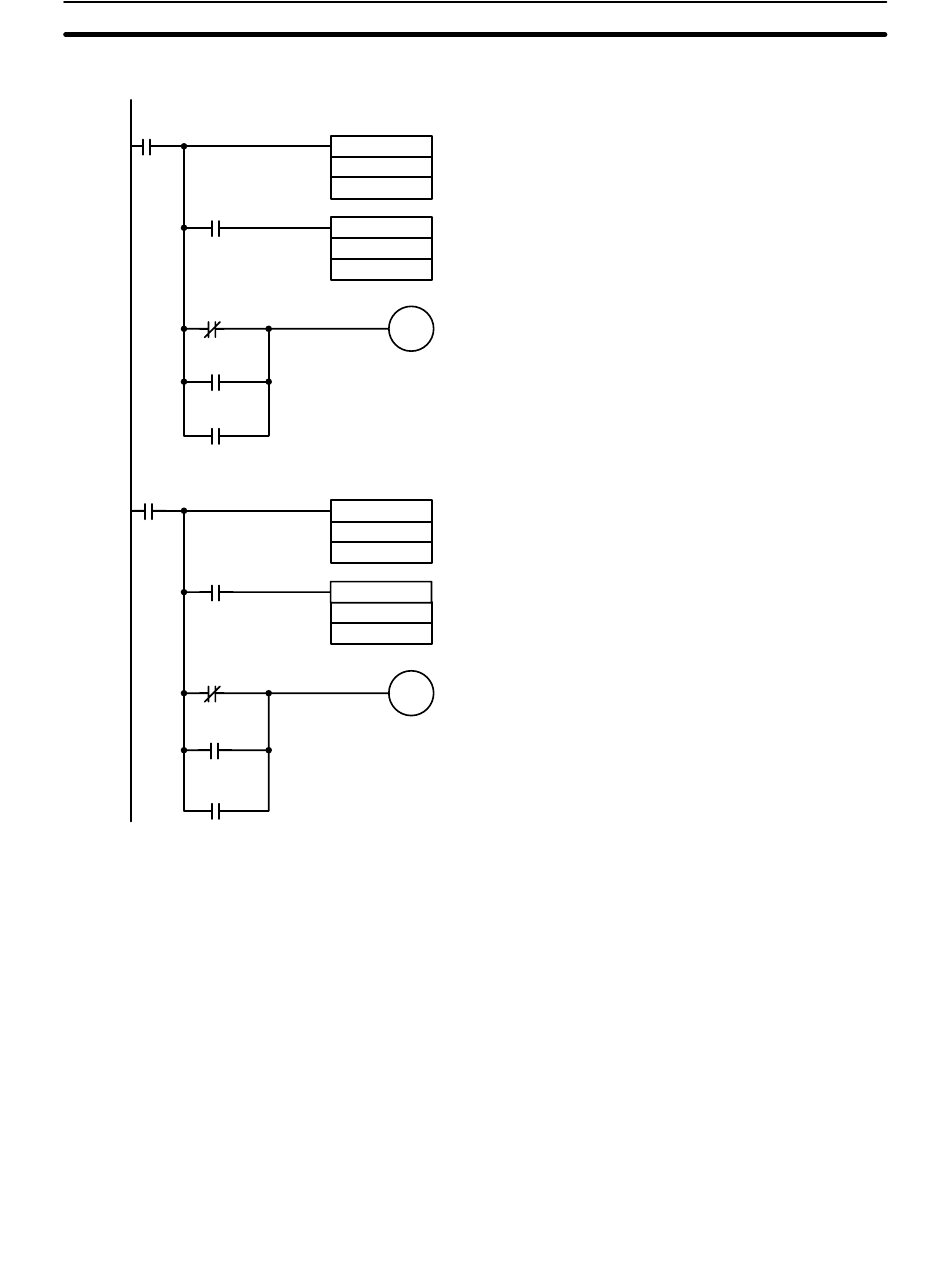

Programming Example Using C1000H
Input data 1
read condition
00300
25507 (LE)
25507 (LE)
25503 (ER)
00400
Input data 2
read condition
00301
25507 (LE)
25507 (LE)
25503 (ER)
00401
CMP(20)
001
#4096
BIN(23)
001
005
00400
(See note.)
CMP(20)
002
#4096
BIN(23)
002
006
00401
(See note.)
Note The Error Flag turns ON if the input data is not in BCD form.
Compares input 1 data
with 4096.
Converts input 1 data
to 12-bit binary and
transfers it to the
Analog Output Unit.
Indicates input 1 data is
not convertible.
Compares input 2 data
with 4096.
Converts input 2 data
to 12-bit binary and
transfers it to the
Analog Output Unit.
Indicates input 2 data is
not convertible.
Section 6-3
Analog Output Unit outputs
converted data.
Analog Output Unit outputs
converted data.
