Indicators - Omron SYSMAC C Series Operation Manual

Specifications and General Information

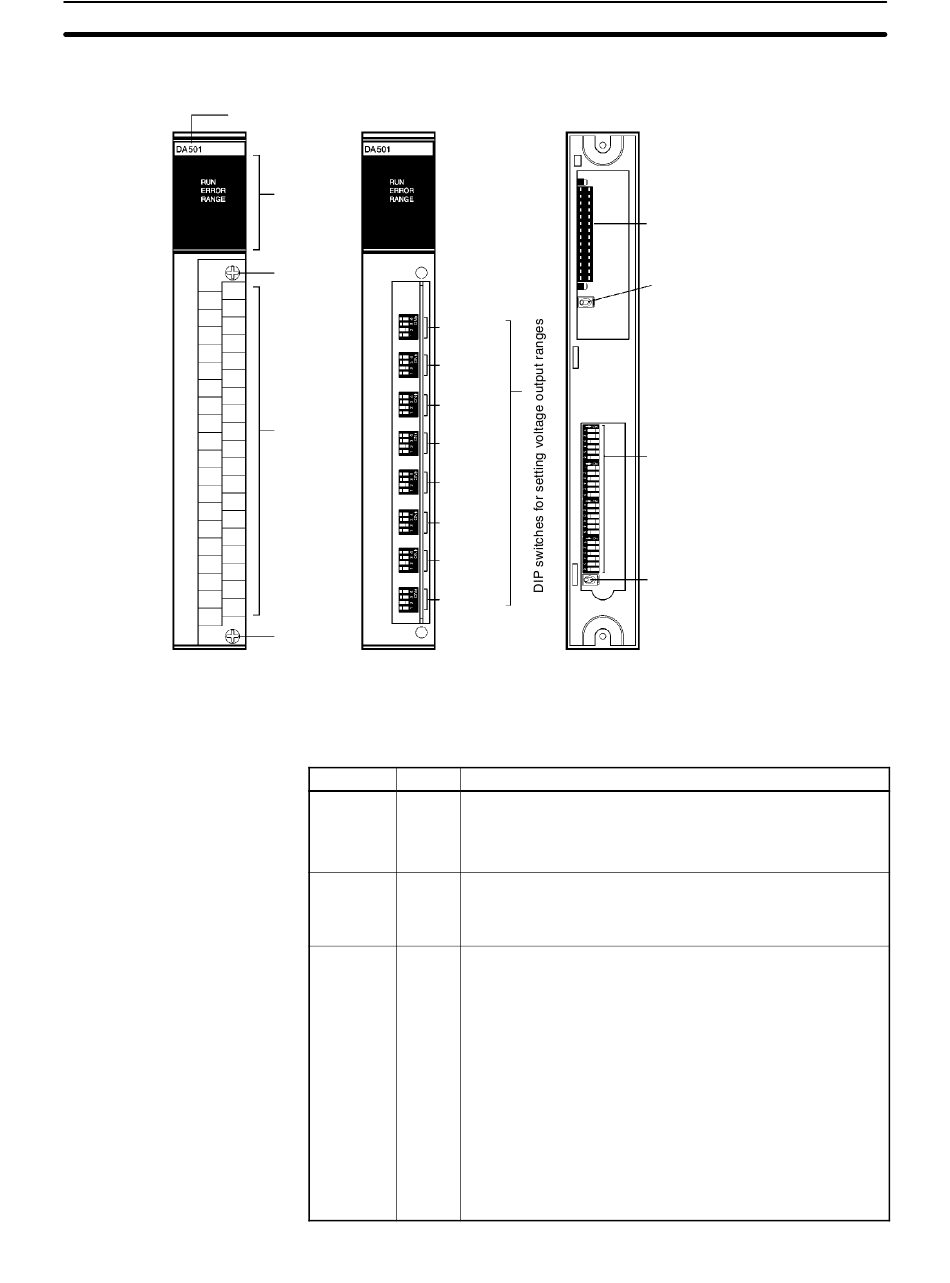

9-1-3 Description of Parts
Front

9-1-4 Indicators

142
Model label
Indicator
cover
Set screw
Terminal
block
Set screw
Front
(With Terminal Block
and Cover Removed)
Indicator Color
RUN Green
ERROR Red
RANGE Red
Output
1
Output
2
Output
3
Output
4
Output
5
Output
6
Output
7
Output
8
Rear
Lit while the Unit is operating normally. Turns OFF when an
error occurs. The Unit will stop operating.
This indicator flashes when the total number of write
operations to EEPROM reaches 5,000 or 10,000.
Lights or flashes in the following situations.
Internal memory error.
Incorrect data settings.
Disconnected external 24 VDC power supply.
With Scaling
Output signal range of 0 to 10 V, 0 to 5 V, 0 to 20 mA, or 4 to
20 mA:
Lights when conversion data is smaller than 0 or greater than
4095, and turns OFF when conversion data is between 0 and
4095.
Output signal range of –5 to 5 V or –10 to 10 V:
Lights when conversion data is smaller than –2048 or greater
than 2047, and turns OFF when conversion data is between
–2048 and 2047.
Without Scaling
Lights when conversion data is smaller than the scaling lower
limit or greater than the scaling upper limit, and turns OFF
when conversion data is between the scaling lower limit and
upper limit.
Section
Backplane
connector
Allocated I/O
two/four-word
mode switch
DIP switches for
setting output
ranges
Switch for setting
operation when PC
power is
interrupted
Function
9-1
