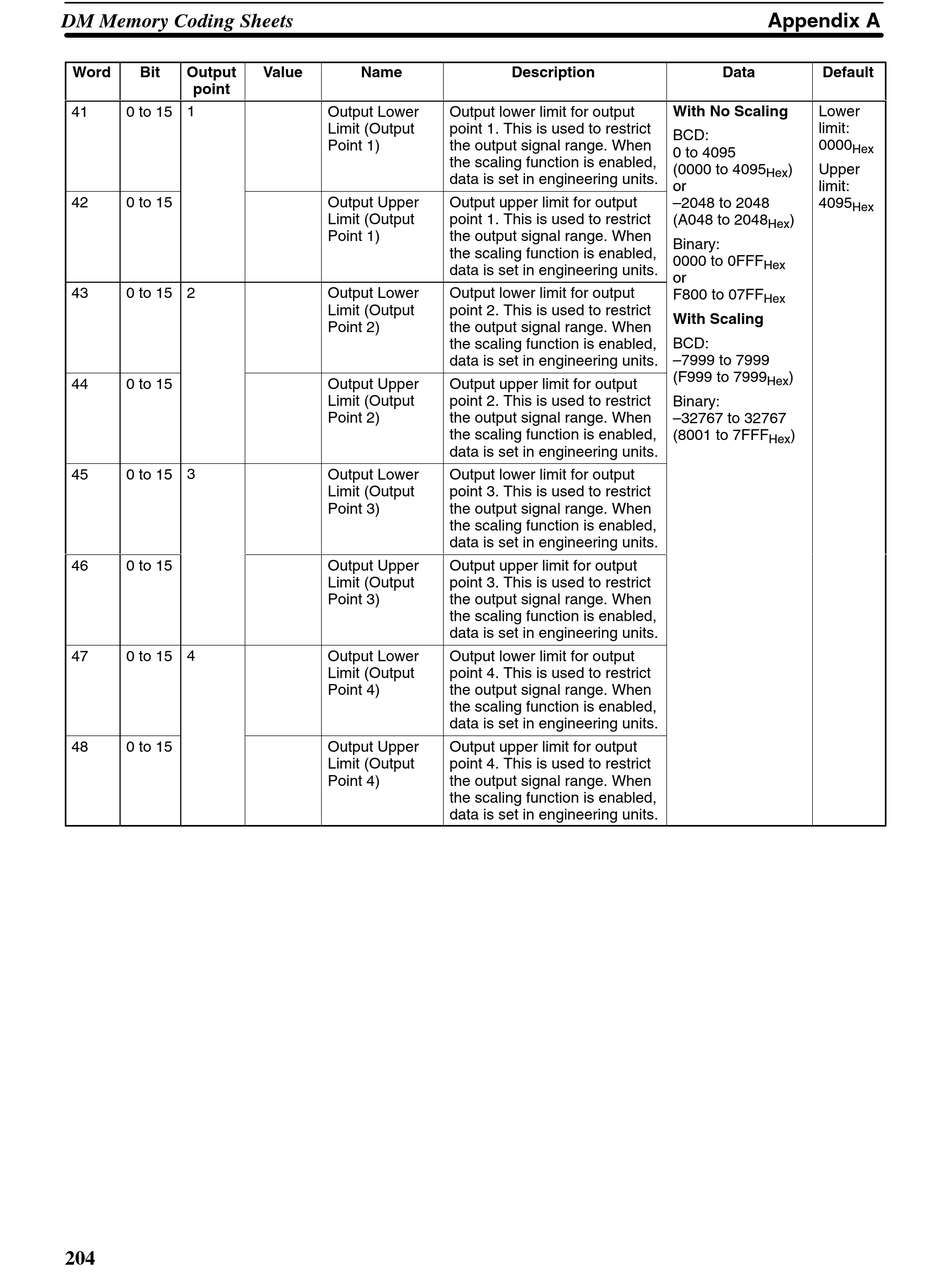

DM Memory Coding Sheets
Word Bit Output
point
41 0 to 15 1
42 0 to 15
0 to 15 2
43
44 0 to 15
45 0 to 15 3
46 0 to 15
0 to 15 4
47
48 0 to 15
204
Value Name
Output Lower
Limit (Output
Point 1)
Output Upper
Limit (Output
Point 1)
Output Lower
Limit (Output
Point 2)
Output Upper
Limit (Output
Point 2)
Output Lower
Limit (Output
Point 3)
Output Upper
Limit (Output
Point 3)
Output Lower
Limit (Output
Point 4)
Output Upper
Limit (Output
Point 4)
Description
Output lower limit for output
point 1. This is used to restrict
the output signal range. When
the scaling function is enabled,
data is set in engineering units.
Output upper limit for output
point 1. This is used to restrict
the output signal range. When
the scaling function is enabled,
data is set in engineering units.
Output lower limit for output
point 2. This is used to restrict
the output signal range. When
the scaling function is enabled,
data is set in engineering units.
Output upper limit for output
point 2. This is used to restrict
the output signal range. When
the scaling function is enabled,
data is set in engineering units.
Output lower limit for output
point 3. This is used to restrict
the output signal range. When
the scaling function is enabled,
data is set in engineering units.
Output upper limit for output
point 3. This is used to restrict
the output signal range. When
the scaling function is enabled,
data is set in engineering units.
Output lower limit for output
point 4. This is used to restrict
the output signal range. When
the scaling function is enabled,
data is set in engineering units.
Output upper limit for output
point 4. This is used to restrict
the output signal range. When
the scaling function is enabled,
data is set in engineering units.
Appendix A
Data Default
With No Scaling Lower
limit:
BCD:
0000
0 to 4095
(0000 to 4095 ) Upper
Hex
or or limit: limit:
–2048 to 2048 4095
(A048 to 2048 )
Hex
Binary:
0000 to 0FFF
Hex
or or
F800 to 07FF
Hex
With Scaling
BCD:
–7999 to 7999
(F999 t 7999 (F999 to 7999 ) )
Hex
Binary:
–32767 to 32767
(8001 to 7FFF )
Hex
Hex
Hex
