Functions

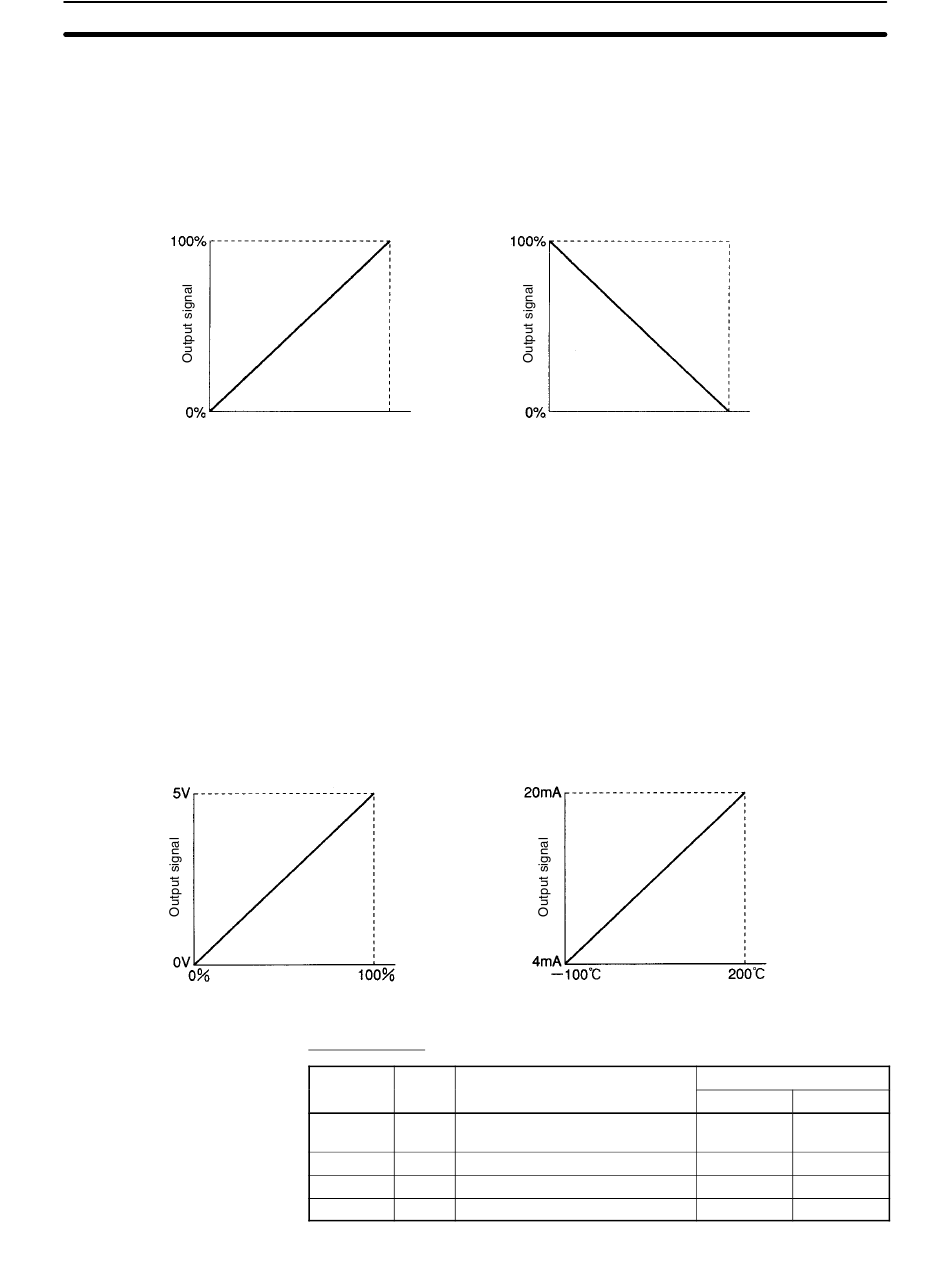

Scaling Lower Limit < Scaling Upper Limit
Scaling
lower limit
Output Signals
Scaling Enable Bits
Scaling Enabled Flags
Examples of Positive Scaling
Example 1: 0 to 5 V output for 0 to 100%
Conversion data
176
When the scaling lower limit is smaller than the scaling upper limit, the lower limit
corresponds to output signal level 0%, the upper limit corresponds to output sig-
nal level 100%, and positive scaling is performed.
When the scaling lower limit is greater than the scaling upper limit, the lower limit
corresponds to output signal level 100%, the upper limit corresponds to output
signal level 0%, and reverse scaling is performed.
Scaling
upper limit
Conversion data
Conversion data set in engineering units is converted into a rate of 0% to 100%
(0 to 4095) according to the scaling upper and lower limits, subject to conver-
sion, and then generated as output signals.
To enable scaling, turn ON the Scaling Enable Bit for each output point. These
bits are read/write.
To check whether the scaling function is active, monitor the status of the Scaling
Enabled Flag for each output point. These flags are read-only.
Output Point 1
Address Bit
13 0
14 8
17 1 to 15 Scaling Lower Limit
18 1 to 15 Scaling Upper Limit
Scaling Lower Limit > Scaling Upper Limit
Scaling
upper limit
Conversion data
Example 2: 4 to 20 mA output for –100 to 200_C
Conversion data
Function
Scaling Enable Bit
BCD/Binary Mode Bit
Section 9-4
Scaling
lower limit
Settings
Example 1 Example 2
ON ON
(Enabled) (Enabled)
ON (BCD) ON (BCD)
0000 8100
Hex Hex
0100 0200
Hex Hex
