Four-word Operation
First Scan Flag
25315
First Scan Flag
25315
Always OFF Flag
25314
00314 07008
25314
Always OFF Flag
(Continued on next page.)

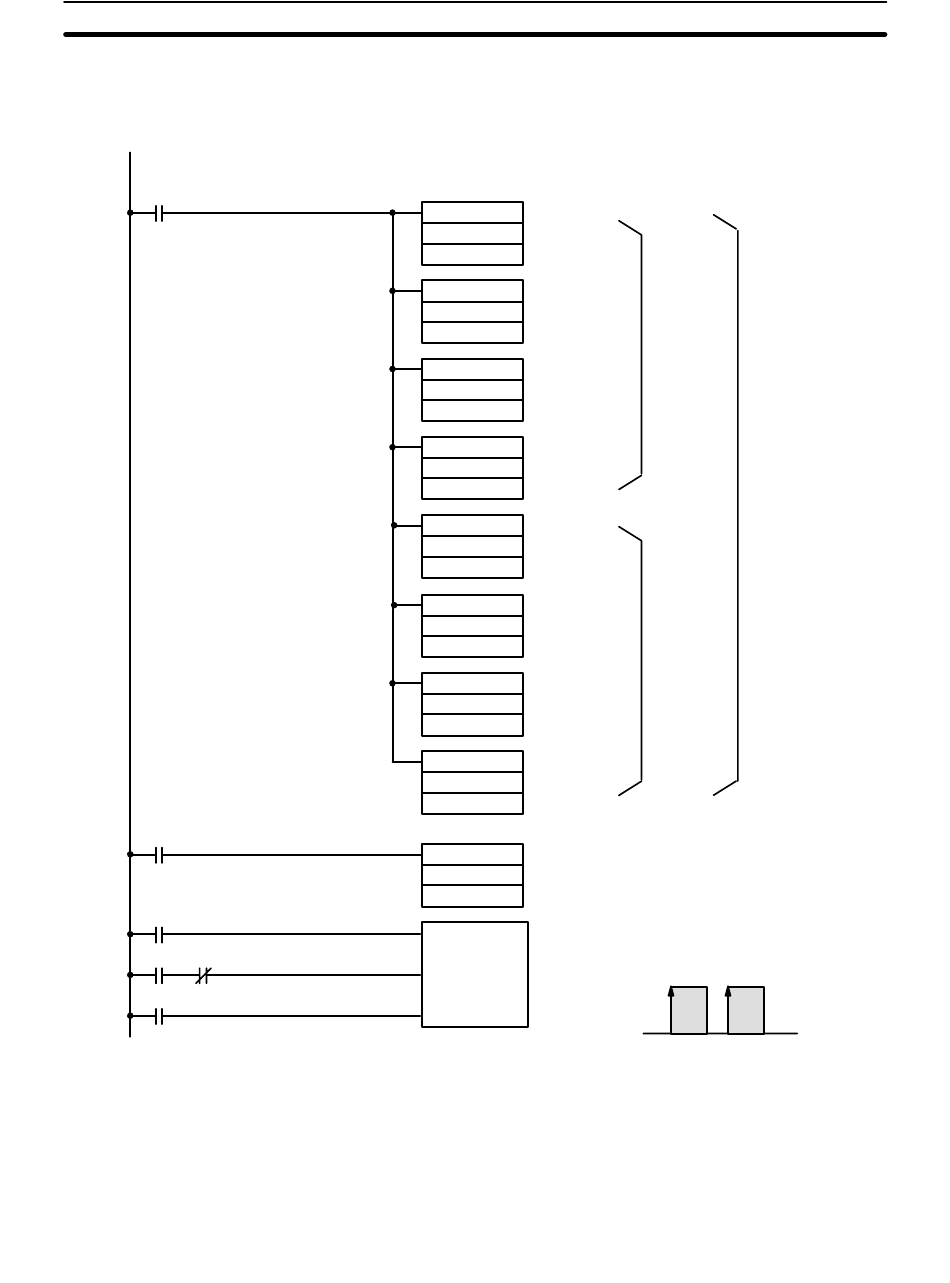

Programming Using All 8 Points
The following program can be used when all eight input points are being used.
MOV(21)
MOV21
MOV(21)
MOV(21)
MOV(21)
MOV(21)
MOV(21)
MOV(21)
MOV(21)
IN
SFT(10)
CP
R
Note 1. When mean is not used, no setting is necessary. The above example in-
cludes settings for all points to allow for easy modification.
2. Mean processing starts after the points are specified. It takes 10 ms x (num-
ber of samples) for the data to be output.
#0000 Input point 1
DM 0000
If you are not
#0000
Input point 2
using mean
DM 0001
values, set to
#0000. See
note 1.
Input point 3
#0000
DM 0002
Input point 4
#0000
DM 0003
Input point 5
#0005
DM 0004
Set the mean
Input point 6
#0010
data (number
DM 0005
of samples.)
See note 2.
Input point 7
#0020
DM 0006
#0050
Input point 8
DM 0007
Sets the initial value of the shift register.
This will be used for writing data consecu-
#0001
tively through the output word.
070
Bits IR 07001 through IR 07008 are
shifted to move consecutive parameters
to the output word.
070
ON
IR 00314
070
OFF
The bits are shifted when bit IR 00314
goes from OFF to ON.
Section 4-4
Initial param-
eter setting
