Specifications and General Information
Output Specifications
Voltage Outputs
BCD Data

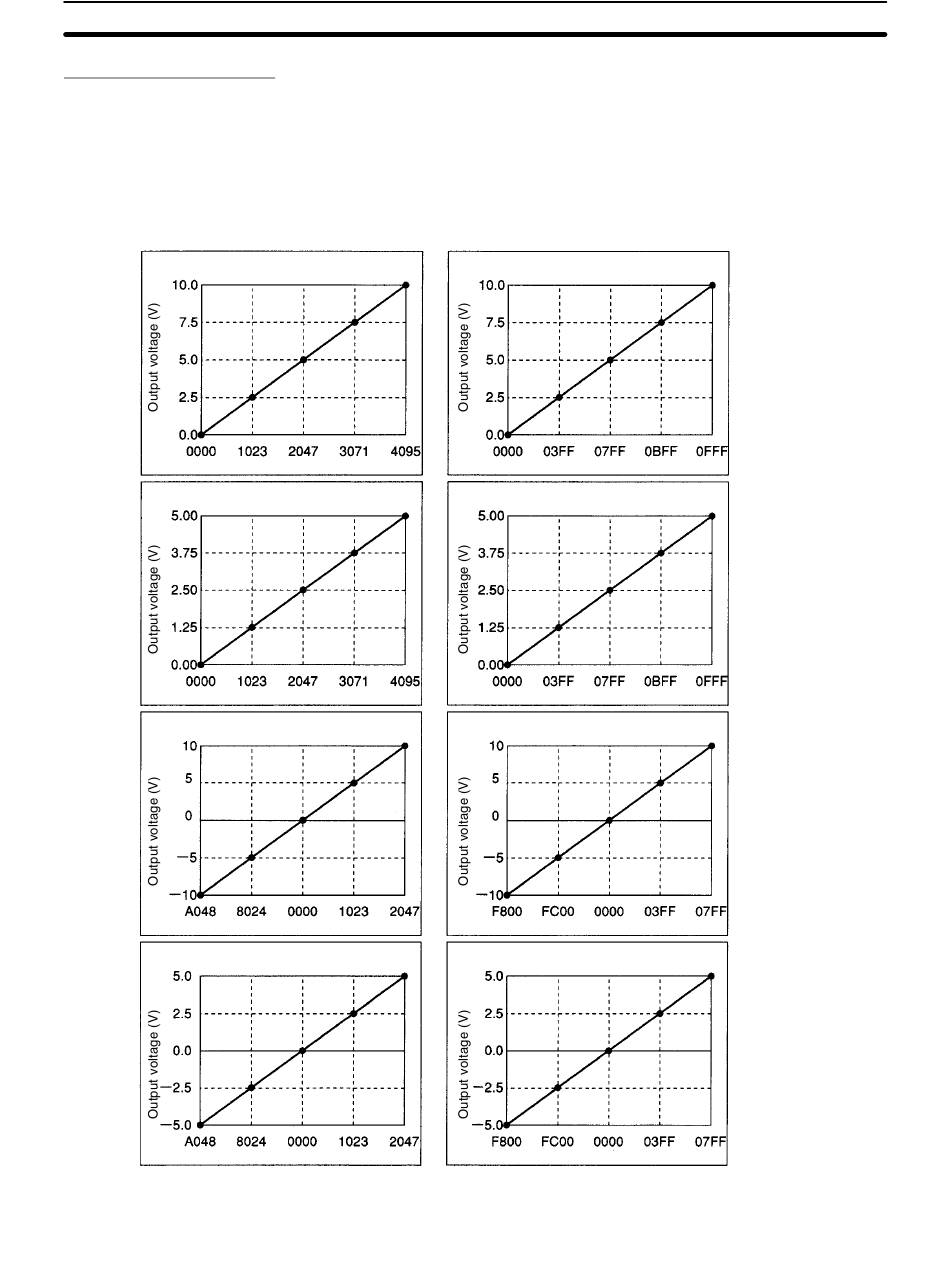

The output specifications of the C500-DA501 Analog Output Unit without scal-
ing are shown below.
0 to 10 V Output
Conversion data
0 to 5 V Output
Conversion data
–10 to 10 V Output
Conversion data
–5 to 5 V Output
Conversion data
Binary Data
0 to 10 V Output
Conversion data
0 to 5 V Output
Conversion data
–10 to 10 V Output
Conversion data
–5 to 5 V Output
Conversion data
Section
9-1
139
