Functions, Settings and Wiring
Setting the Switch
4-2-4 Setting the Input Ranges
Preparations
1, 2, 3...
Example 1: Setting Input 1 as 0 to 10 V Input
0 to 10 VDC
34

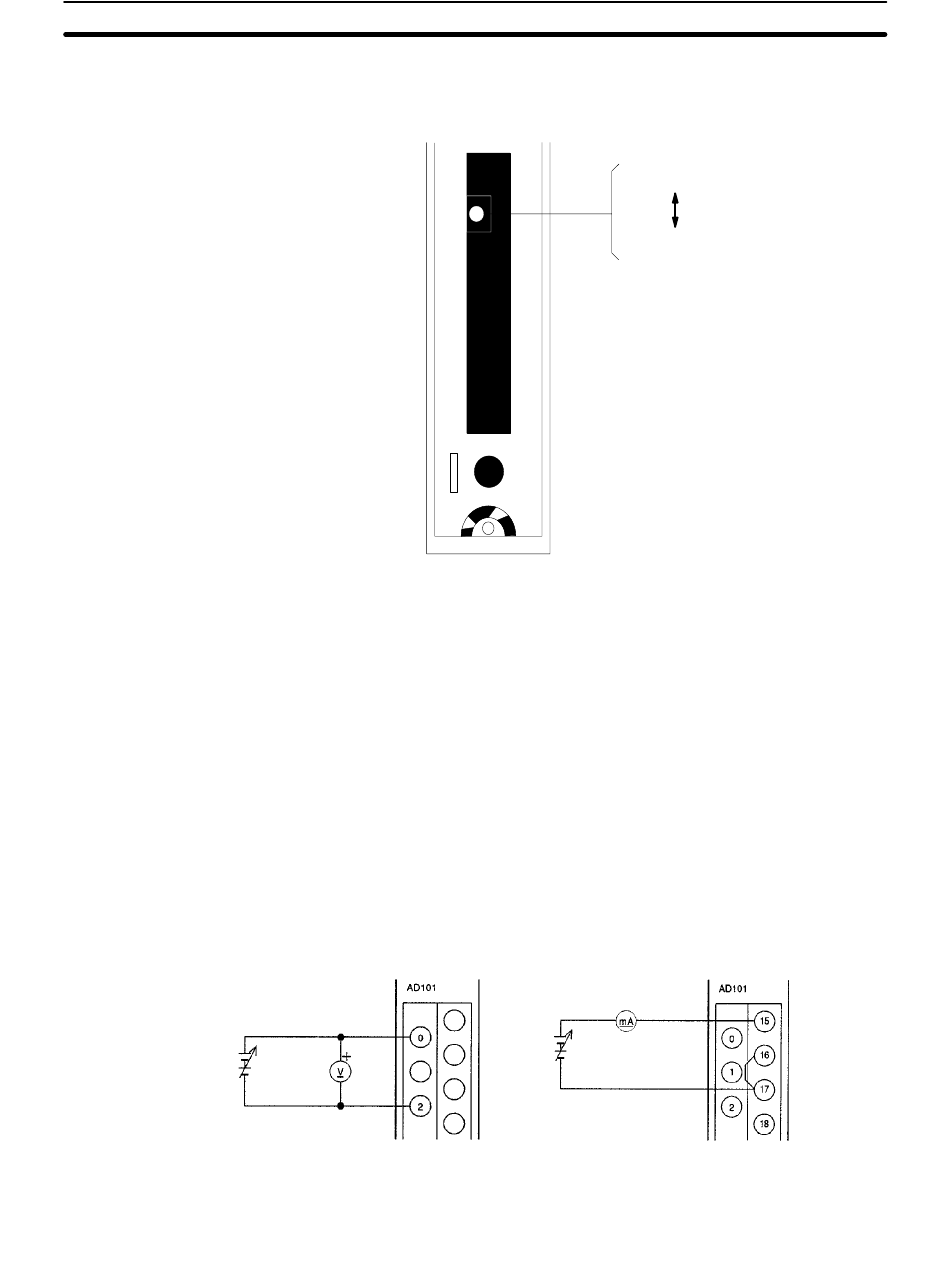

Set this switch before mounting the C500-AD101. This switch setting is read
when the PC's power supply is turned ON.
The procedure for setting the type and range of the input signals at each input
point is described below. Each point is set to an offset (minimum) of 1 V (4 mA)
and a gain (maximum) of 5 V (20 mA). Use the following procedure to change
these settings if necessary.
1. A DC power supply and measuring instruments are required for this setting,
as follows:
Voltage Input:
Current Input:
2. Mount the C500-AD101 and connect the DC power supply and meter. Each
input point can be independently set for voltage input or current input.
3. Turn ON the PC.
The PC power supply must be ON when the input ranges are set.
Four-word operation
Two-word operation
Back of Unit
0 to 10 VDC power supply and DC voltmeter
0 to 20 mA power supply and DC ammeter
Example 2: Setting Input 5 as 0 to 10 mA Input
0 to
20 mA
DC
Short 16 and 17.
Section 4-2
