Omron SYSMAC C Series Operation Manual page 143

Specifications and General Information

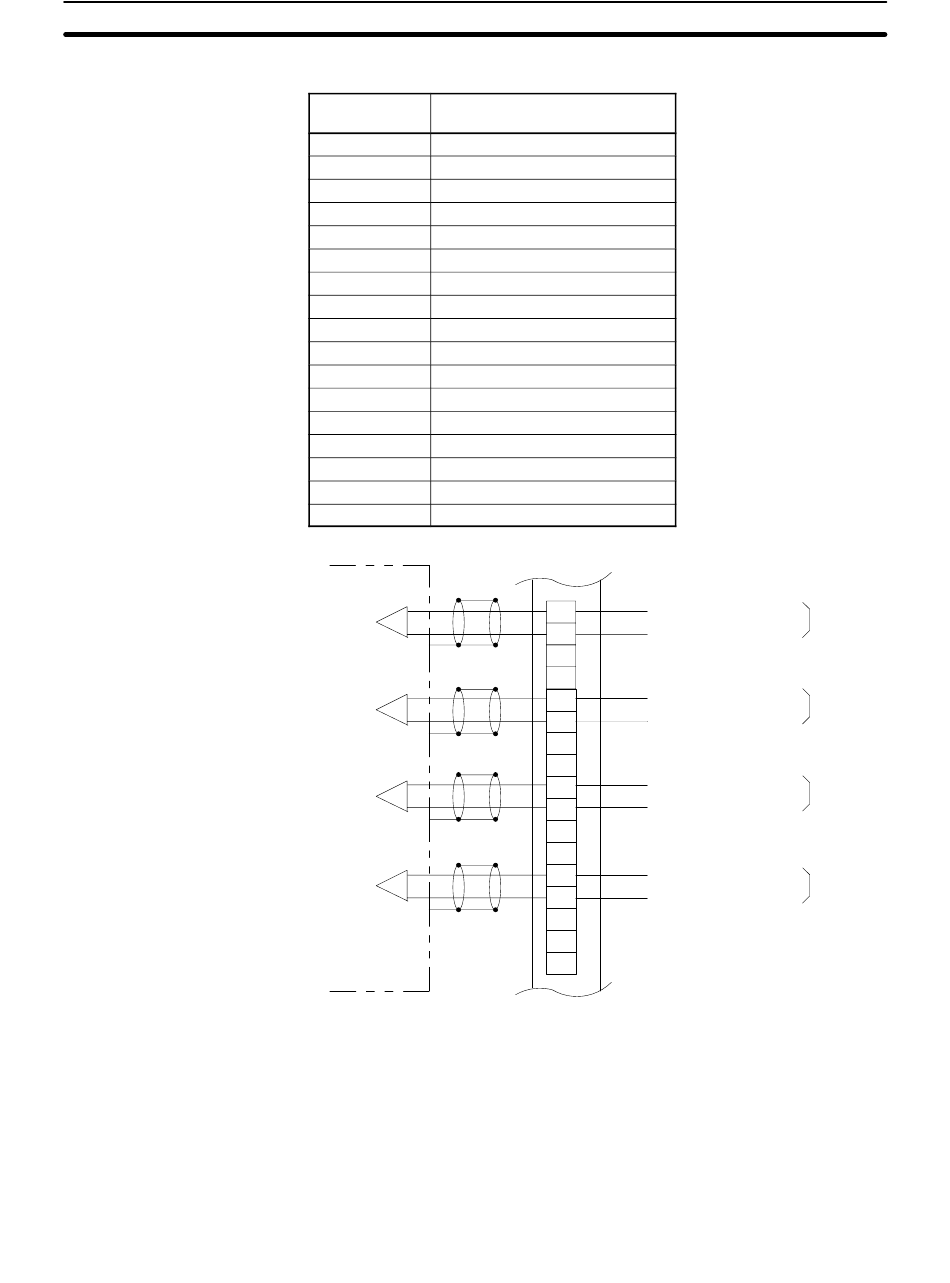

8-1-4 Wiring
Terminal Allocations
Voltage Outputs
Precautions
1, 2, 3...
Terminal
Number
0 +Voltage output for point 1
1 –Voltage output for point 1
2 Not used
3 Not used
4 +Voltage output for point 2
5 –Voltage output for point 2
6 Not used
7 Not used
8 +Voltage output for point 3
9 –Voltage output for point 3
10 Not used
11 Not used
12 +Voltage output for point 4
13 –Voltage output for point 4
14 Not used
15 Not used
16 Not used
Load Unit
+
–
+
–
+
–
+
–
Shielded twisted-pair cable
1. Use shielded twisted-pair cable for external connections to prevent induc-
tion and noise.
2. Ground shields to the Load Unit.
3. Consider the Load Unit impedance to ensure that the current does not ex-
ceed the prescribed limit.
4. Pass the output wires through a different duct from the high-voltage and
power cables.
Description
0
+Voltage output 1
1 –Voltage output 1 (0 V)
2
3
4 +Voltage output 2
–Voltage output 2 (0 V)
5
6
7
+Voltage output 3
8
–Voltage output 3 (0 V)
9
10
11
12
+Voltage output 4
13
–Voltage output 4 (0 V)
14
15
16
Section 8-1
Point 1
Point 2
Point 3
Point 4
131
