Two-word Operation
(From previous page.)
07103
07104
07105
07106
07107
07108
00008 00108
00009 00109
00010 00110
00011 00111
00012 00112
00013 00113
00014 00114
00015 00115

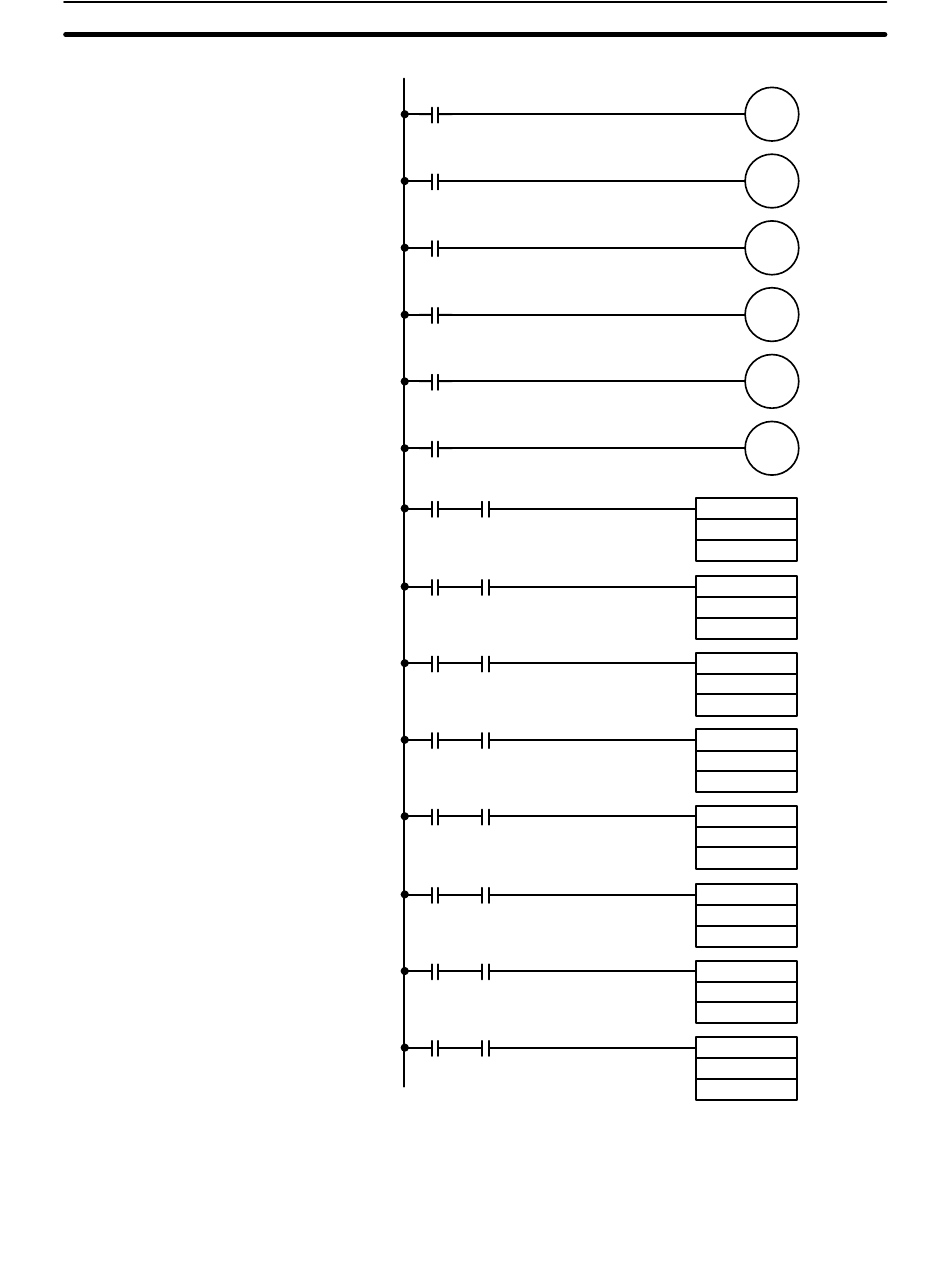

IR 0033 is used for peak values. IR 00008 through IR 00015 are used to activate
the moving of the peak values into the desired storage locations. Turn ON the
Peak Read Bits and check the Peak Flags to read the peak values (see above).
IR 00007 is used as the Peak Reset Flag. Turn ON both the Peak Reset Bit and
the Peak Read Bit to reset a peak value.
Section 4-3
00011
00012
00013
00014
00015
00007
MOV(21)
DM0100
DM0200
MOV(21)
DM0101
DM0201
MOV(21)
DM0102
DM0202
MOV(21)
DM0103
DM0203
MOV(21)
DM0104
DM0204
MOV(21)
DM0105
DM0205
MOV(21)
DM0106
DM0206
MOV(21)
DM0107
DM0207
