C8051F340/1/2/3/4/5/6/7/8/9/A/B/C/D

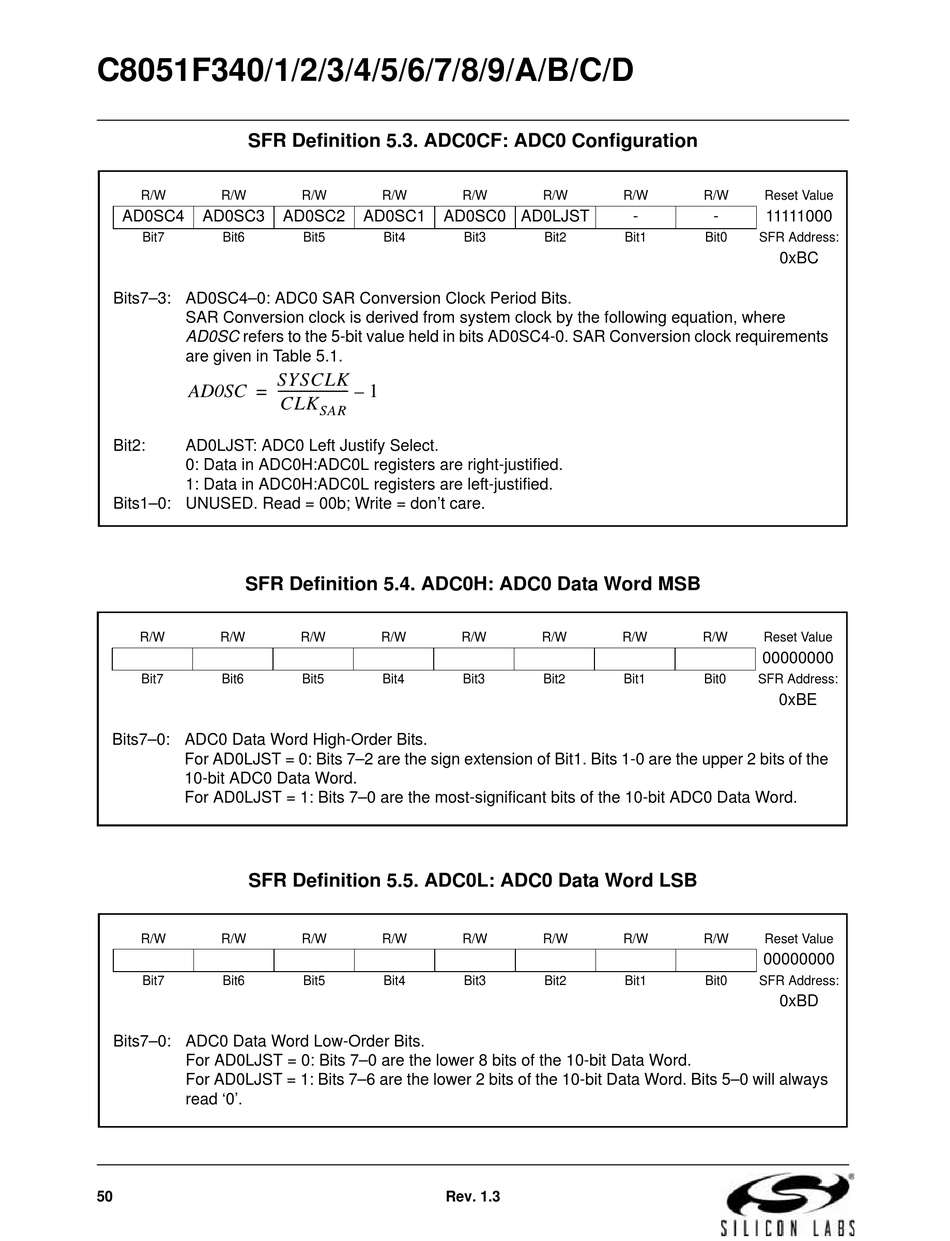

SFR Definition 5.3. ADC0CF: ADC0 Configuration

R/W R/W
AD0SC4 AD0SC3
Bit7 Bit6
Bits7–3: AD0SC4–0: ADC0 SAR Conversion Clock Period Bits.
SAR Conversion clock is derived from system clock by the following equation, where
AD0SC refers to the 5-bit value held in bits AD0SC4-0. SAR Conversion clock requirements
are given in Table 5.1.
AD0SC =
Bit2: AD0LJST: ADC0 Left Justify Select.
0: Data in ADC0H:ADC0L registers are right-justified.
1: Data in ADC0H:ADC0L registers are left-justified.
Bits1–0: UNUSED. Read = 00b; Write = don't care.

SFR Definition 5.4. ADC0H: ADC0 Data Word MSB

R/W R/W
Bit7 Bit6
Bits7–0: ADC0 Data Word High-Order Bits.
For AD0LJST = 0: Bits 7–2 are the sign extension of Bit1. Bits 1-0 are the upper 2 bits of the
10-bit ADC0 Data Word.
For AD0LJST = 1: Bits 7–0 are the most-significant bits of the 10-bit ADC0 Data Word.

SFR Definition 5.5. ADC0L: ADC0 Data Word LSB

R/W R/W
Bit7 Bit6
Bits7–0: ADC0 Data Word Low-Order Bits.
For AD0LJST = 0: Bits 7–0 are the lower 8 bits of the 10-bit Data Word.
For AD0LJST = 1: Bits 7–6 are the lower 2 bits of the 10-bit Data Word. Bits 5–0 will always
read '0'.
50
R/W R/W
AD0SC2 AD0SC1 AD0SC0 AD0LJST
Bit5 Bit4
SYSCLK
--------------------- - 1
–
CLK
SAR
R/W R/W
Bit5 Bit4
R/W R/W
Bit5 Bit4
Rev. 1.3
R/W R/W R/W
-
Bit3 Bit2 Bit1
R/W R/W R/W
Bit3 Bit2 Bit1
R/W R/W R/W
Bit3 Bit2 Bit1
R/W Reset Value
- 11111000
Bit0 SFR Address:
0xBC
R/W Reset Value
00000000
Bit0 SFR Address:
0xBE
R/W Reset Value
00000000
Bit0 SFR Address:
0xBD
