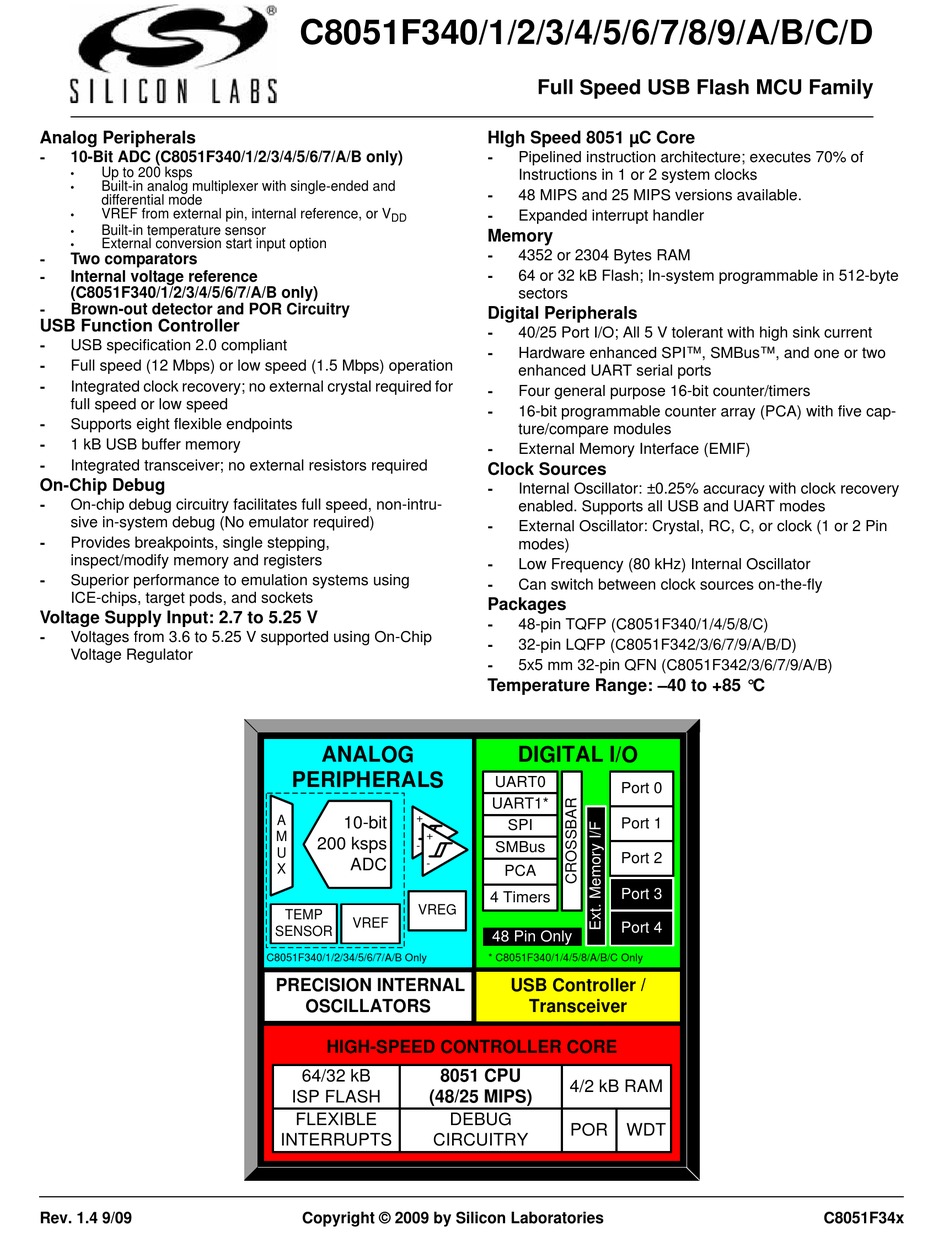

Analog Peripherals
-
10-Bit ADC (C8051F340/1/2/3/4/5/6/7/A/B only)
Up to 200 ksps
•
Built-in analog multiplexer with single-ended and
•
differential mode
VREF from external pin, internal reference, or V
•
Built-in temperature sensor
•
External conversion start input option
•
-
Two comparators
-
Internal voltage reference
(C8051F340/1/2/3/4/5/6/7/A/B only)
-
Brown-out detector and POR Circuitry
USB Function Controller
-
USB specification 2.0 compliant
-
Full speed (12 Mbps) or low speed (1.5 Mbps) operation
-
Integrated clock recovery; no external crystal required for
full speed or low speed
-
Supports eight flexible endpoints
-
1 kB USB buffer memory
-
Integrated transceiver; no external resistors required
On-Chip Debug
-
On-chip debug circuitry facilitates full speed, non-intru-
sive in-system debug (No emulator required)
Provides breakpoints, single stepping,
-
inspect/modify memory and registers
-
Superior performance to emulation systems using
ICE-chips, target pods, and sockets
Voltage Supply Input: 2.7 to 5.25 V
Voltages from 3.6 to 5.25 V supported using On-Chip
-
Voltage Regulator
Rev. 1.4 9/09
C8051F340/1/2/3/4/5/6/7/8/9/A/B/C/D
DD
ANALOG
PERIPHERALS
+
A
10-bit
+
M
200 ksps
-
U
ADC
-
X
VREG
TEMP
VREF
SENSOR
C8051F340/1/2/34/5/6/7/A/B Only
PRECISION INTERNAL
OSCILLATORS
HIGH-SPEED CONTROLLER CORE
64/32 kB
8051 CPU
ISP FLASH
(48/25 MIPS)
FLEXIBLE
INTERRUPTS
CIRCUITRY
Copyright © 2009 by Silicon Laboratories
Full Speed USB Flash MCU Family
HIgh Speed 8051 µC Core
-
Pipelined instruction architecture; executes 70% of
Instructions in 1 or 2 system clocks
-
48 MIPS and 25 MIPS versions available.
-
Expanded interrupt handler
Memory
-
4352 or 2304 Bytes RAM
-
64 or 32 kB Flash; In-system programmable in 512-byte
sectors
Digital Peripherals
-
40/25 Port I/O; All 5 V tolerant with high sink current
-
Hardware enhanced SPI™, SMBus™, and one or two
enhanced UART serial ports
-
Four general purpose 16-bit counter/timers
-
16-bit programmable counter array (PCA) with five cap-
ture/compare modules
-
External Memory Interface (EMIF)
Clock Sources
-
Internal Oscillator: ±0.25% accuracy with clock recovery
enabled. Supports all USB and UART modes
-
External Oscillator: Crystal, RC, C, or clock (1 or 2 Pin
modes)
-
Low Frequency (80 kHz) Internal Oscillator
-
Can switch between clock sources on-the-fly
Packages
-
48-pin TQFP (C8051F340/1/4/5/8/C)
-
32-pin LQFP (C8051F342/3/6/7/9/A/B/D)
-
5x5 mm 32-pin QFN (C8051F342/3/6/7/9/A/B)
Temperature Range: –40 to +85 °C
DIGITAL I/O
UART0
Port 0
UART1*
Port 1
SPI
SMBus
Port 2
PCA
Port 3
4 Timers
Port 4
48 Pin Only
* C8051F340/1/4/5/8/A/B/C Only
USB Controller /
Transceiver
4/2 kB RAM
DEBUG
POR
WDT
C8051F34x
