16.3. USB Register Access

The USB0 controller registers listed in Table 16.2 are accessed through two SFRs: USB0 Address
(USB0ADR) and USB0 Data (USB0DAT). The USB0ADR register selects which USB register is targeted
by reads/writes of the USB0DAT register. See Figure 16.2.
Endpoint control/status registers are accessed by first writing the USB register INDEX with the target end-
point number. Once the target endpoint number is written to the INDEX register, the control/status registers
associated with the target endpoint may be accessed. See the "Indexed Registers" section of Table 16.2
for a list of endpoint control/status registers.
Important Note: The USB clock must be active when accessing USB registers.
8051
SFRs
USB0DAT
USB0ADR

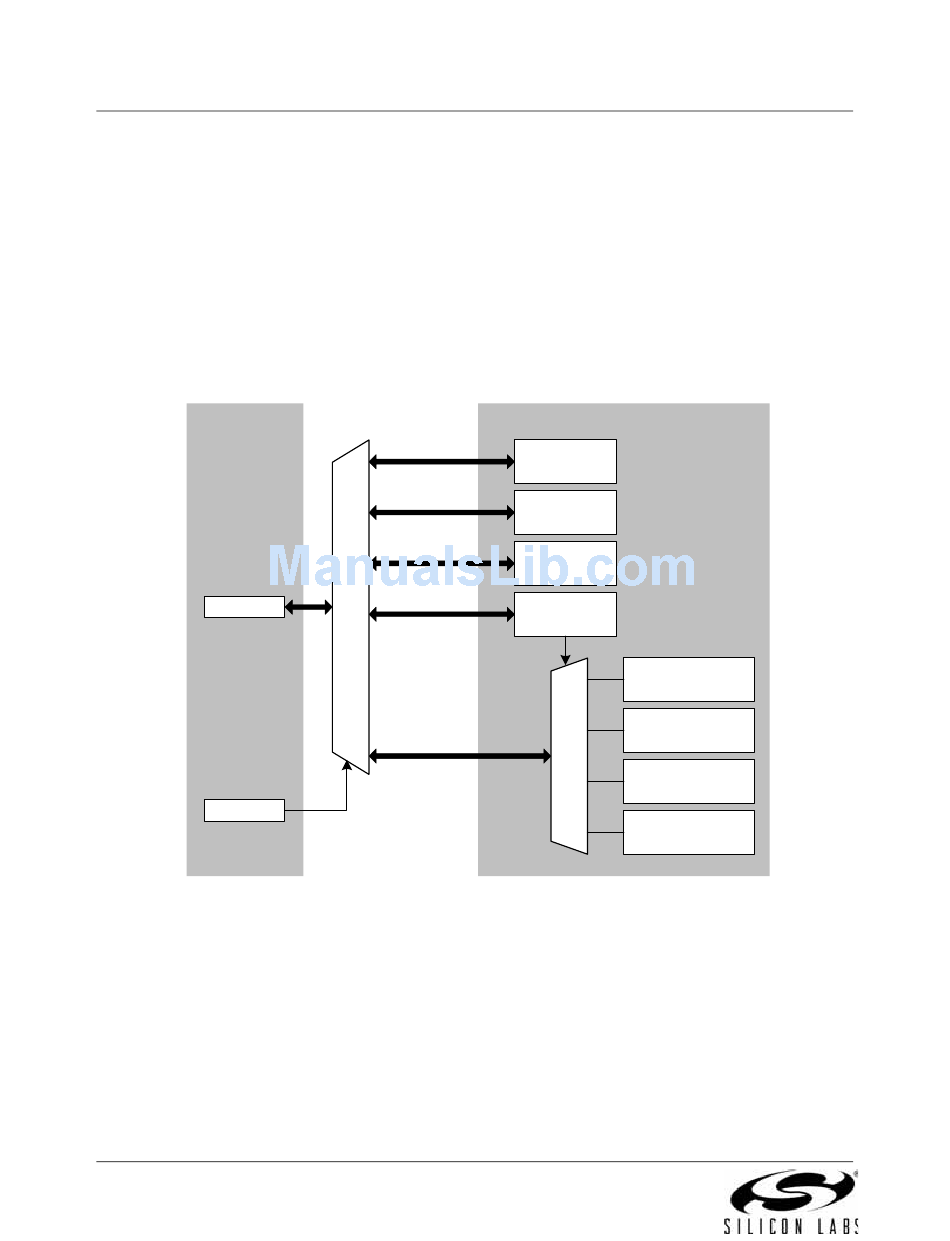

Figure 16.2. USB0 Register Access Scheme

162
USB Controller
Interrupt
Registers
FIFO
Access
Common
Registers
Index
Register
Rev. 1.3
Endpoint0 Control/
Status Registers
Endpoint1 Control/
Status Registers
Endpoint2 Control/
Status Registers
Endpoint3 Control/
Status Registers
