AGC 200 installation instructions
4189340610 UK
5.3.5 Additional operator panel AOP-2 (option X4)
More information on option X4 can be found in "Option X4 Additional Operator Panel AOP-2", document no.
4189340484.

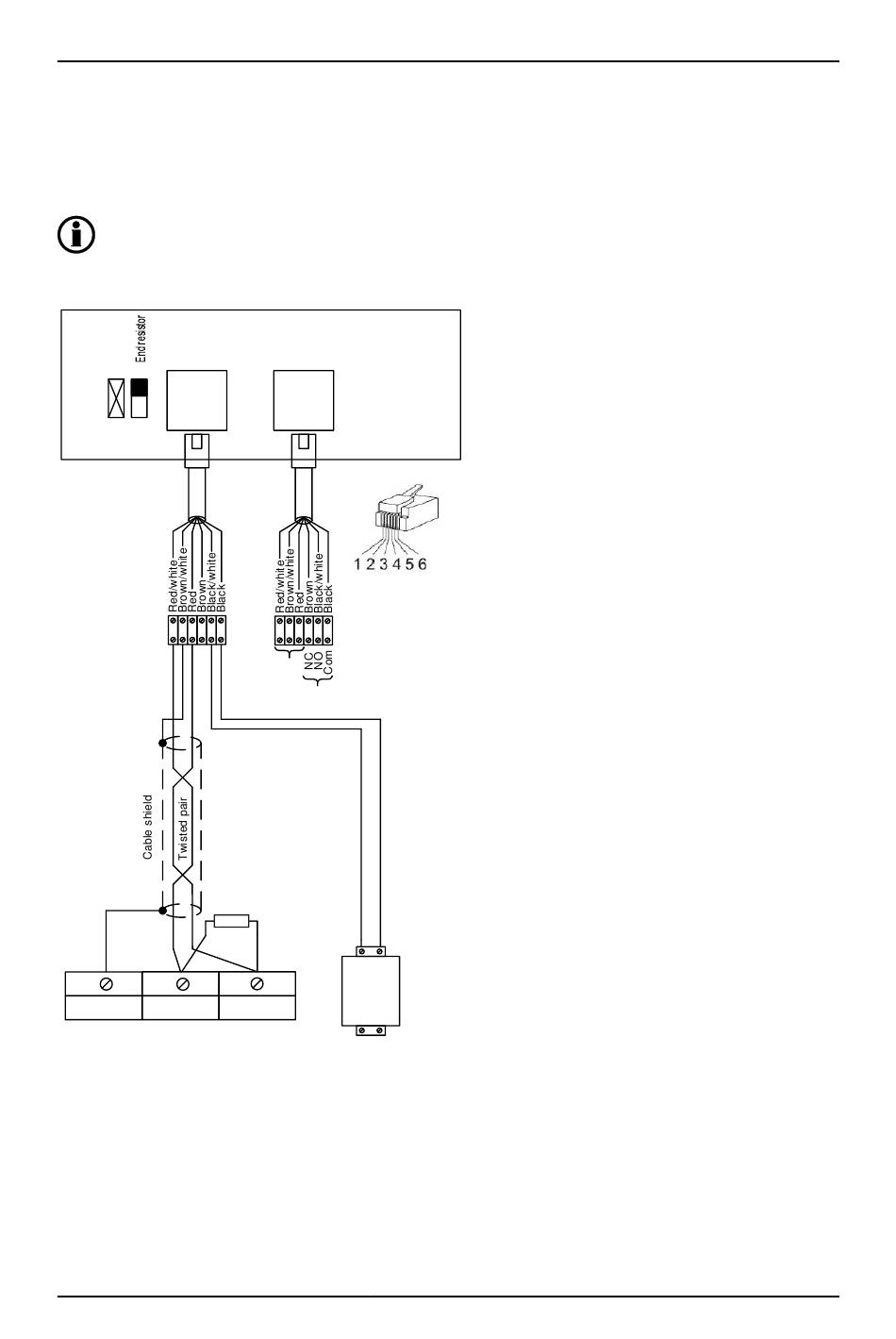

Be aware that two cables can be chosen, and that there is a difference in the colours of the
wires. The diagrams below show how to wire up both cable types.
2
1
OFF
CAN 1
ON
6
5
4
3
2
1
End resisto r
120
CAN H
Gnd
DEIF A/S
CAN 2
6
5
4
3
2
1
Comm. to
other units
Status relay
5V DC
+ -
Output
Input
CAN L
+ -
24V DC
Power
supply
Wirings
Page 60 of 67
