AGC 200 installation instructions
4189340610 UK

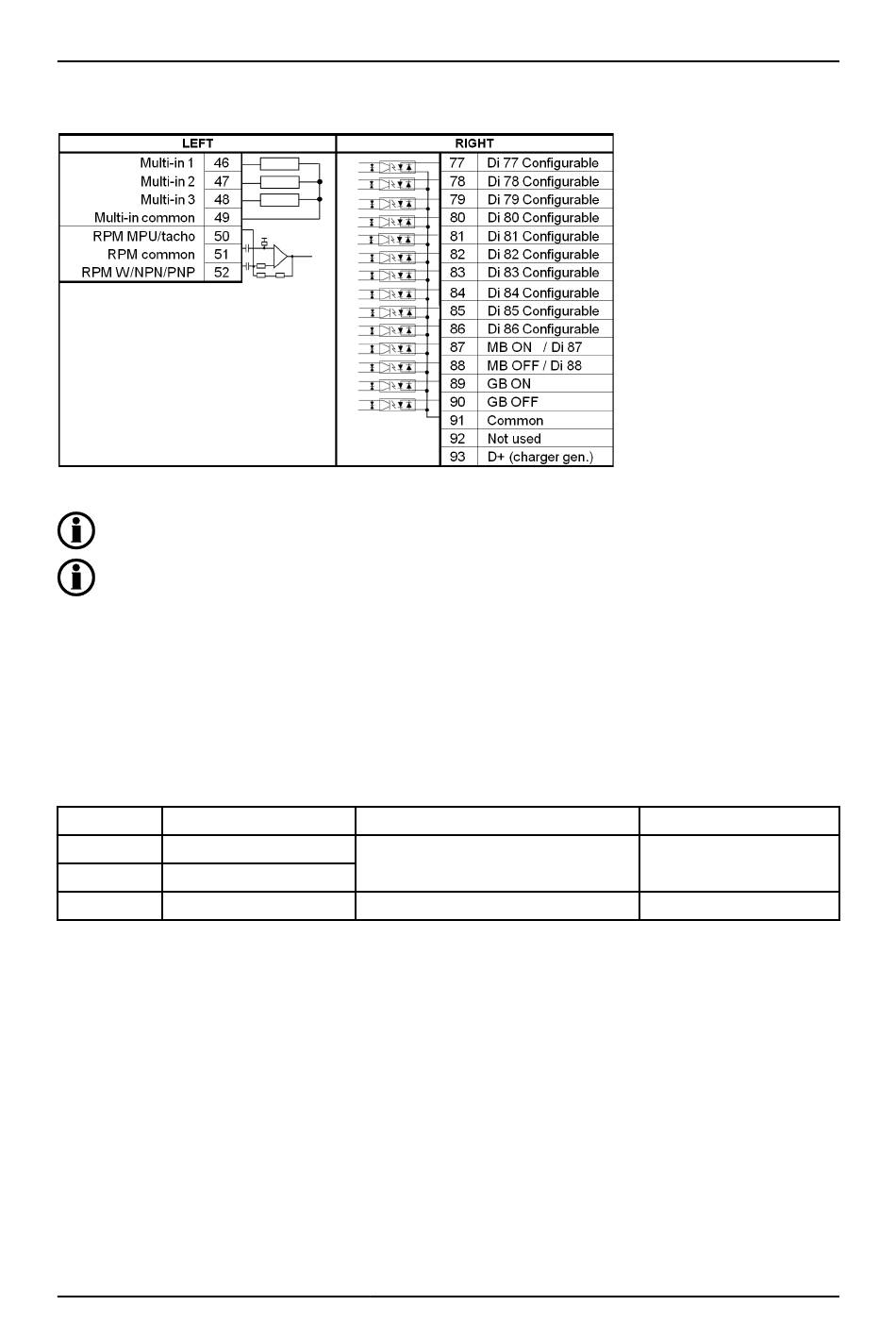

Inputs 87 and 88 are configurable in AGC 244.
The placement of terminals (top, bottom, left, right) is seen from the rear side of the unit.
Input/output lists
In the I/O lists below, the following terms will be used in connection with the relay outputs:
NO means Normally Open
NC means Normally Closed
Com. means common terminal
Plug #1, power supply
Term. Function
1 +12/24 V DC
2 0 V DC
3
DEIF A/S
Technical data
12/24 V DC +/-30 %
Not used
Hardware
Description
Power supply
