AGC 200 installation instructions
4189340610 UK

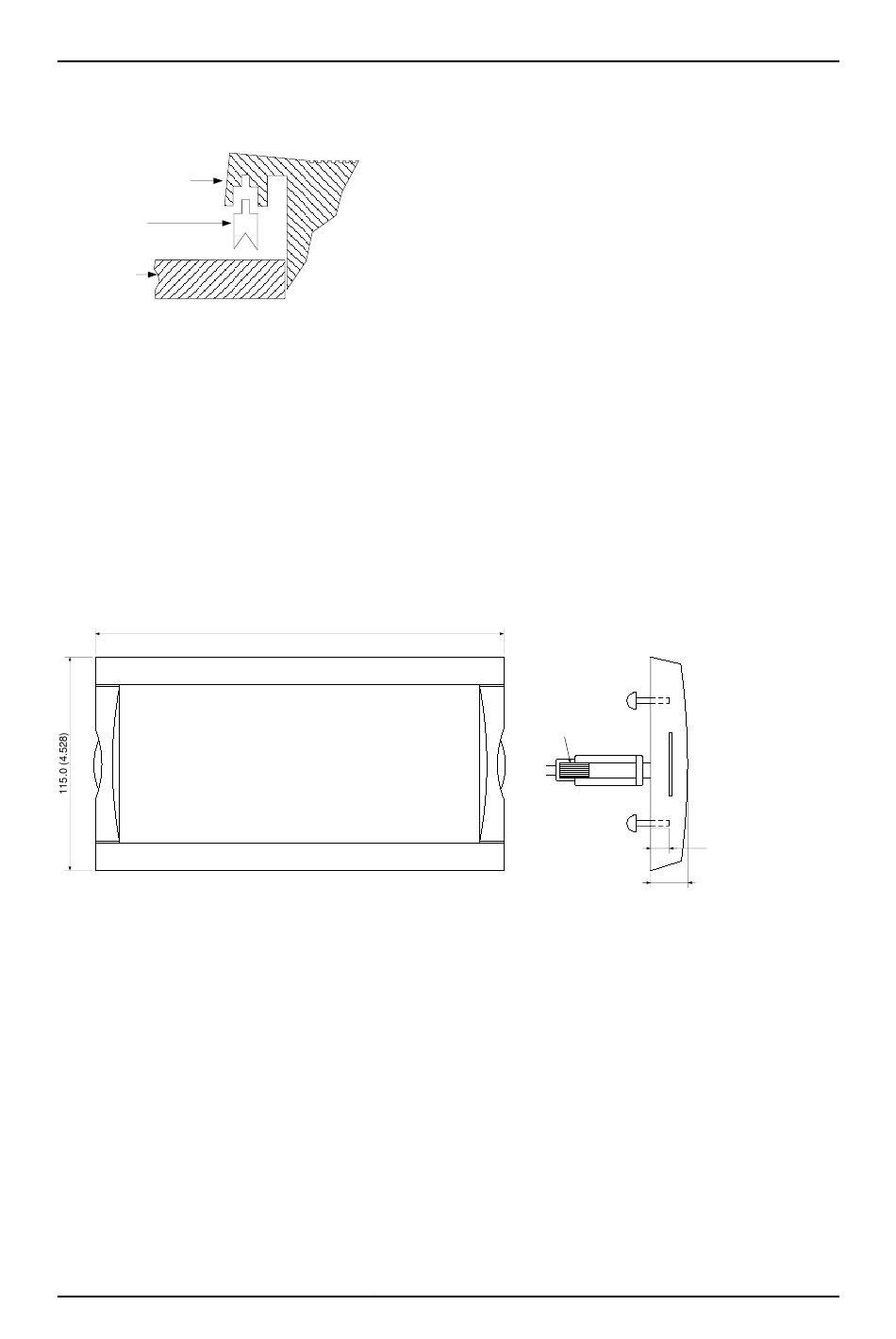

Mount the gasket as shown in the illustration below.
AGC 200 housing
Gasket
Panel door
Furthermore, it is necessary to use all 12 screw clamps to ensure IP65 tightness.

3.1.6 Tightening torques

Unit panel door mounting:
Plug connections (terminals):
Display, AOP-1 and AOP-2 (see diagram below)
Panel door mounting:
Sub-D screw:
DC-DC converter terminals:
DEIF A/S
0.15-0.20 Nm, 1.4-1.8 lb-in
0.5 Nm, 4.4 lb-in
0.7 Nm, 6.2 lb-in
0.2 Nm, 1.8 lb-in
0.5 Nm, 4.4 lb-in
220.0 (8.661)
Display
0.2 Nm
9P Female
Sub 0
connector
0.7 Nm
Screw M3
Bossard BN5687
or similar
Mounting
Max. 10 mm
Min. 6 mm
20.0 (0.787)
