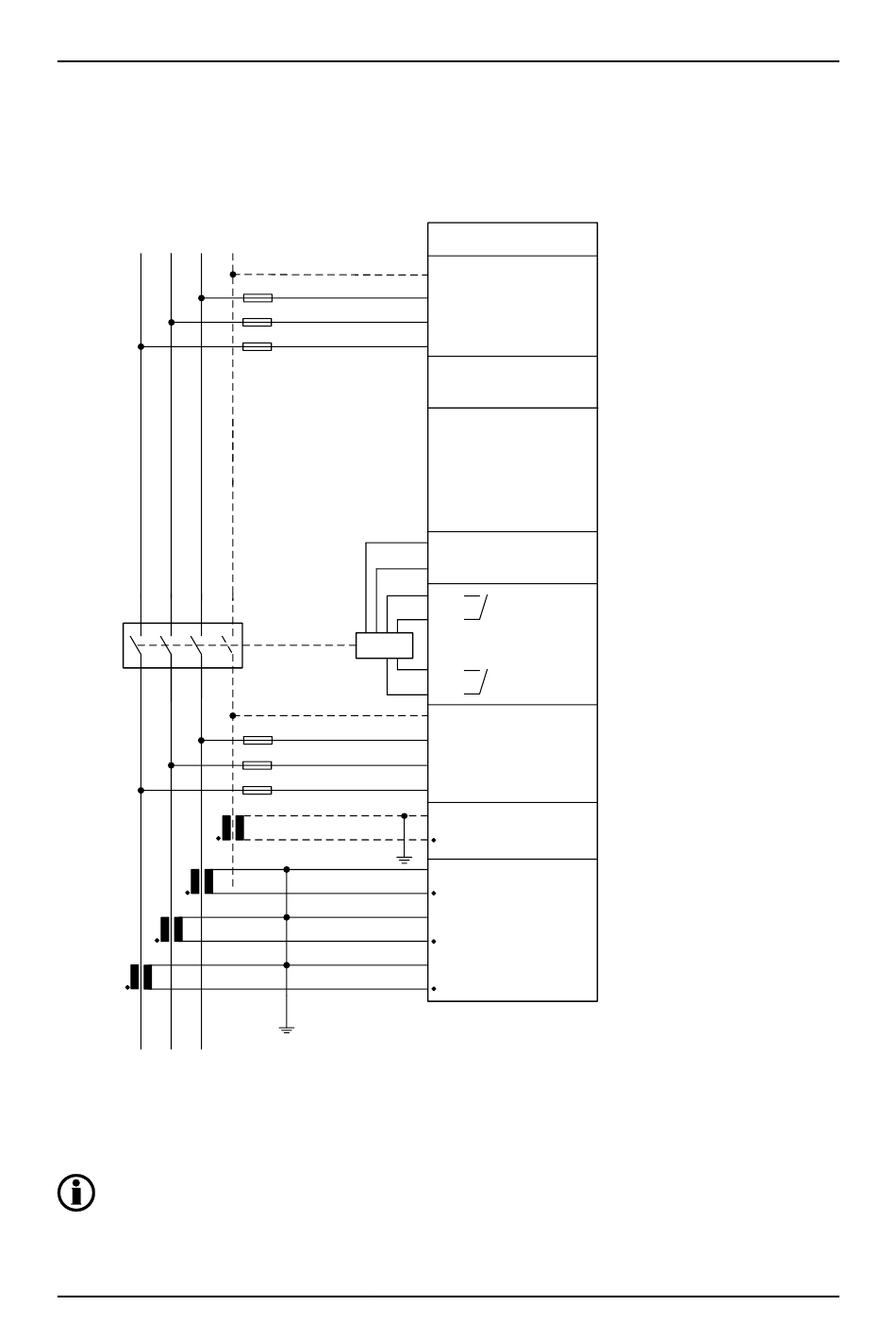

5.1.13 Power management AGC 244 BTB

BUSBAR B
L1 L2 L3
BTB
P2
P1
P2 s2
s1
P1
s2
P2
s1
P1
s2
P2
P1 s1
BUSBAR A
Wiring indicated with dashed line is optional.
DEIF A/S
N
s2
s1
AGC 200
74 N
72 U
BUSBAR B
L3
VOLTAGE
70 U
L2
68 U
L1
90 BTB OFF
BTB
FEEDBACK
BTB ON
89
45
BTB OFF
44
BTB
CONTROL
42
BTB ON
41
67
N
U BUSBAR A
65
L3
VOLTAGE
U
63
L2
U
61
L1
60
CONFIGURABLE
I4
CURRENT
59
58
I3
57
56
BUSBAR A
I2
CURRENT
55
54
I1
53
Wirings
