AGC 200 installation instructions
4189340610 UK
3. RMI oil
4. RMI water
5. RMI fuel
6. Digital
See the following sub-chapters for installation instructions for these input types. For further information re-
garding multi-inputs, see the "Designer's Reference Handbook".

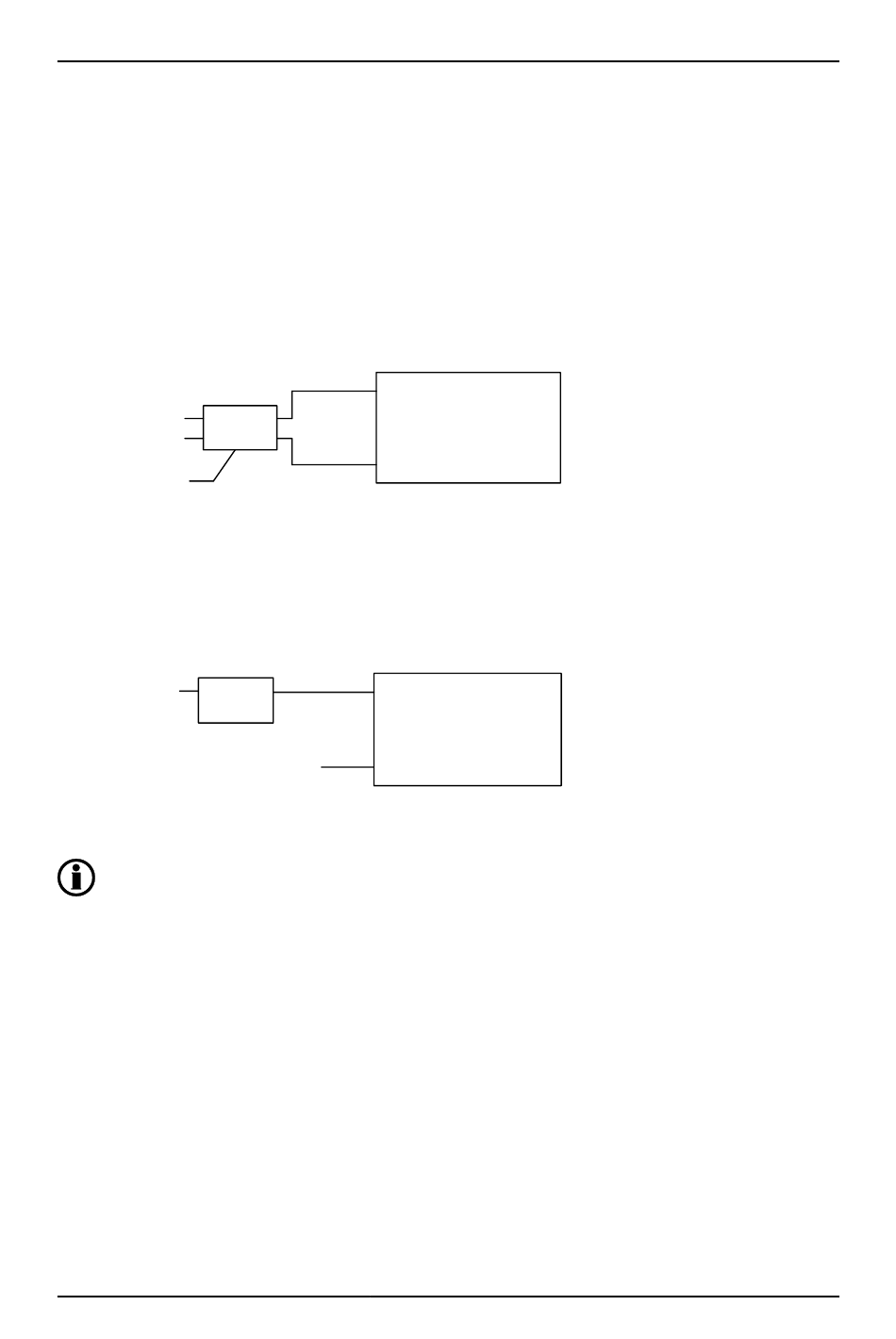

5.2.3 Active transmitter

4-20 mA
transmitter
+12/24V DC +
-
0V DC
Measurement

5.2.4 2-wire transmitter

4-20 mA
transmitter
+12/24V DC +
If the 2-wire transmitter has its own battery supply, the voltage must not exceed 30 V DC.
DEIF A/S
46
+
Multi-input 1
-
49 (common)
-
46
Multi-input 1
0V DC 49 (common)
Wirings
Page 51 of 67
