AGC 200 installation instructions
4189340610 UK
1-phase and 2-phase systems are also supported.
The application shown is for pulse breakers.
Be aware that the inputs for feedbacks shown above also need a common wire on terminal 91.
(Terminal 91 is common for 77 to 90).

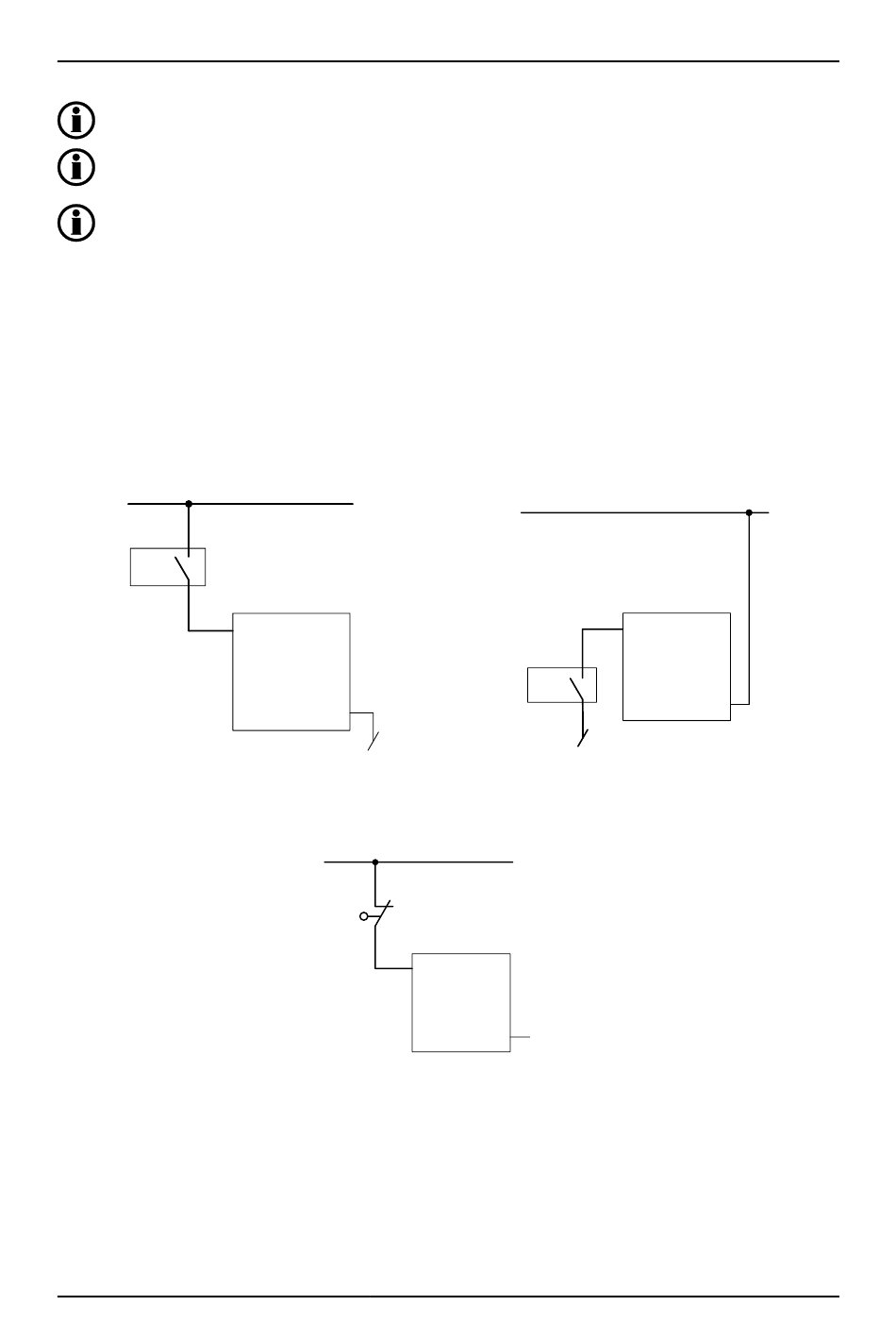

5.2 DC connections

5.2.1 Digital inputs

Battery positive to input:
Positive to input
12/24V DC
Switch

5.2.2 Multi-inputs

The AGC 200 unit has three multi-inputs, which can be configured to be used as the following input types:
1. 4 to 20 mA
2. Pt100
DEIF A/S
77
91 (COM.)
Emergency stop:
Emergency stop
12/24V DC
Battery negative to input:
Negative to input
12/24V DC
Switch
25
2 (-) 0V DC
Wirings
77
91 (COM.)
Page 50 of 67
