ADSP-21367/ADSP-21368/ADSP-21369
Table 12. Clock Periods
Timing
Requirements Description
t CLKIN Clock Period
CK
t (Processor) Core Clock Period
CCLK
t (Peripheral) Clock Period = 2 × t
PCLK
t Serial Port Clock Period = (t
SCLK
t SDRAM Clock Period = (t
SDCLK
t SPI Clock Period = (t
SPICLK
1
where:
SR = serial port-to-core clock ratio (wide range, determined by SPORT CLKDIV
bits in DIVx register)
SPIR = SPI-to-core clock ratio (wide range, determined by SPIBAUD register
setting)
SPICLK = SPI clock
SDR = SDRAM-to-core clock ratio (values determined by Bits 20–18 of the
PMCTL register)
Figure 4 shows core to CLKIN relationships with external oscil-
lator or crystal. The shaded divider/multiplier blocks denote
where clock ratios can be set through hardware or software
using the power management control register (PMCTL). For
more information, see the ADSP-21368 SHARC Processor Hard-
ware Reference and Managing the Core PLL on Third-
Generation SHARC Processors (EE-290).
Use the exact timing information given. Do not attempt to
derive parameters from the addition or subtraction of others.
While addition or subtraction would yield meaningful results
for an individual device, the values given in this data sheet
CLKIN
CLKIN
DIVIDER
XTAL
BUF
PMCTL
DELAY OF
RESET
4096 CLKIN
CYCLES
1
CCLK
) × SR
CCLK
) × SDR
CCLK
) × SPIR
CCLK
PLL
PLLI
CLK
LOOP
VCO
FILTER
PLL
MULTIPLIER
CLK_CFGx/PMCTL
CLKOUT
RESETOUT

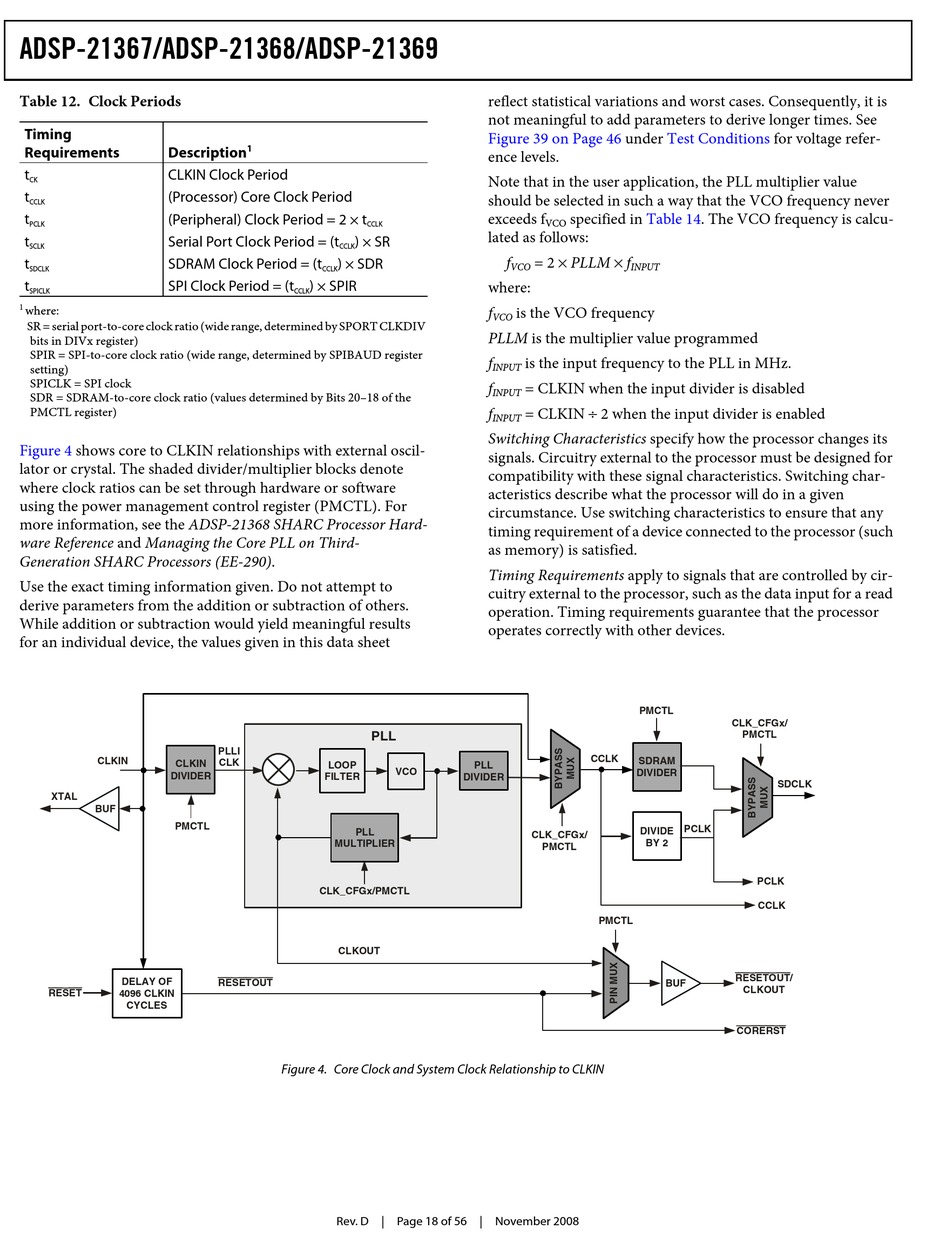

Figure 4. Core Clock and System Clock Relationship to CLKIN
